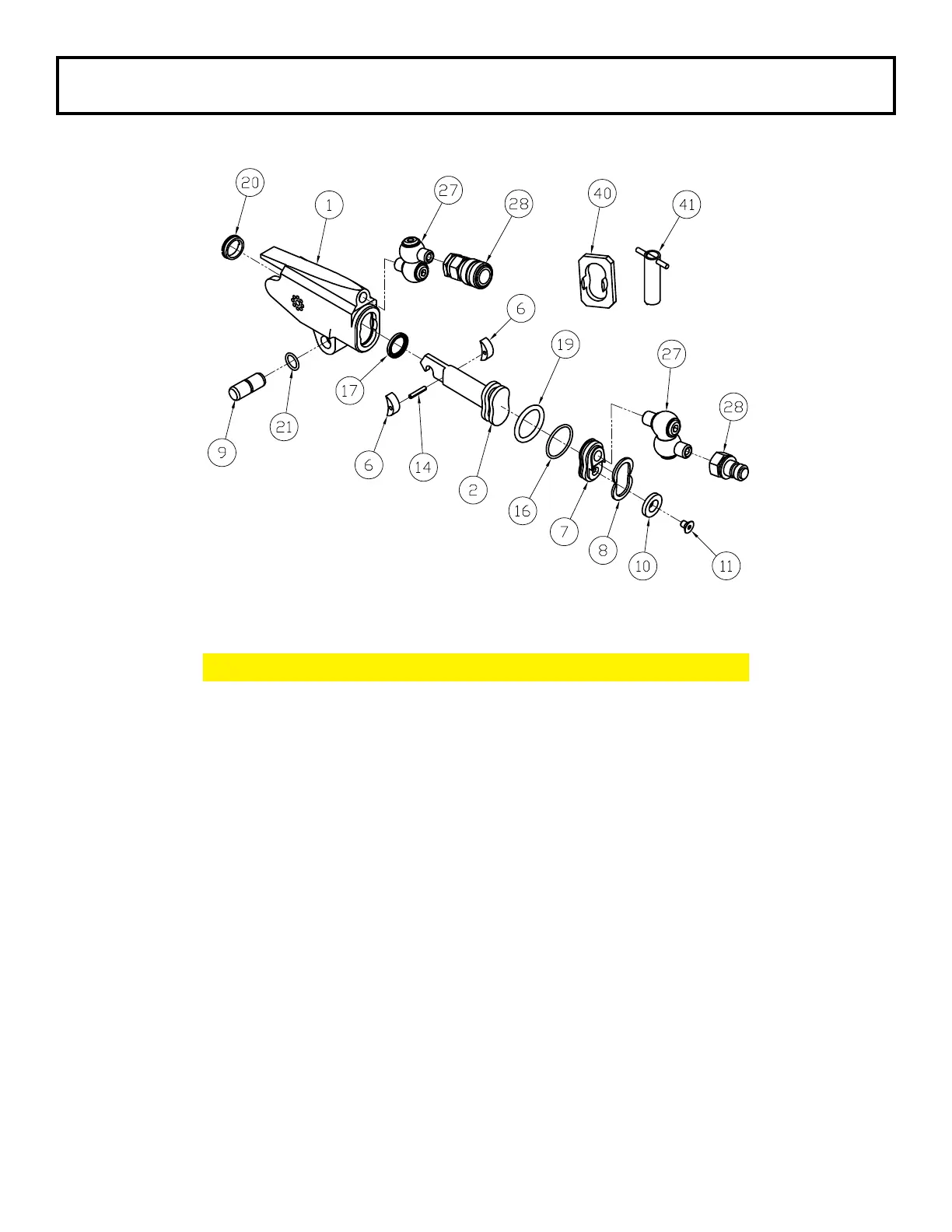

TX-4 Series Cylinder
Part Numbers for Ordering
ITEM NAME PART # QTY.
1 Housing TX-4-C01 1
2 Piston TX-4-C03 1
6 Slider TX-4-C09 2
7 End Cap TX-4-C11 1
8 Retaining Ring TX-4-C13 2
9 Link Pin TX-4-C15 1
10 End Cover TX-4-C17 1
11 End Cover Screw TX-4-C23 1
14 Slider Pin TX-4-C27 1
16 End Plug Seal TX-4-C29 1
17 Rod Seal TX-4-C31 1
19 Piston Seal TX-4-C33 1
20 Cylinder Gland TX-4-C51 1
21 Link Retaining Spring TX-4-C53 1
27 Swivel Assembly STX-4M-4M 2
28 Coupler Set HC-S-100 1
40 Seal Insertion Tool ATX-4-ST
41 Gland Removal Tool ATX-4-GW
