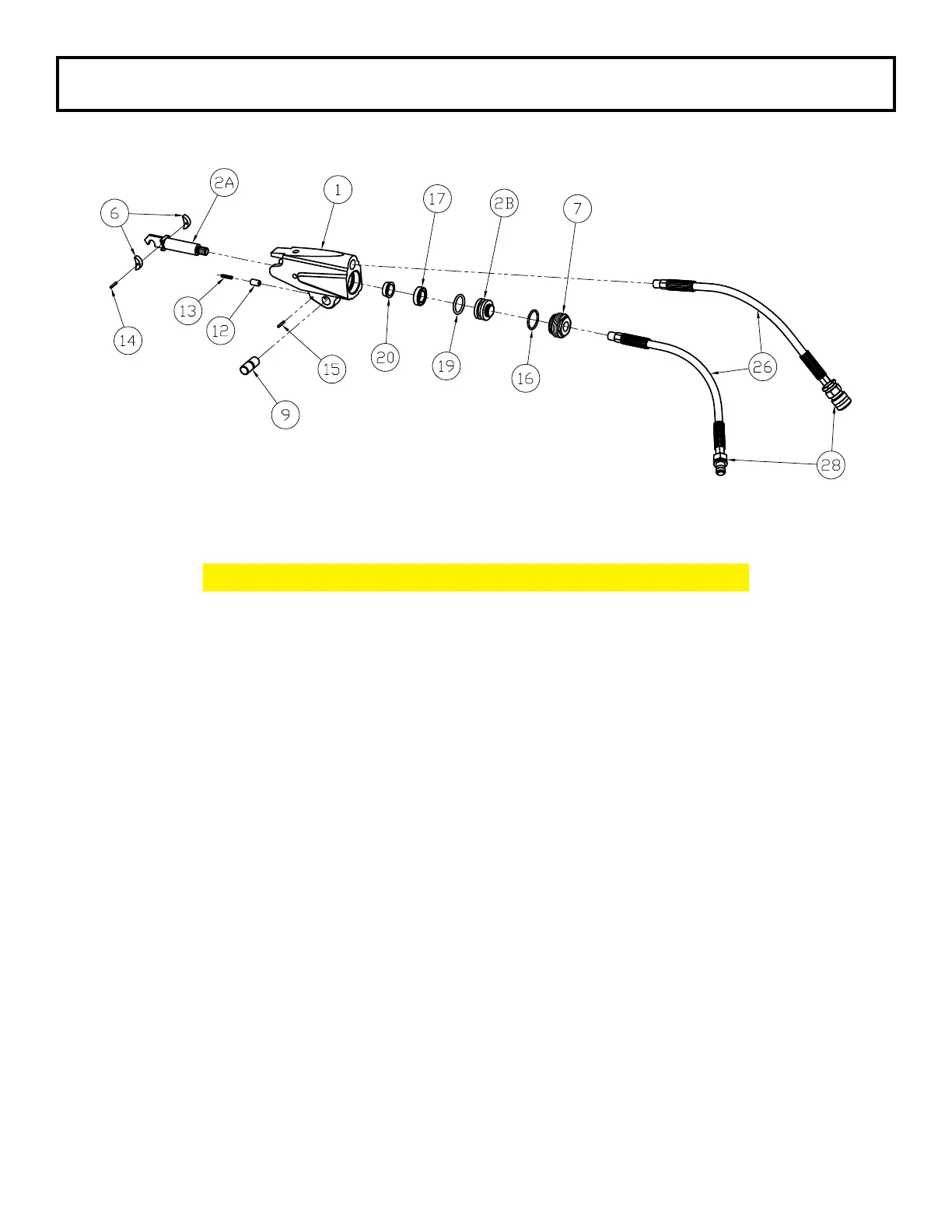

TX-1 Series Cylinder
Part Numbers for Ordering
ITEM NAME PART # QTY.
1 Housing TX-1-C01 1
2A Piston Rod TX-1-C03-1 1
2B Piston Cap TX-1-C03-2 1
6 Slider TX-1-C09 2
7 End Cap TX-1-C11 1
9 Link Pin TX-1-C15 1
12 Plunger TX-1-C25 1
13 Plunger Spring TX-1-C26 1
14 Slider Pin TX-1-C27 1
15 Plunger Pin TX-1-C28 1
16 End Plug Seal TX-1-C29 1
17 Rod Seal TX-1-C31 1
19 Piston Seal TX-1-C33 1
20 Rod Bushing TX-1-C51 1
26 Whip Hose - 16” HPH-16”-1/8 2
28 Coupler Set HC-S-100 1
Piston Assembly (2A & 2B) TX-1-C03
