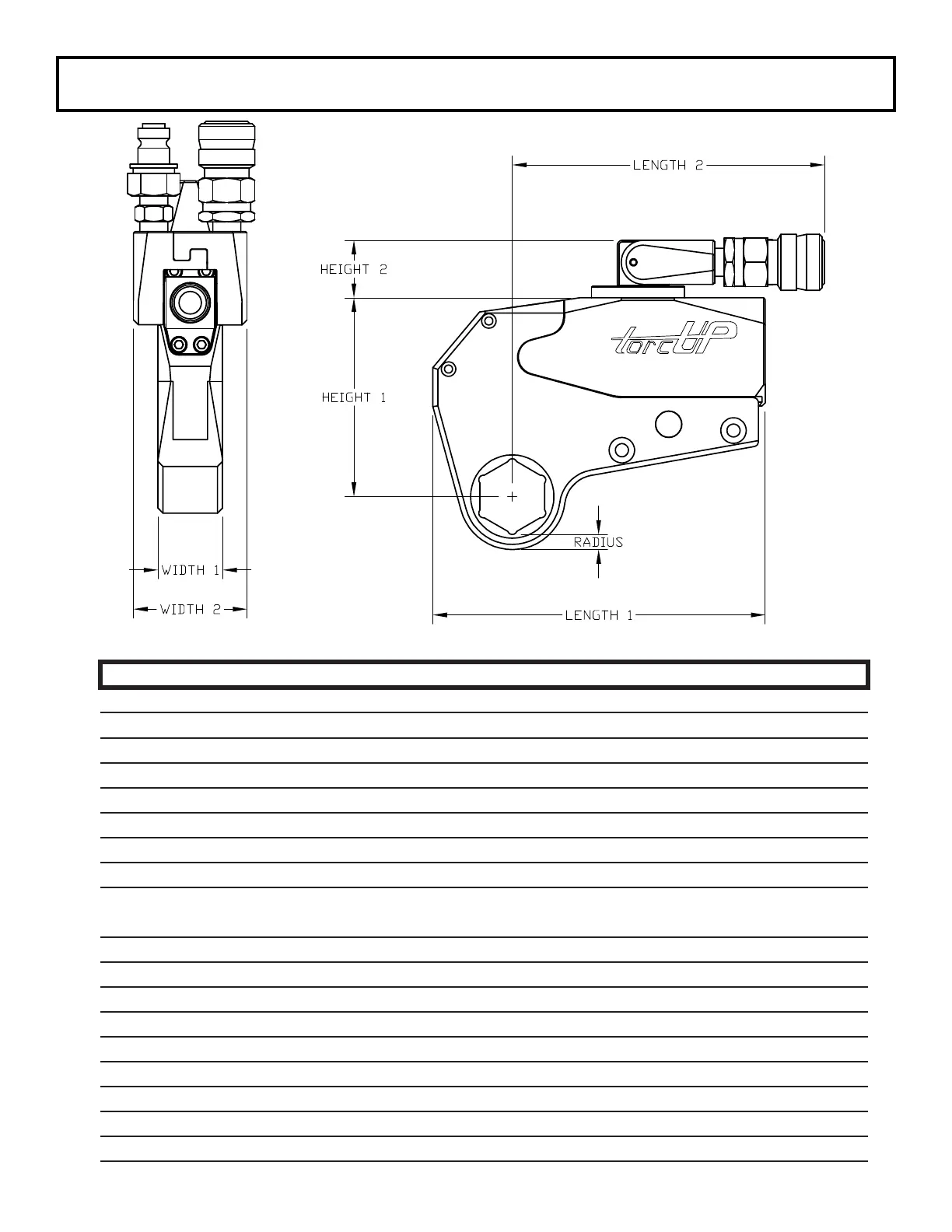

TXU Series Uni-Swivel Wrench Technical & Dimensional Data
Model Number TXU-2 TXU-4 TXU-8 TXU-16
Min. Torque (ft/lbs) 192 395 830 1560
Max. Torque (ft/lbs) 1928 3950 8630 16600
Min. Torque (nm) 260 535 1125 2115
Max. Torque (nm) 2614 5355 11699 22503
Output Accuracy +/-3% +/-3% +/-3% +/-3%
Repeatability 100% 100% 100% 100%
Duty Cycle 100% 100% 100% 100%
Cylinder Weight (lbs/kg) 4.0/1.8 6.9/3.1 12.5/5.7 17.1/7.8
Link Weight
(lbs) 2.4-3.5 5.4-7.6 11.9-14.5 21.0-28.0
(kg) 1.0-1.5 2.4-3.4 5.5-6.5 9.5-13.0
Length 1 (in/mm) 6.45/163.8 7.87/199.9 10.81/258.6 12.93/328.4
Length 2 (in/mm) 5.99/152.4 6.58/167.1 7.34/186.4 8.20/208.2
Width 1 (in/mm) 1.25/31.8 1.63/41.4 2.05/52.1 2.50/63.5
Width 2 (in/mm) 2.19/55.6 2.26/57.4 2.26/57.4 2.26/57.4
Radius (in/mm) 0.36/9.1 0.46/11.7 0.54/13.7 0.65/16.5
Height 1 (in/mm) 3.39/86.3 4.93/125.2 6.18/157 7.83/198.9
Height 2 (in/mm) 1.11/28.2 1.30/33.0 1.30/33.0 1.30/33.0
Hex Range from 3/4”/19mm 1”/27mm 1 7/8”/49mm 2 3/16”/55mm
Hex Range to 2 9/16”/65mm 3 1/8”/80mm 4 5/8”/120mm 5 5/16”/135mm
