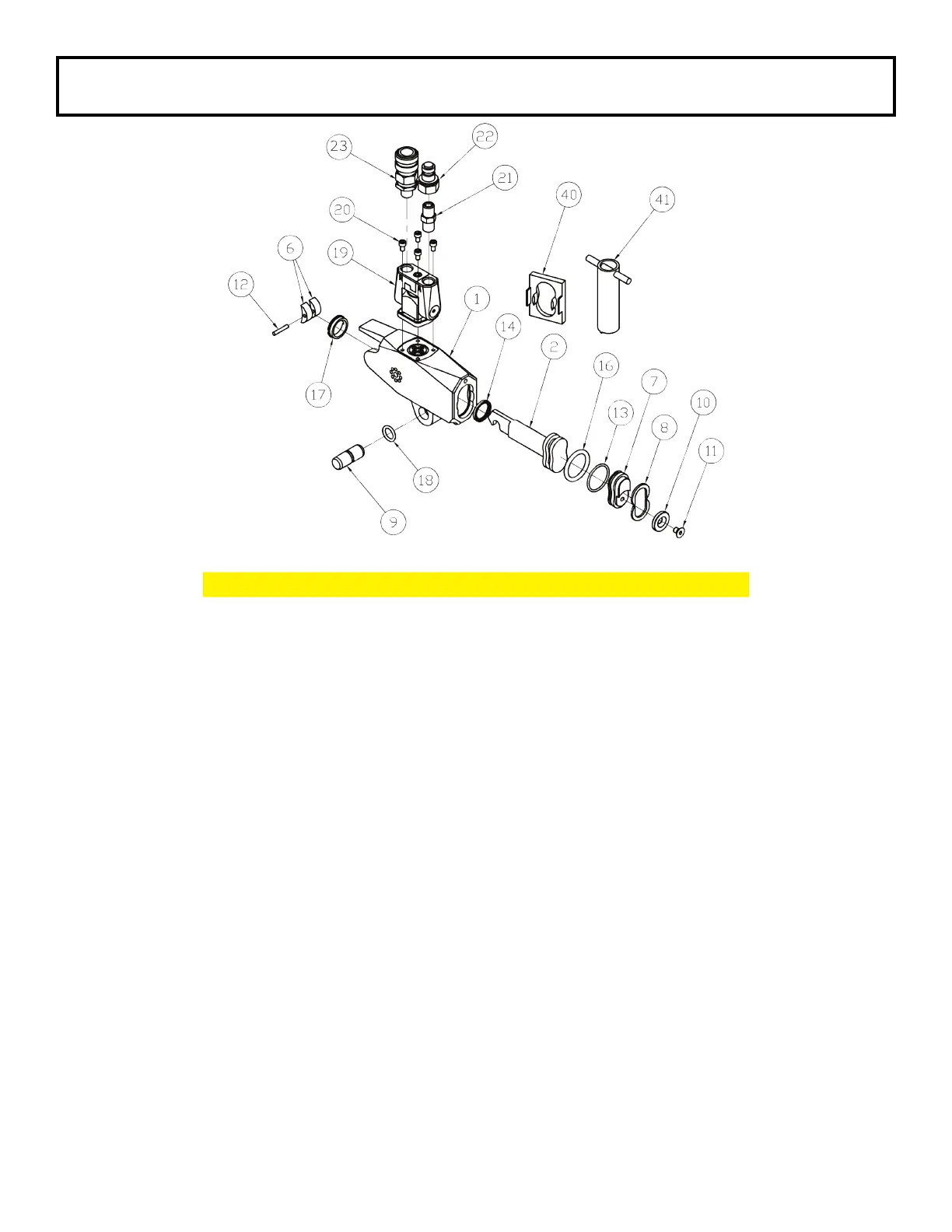

TXU-4 Cylinder Swivel Low Prole Hydraulic Torque Wrench
Part Numbers for Ordering
ITEM NAME PART # QTY.
1 Housing TXU-4-C01 1
2 Piston TX-4-C03 1
6 Slider TX-4-C09 2
7 End Cap TXU-4-C11 1
8 Retaining Ring TX-4-C13 2
9 Link Pin TX-4-C15 1
10 End Cover TXU-4-C17 1
11 End Cover Screw TX-4-C23 1
12 Slider Pin TX-4-C27 1
13 End Plug Seal TX-4-C29 1
14 Rod Seal TX-4-C31 1
16 Piston Seal TX-4-C33 1
17 Cylinder Gland TX-4-C51 1
18 Link Retaining Spring TX-4-C53 1
19 Uniswivel Assembly USL-00 1
20 Uniswivel Post Screw USL-23 4
21 Male 1/4” NPT to Male 1/4” NPT F004004 1
22 Male Coupler HC-M-100 1
23 Female Coupler HC-F-400 1
40 Seal Insertion Tool ATX-4-ST
41 Gland Removal Tool ATX-4-GW
