Tormach 770M Installation Guide

2.1 INSTALLATION
Install the Upper Front Panel
1. Attach the front upper panel (with the threaded holes facing up) to the right and left front panels with two sets of two M5 × 0.8 - 10 screws.

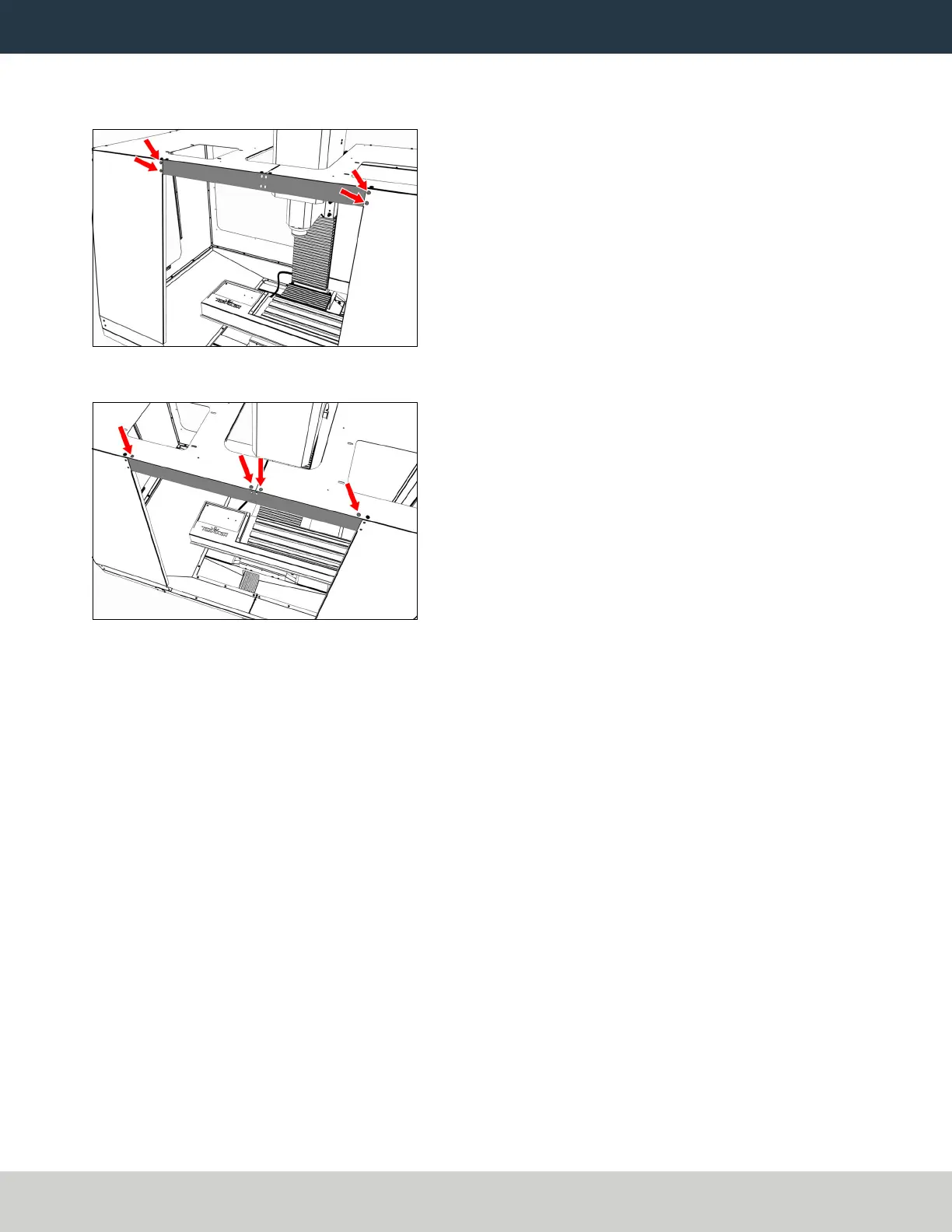

Figure 2-15: Front upper panel attached to the right and left front panels.
2. Attach the front upper panel to the right and left top panels with four M5 × 0.8 - 10 screws.
Figure 2-16: Front upper panel attached to the right and left top panels.
Page 11
©Tormach® 2022
Specifications subject to change without notice.
tormach.com
TD10536: Installation Guide: 770M Enclosure (0522A)
