Tormach 770M Installation Guide

2.1 INSTALLATION
Install the Front Lower Panel
1. Attach the front lower panel to the right and left front panels with two sets of two M5 × 0.8 - 10 screws.

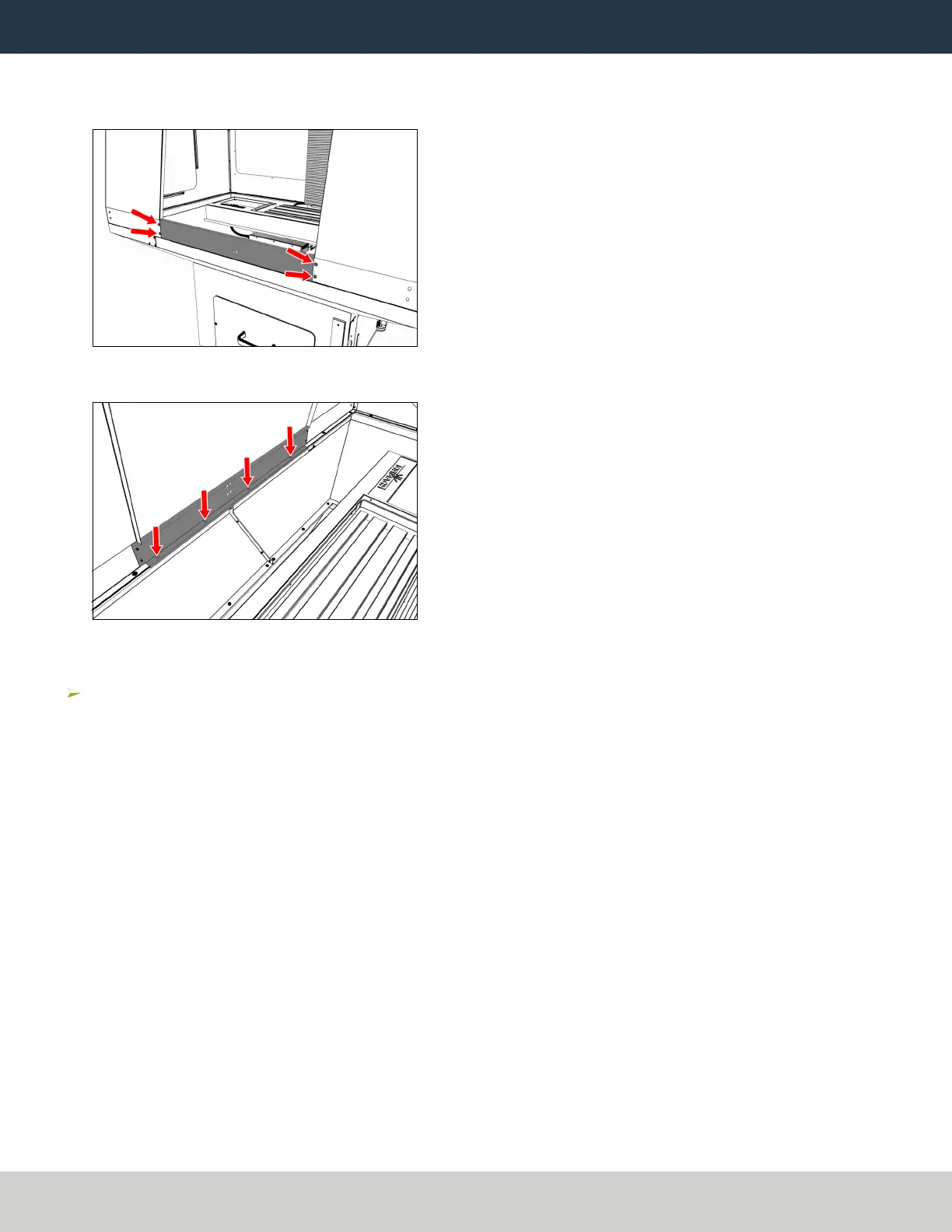

Figure 2-17: Front lower panel attached to the right and left front panels.
2. Attach the front lower panel to the right and left chip pans with four M5 × 0.8 - 10 screws.
Figure 2-18: Front lower panel attached to the right and left chip pans.
Install the Rear Splash Shield
Attach the rear splash shield to the right chip pan below the electrical cabinet with four M6 × 1.0 - 12 screws.
