Tormach 770M Installation Guide

2.1 INSTALLATION
Install the Front Door Assemblies
Each front door is attached to the enclosure by securing it to the linear bearings: the wider door is mounted on the left side of the enclosure, and the
narrower door is mounted on the right side of the enclosure.
To install the front doors:
1. Starting with the top linear assembly, attach the narrow door to the two upper linear bearings with two sets of four M5 × 0.8 - 10 screws.

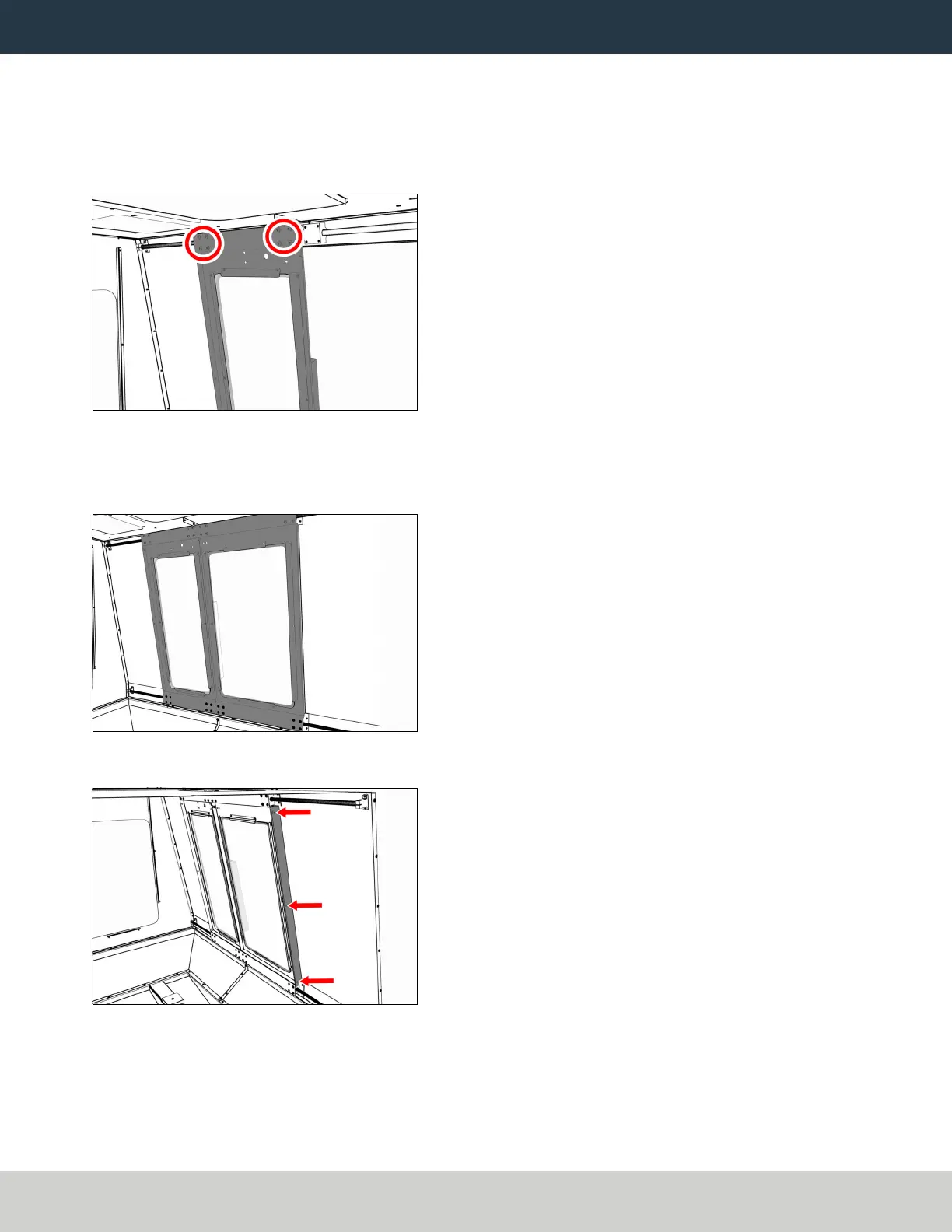

Figure 2-25: Narrow door attached to the top linear assembly.
2. Move the bottom of the narrow door into alignment with the bottom linear assembly. Then, attach the narrow door to the two bottom linear
bearings with two sets of four M5 × 0.8 - 10 screws.
3. Repeat Steps 1 to 2 to attach the wide door to the top and bottom linear rail assemblies on the remaining side of the enclosure.
Figure 2-26: Both front doors attached to the enclosure.
4. To the edge of the front door that's closest to the left side of the enclosure, attach one door seal with three M5 × 0.8 - 10 screws.
Figure 2-27: Door seal attached to the edge of the front door.
5. Repeat Step 4 for the remaining front door.
Page 16
©Tormach® 2022
Specifications subject to change without notice.
tormach.com
TD10536: Installation Guide: 770M Enclosure (0522A)
