2.1 INSTALLATION
Install the Left Side Window Retainers
Note: To make it easier to install all components, don't install the side windows yet. Wait until later in the procedure.
1. Push a strip of rubber window trim on to the edges of:
l Two vertical window retainers
l One horizontal window retainer
When finished, use shears or a knife to cut the excess trim.
2. Loosely install two vertical window retainers on both sides of the left side panel's window opening with two sets of three M5 × 0.8 - 10 screws.
Don't fully tighten the screws. Leaving the window retainers loose makes it easier to install the side windows.
3. Loosely attach one horizontal window retainer to the bottom of the left side panel's window opening with two M5 × 0.8 - 10 screws.

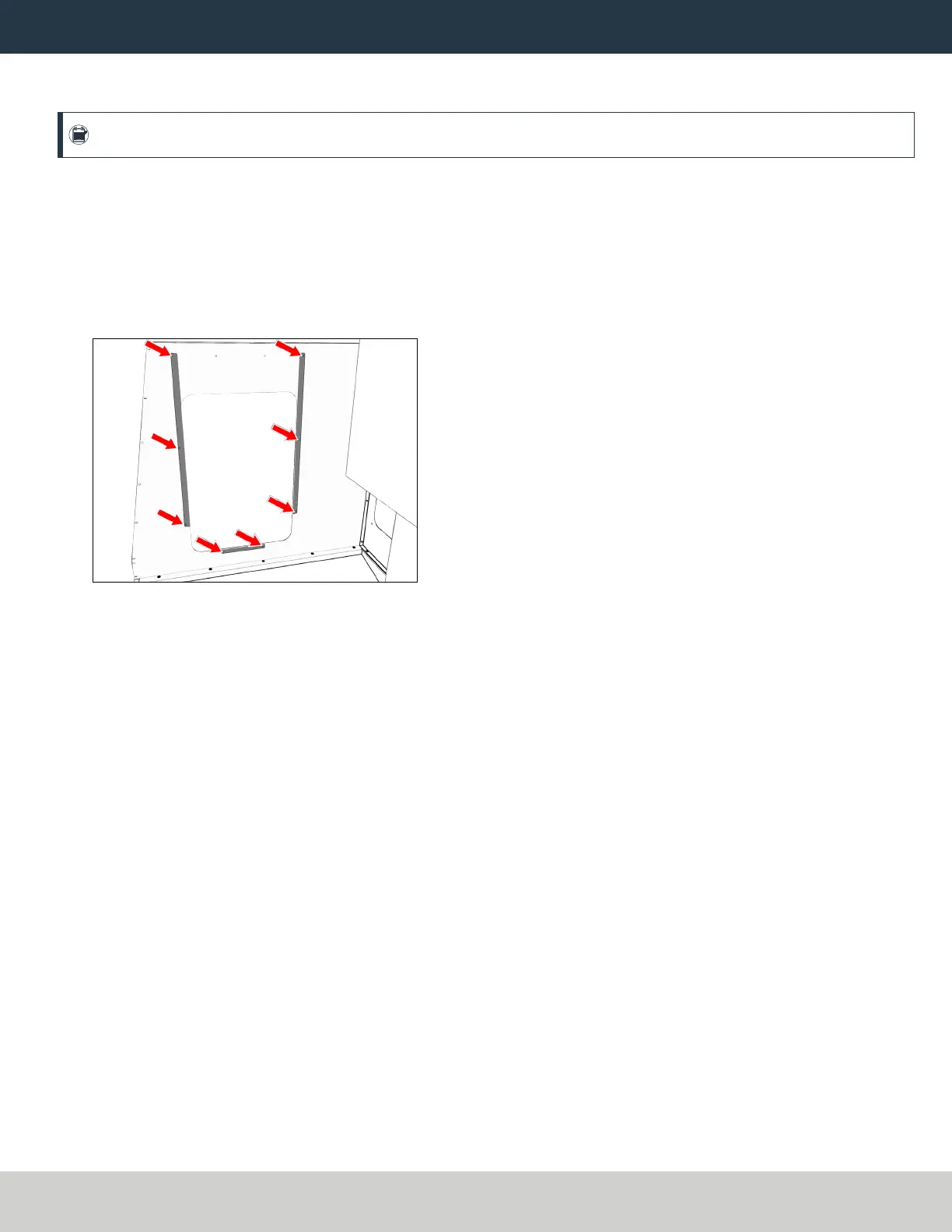

Figure 2-4: Side window retainers attached to the left side panel.
Page 5
©Tormach® 2022
Specifications subject to change without notice.
tormach.com
TD10536: Installation Guide: 770M Enclosure (0522A)
