2.1 INSTALLATION
Install the Left Front Panel
1. Attach the left front panel to the left chip pan with threeM6 × 1.0 - 12 screws.

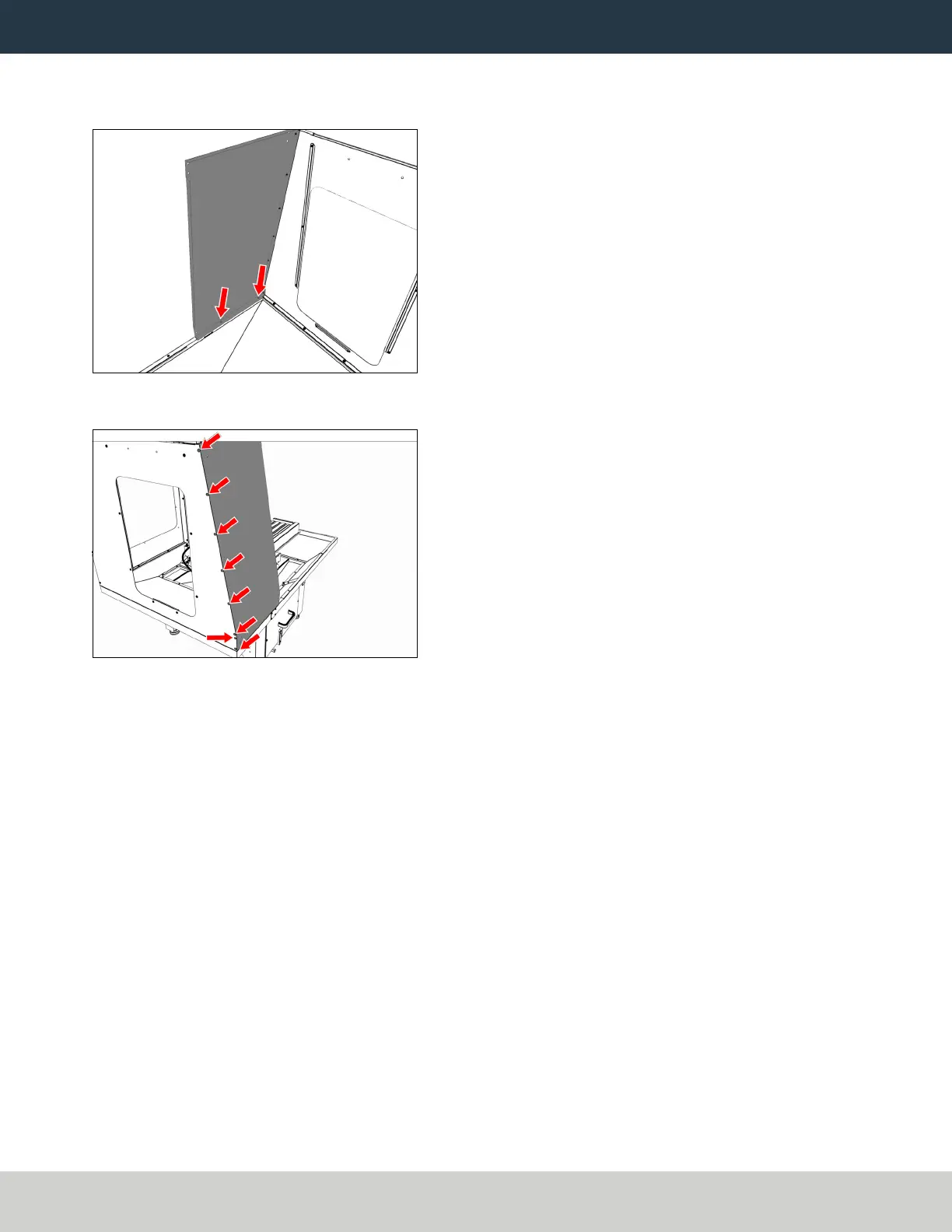

Figure 2-5: Left front panel attached to the left chip pan.
2. Attach the left front panel to the left side panel with seven M5 × 0.8 - 10 screws.
Figure 2-6: Left front panel attached to the left side panel.
Page 6
©Tormach® 2022
Specifications subject to change without notice.
tormach.com
TD10536: Installation Guide: 770M Enclosure (0522A)
