2.1 INSTALLATION
2. Attach two cable tie anchors to the left top panel with two M5 × 0.8 - 10 screws.

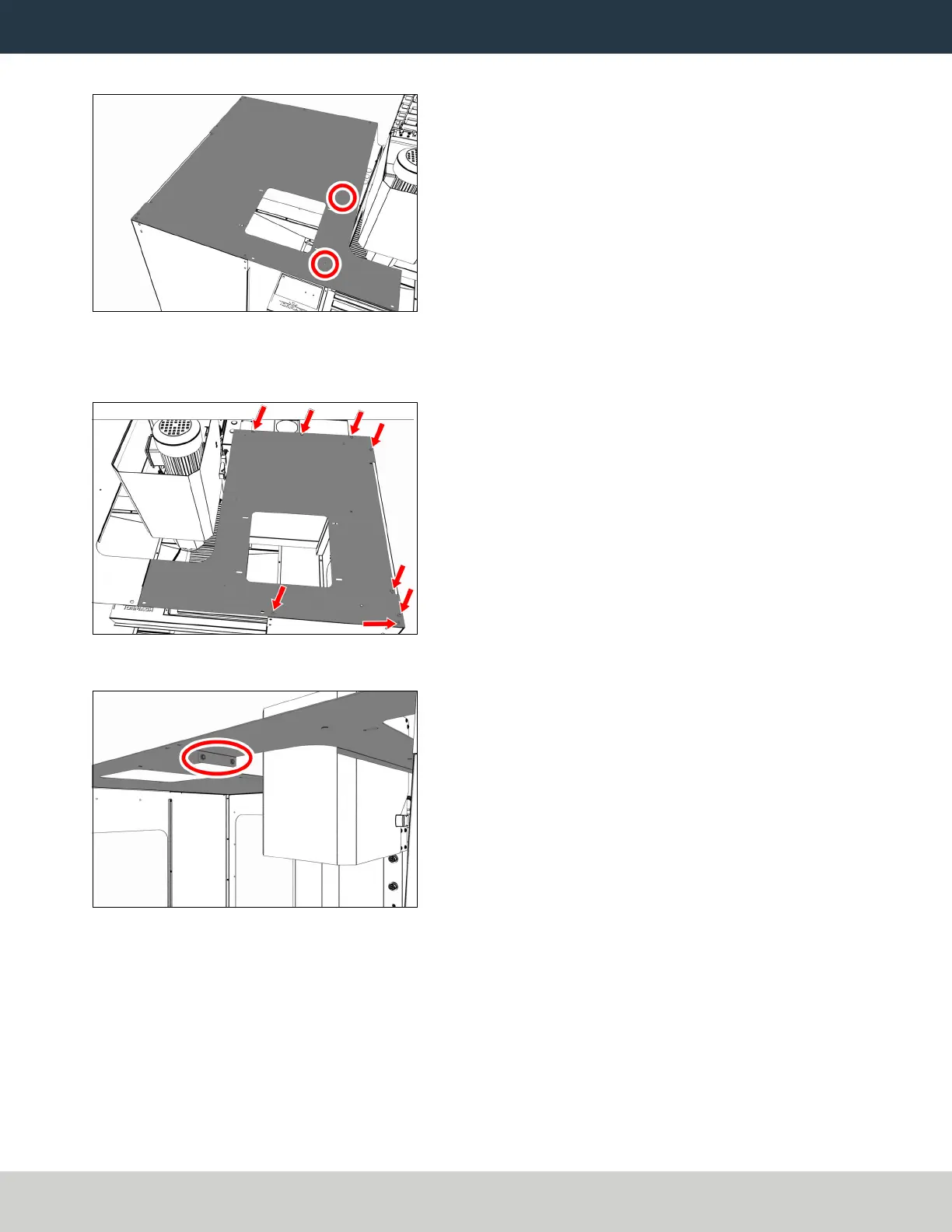

Figure 2-11: Location to attach two cable tie anchors.
Install the Right Top Panel
1. Attach the right top panel to the panels on the right side of the enclosure with nine M5 × 0.8 - 10 screws.
Figure 2-12: Right top panel attached to the right side of the enclosure.
2. Connect the left and right top panels with one M5 × 0.8 - 10 screw.
Figure 2-13: Left and right top panels connected.
Page 9
©Tormach® 2022
Specifications subject to change without notice.
tormach.com
TD10536: Installation Guide: 770M Enclosure (0522A)
