Tormach PATHPILOT OPERATOR CONSOLE User Manual

REVISION
LOCATION:
Document realized with version :
CONTRACT:
SCHEME
CHANGESNAMEREV. DATE
1 2 3 4 5 6 7 8 9 10
02

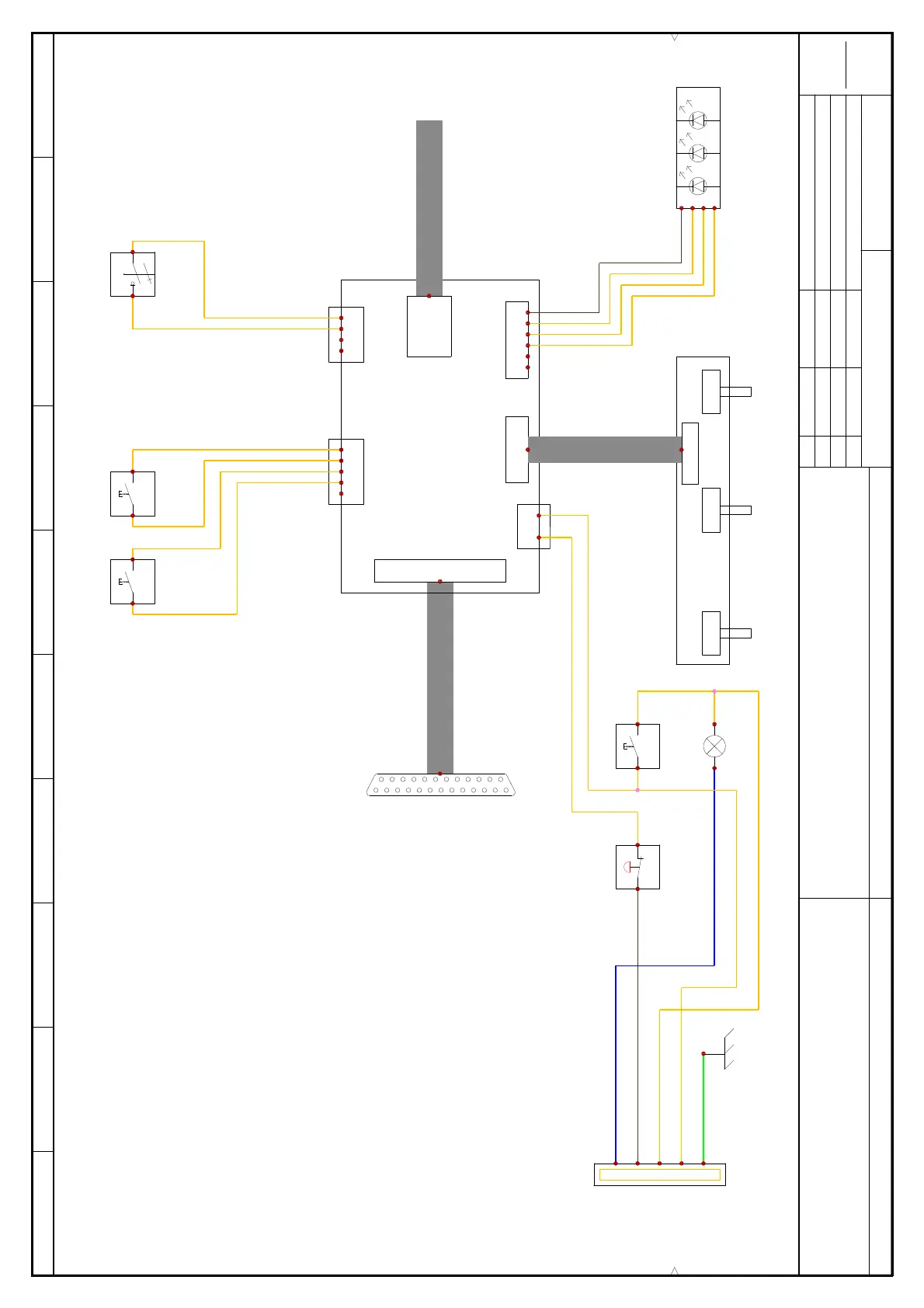

+L1 Electrical Panel
Machine Schematic
0
2018.0.2.14
Tormach, Inc
1071 Uniek Dr.
Waunakee, WI 53597
User data 1 User data 2
0 2/20/2019 pdenhartog
SOLIDWORKS Electrical
-S2
5
6
3
4
-S2
Reset
37342
-S1
1
2
Emergency Stop
30462
-X1
1 2 3 4 5
402 404
GND1
401 403
-X2
39379
3
4
-S3
Cycle Start
37362
3
4
-S4
Feedhold
37363
PN 39376 Override Knobs
-LED1
5v
G
R
B
J13 J14
J11
J2
J3
J12
E-Stop Passthrough
RGB LED
H2R KeySw
Front Panel Buttons
Jog Pendant
USB
J4
Override Knobs
39146
Control Board
5v
G
R
B
FH
GND
CS
GND
KEY
GND
H2R
GND
-S5
Key Switch
