Tornado 50 RV TN

39
EN
TORNADO
USE AND MAINTENANCE MANUAL UPRIGHT DISPLAY CABINETS
428000393
237

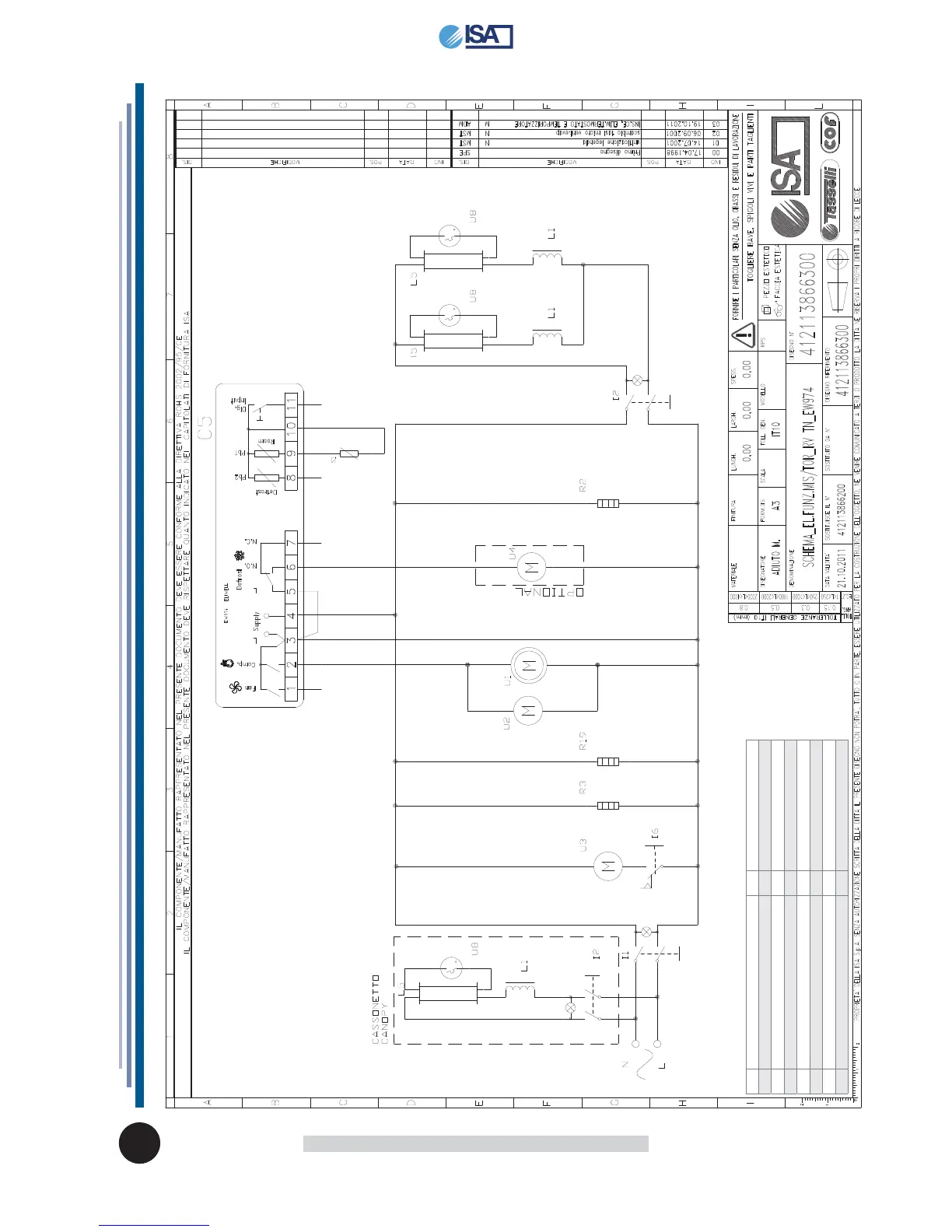

Attachment 4 - WIRING DIAGRAM - 412113866300
C5
Electronic control board
R19
Drip tray heating resistor
I1
Cabinet switch
S1
Temperature probe
I2
Light switch
S2 Defrosting probe
I6 Microswitch U1
Compressor
L1
Magnetic ballast
U2
Condenser fan
L5
Fluorescent tube T8
U3
Evaporator fan
R2
Drip defrosting heating resistor
U4
Cleaning fan
R3
Outside perimeter heating resistor
U8
Starter
