USE AND MAINTENANCE MANUAL UPRIGHT DISPLAY CABINETS
428000393
237
C5 Electronic control board R19 Drip tray heating resistor
I1 Cabinet switch U1 Compressor
I2 Light switch U2 Condenser fan
I6 Microswitch U3 Evaporator fan
L1 Magnetic ballast U4 Cleaning fan
L5 Fluorescent tube T8 U8 Starter
R2 Drip defrosting heating resistor S1 Temperature probe
R3 Outside perimeter heating resistor S2 Defrosting probe

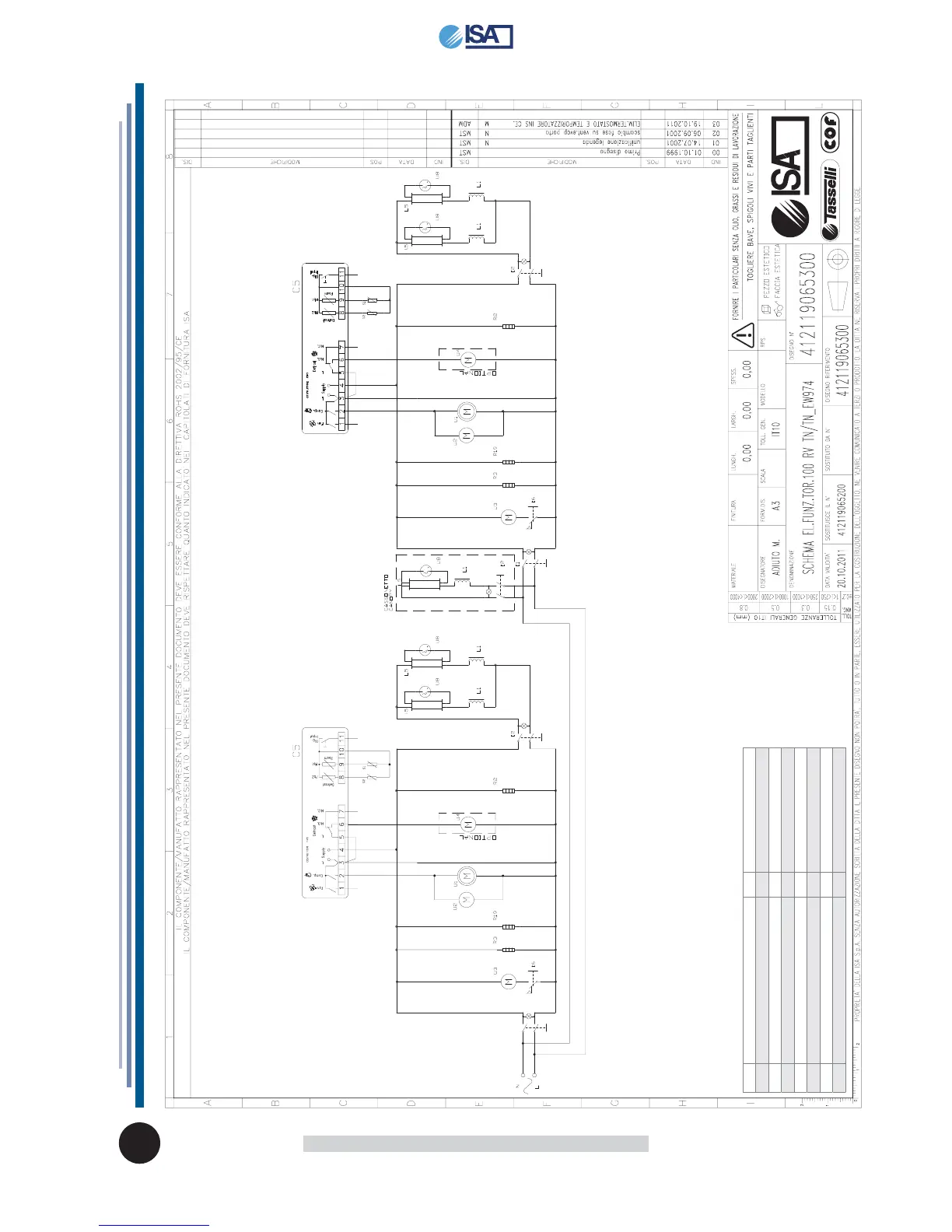

Attachment 12 - WIRING DIAGRAM - 412119065300
