USE AND MAINTENANCE MANUAL UPRIGHT DISPLAY CABINETS
428000393
237
C5 Electronic control board R6 Door perimeter heating resistor
I1 Cabinet switch S1 Temperature probe
I2 Light switch U1 Compressor
L1 Magnetic ballast U2 Condenser fan
L4 Electronic ballast U4 Cleananig fan
L5 Fluorescent tube T8 U8 Starter
L6 Fluorescent tube T5

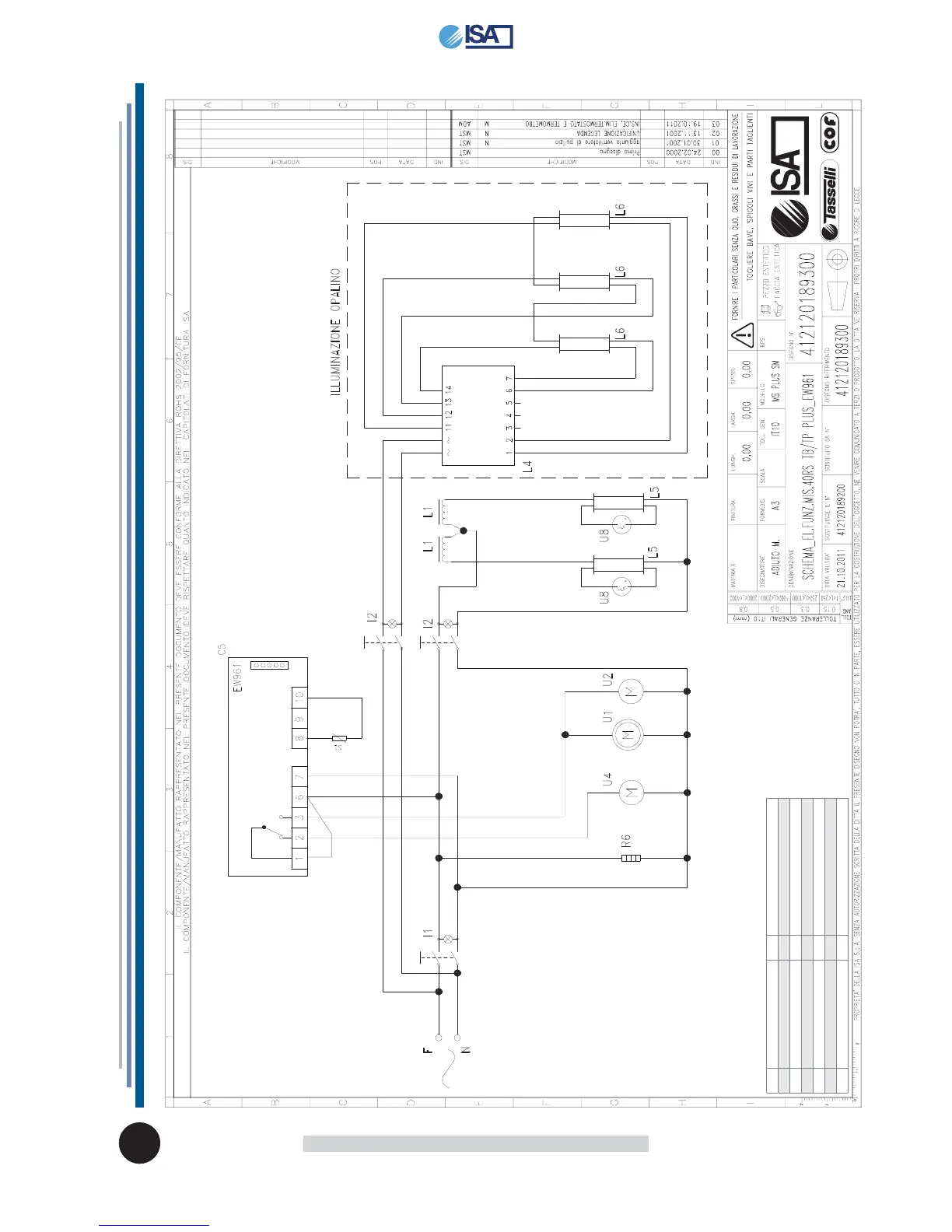

Attachment 6 - WIRING DIAGRAM - 412120189300
