ATTENTION:
The machine is not equipped with a
parking brake, do not leave it unattend-
ed on slopes.
DAILY MAINTENANCE
RECOVERY TANK CLEANING

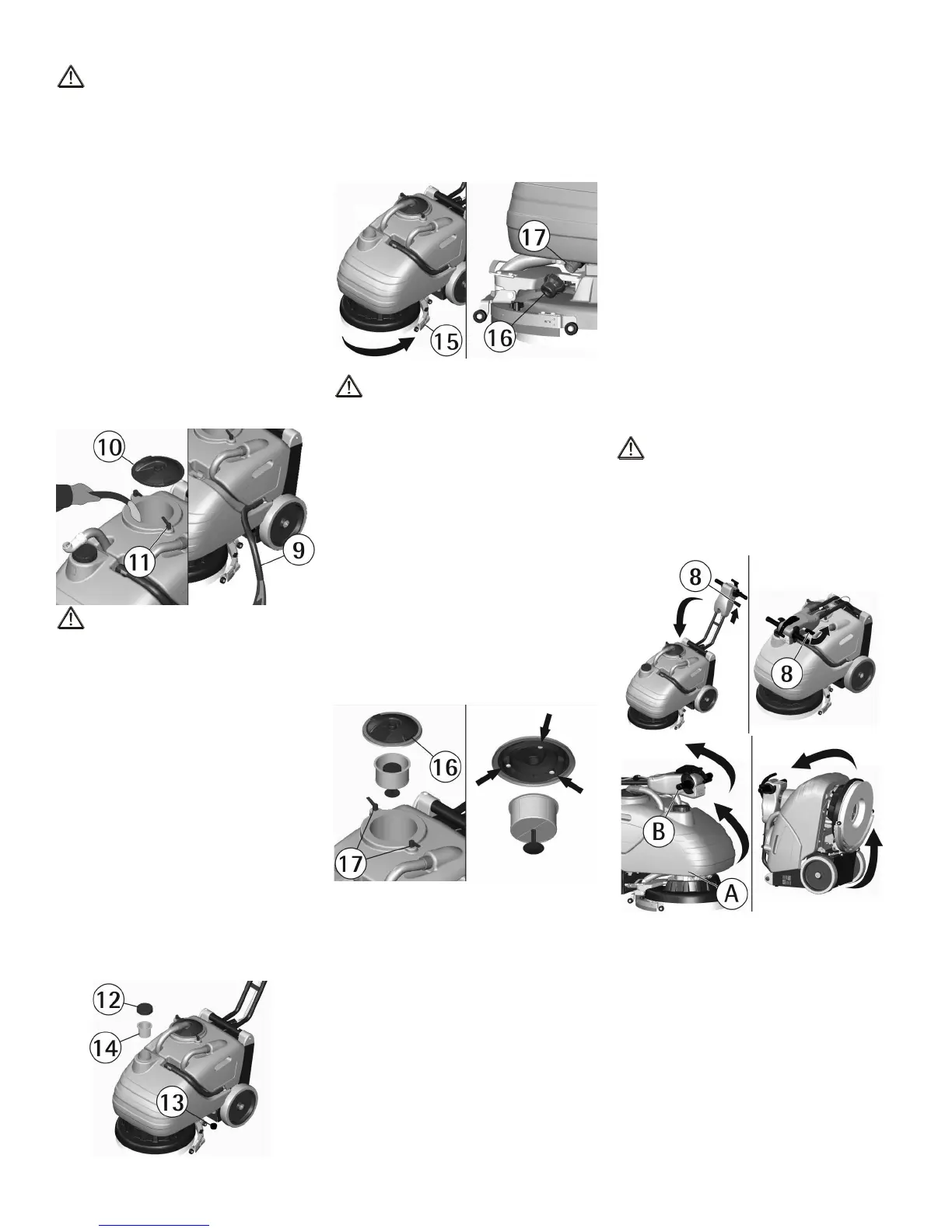

1. Hold the exhaust hose (9) of the
recovery tank.
2. Remove the exhaust plug and empty
the recovery tank into appropriate con-
tainers (see under "OVERFLOW DE-
VICE").
3. Take off the suction cover (10) after
rotating the blocking levers (11).
4. Empty the tank by using the hose
(9).
5. Rinse the tank with a water jet.
ATTENTION:
This operation must be carried out using
gloves to protect from contact with dan-
gerous solutions.
EMPTYING AND CLEANING OF THE
SOLUTION TANK AND FILTER
To empty any solution remaining in the
solution tank:
1. Move the machine to an appropriate
place for tank draining.
2. Switch off the machine by pressing
the on/off switch.
3. Unscrew the cap (12) of the solution
tank and take off the lter (14).
4. Unscrew the drain plug (13) placed in
the rear low left part of the machine and
allow the solution to drain out.
5. Manually rotate the squeegee (15)
towards the front part of the machine to
access the lter (16).
6. Unscrew the lter cover (16), remove
the cartridge (17) and rinse it with a
water jet.
7. Reassemble all parts.
ATTENTION:
This operation should be carried out
wearing gloves to prevent contact with
dangerous solutions.
SUCTION FILTER CLEANING
1. Take off the suction cover (16) after
rotating the blocking levers (17).
2. Take off the lter with the oat, bend-
ing the lter edge to release it from the
screws on the cover.
3. Clean all parts with a water jet.
4. Reassemble everything.
VERTICAL POSITIONING OF THE
MACHINE
The machine can be placed in a verti-
cal position tipped over on its back after
having folded the handle bar onto the
machine.
This position allows the unit to be stored
in a small space and simplies mainte-
nance operations.
To rotate the machine it is necessary to:
1. Switch off the machine.
2. Check that both tanks are empty,
otherwise, empty them (see under
“EMPTYING AND CLEANING OF THE
RECOVERY TANK” and “EMPTYING
AND CLEANING OF THE SOLUTION
TANK”).
3. Pull up on the handle bar release
lever (8) near the handle bar.
4. Rotate the handle bar towards the
tanks keeping the release lever (8)
pulled.
5. Release the lever (8) to lock the
handle bar in position.
6. Hold the machine with both hands in
point (A) of the tank side and (B) from
the handle bar as indicated in the gure.
7. Lift the front part of the machine rotat-
ing it on the rear wheels and bringing it
into the vertical position as shown in the
gure.
ATTENTION:
The position of the vertical parking
should be used when you expect not to
use the machine for more than 2-3 days,
to avoid the weight of the machine dam-
ageing the brush.
BRUSH CLEANING
Remove the brush and clean it with a
water jet (for the disassembly see under
“BRUSH REMOVAL/FITTING”).
BRUSH REMOVAL/FITTING
1. Tip the machine over backwards
(see under “VERTICAL POSITION-
ING OF THE MACHINE") remember to
switch off the on/off switch and to empty
the tanks.
