7

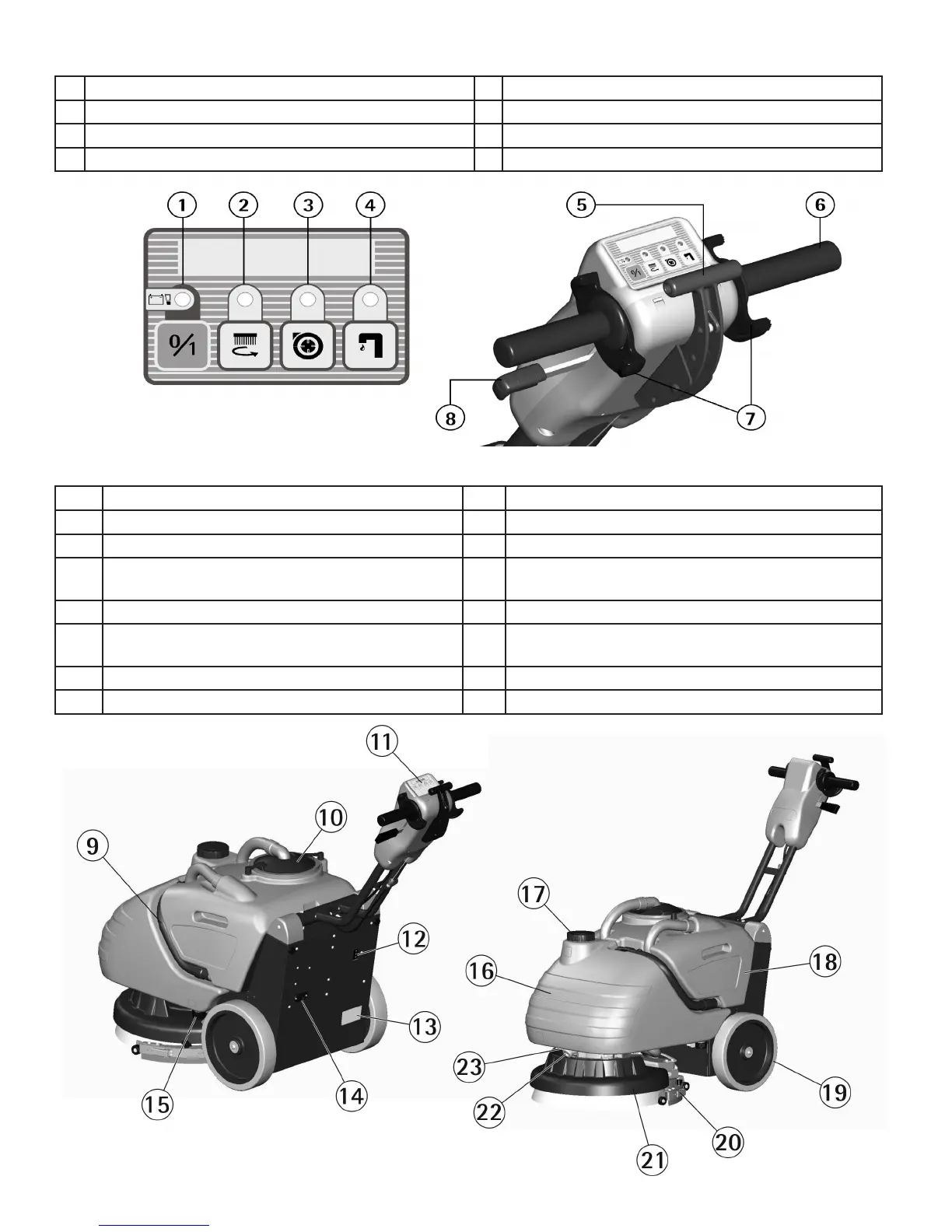

LEGEND INSTRUMENT PANEL AND CONTROLS
1 ON/OFF SWITCH WITH SIGNAL SIGNAL LAMP 5 SQUEEGEE LIFT LEVER
2 BRUSH MOTOR SWITCH WITH SIGNAL LAMP 6 HANDLE BARS
3 SUCTION MOTOR SWITCH WITH SIGNAL LAMP 7 SCRUB CONTROL LEVERS
4 SOLENOID VALVE SWITCH WITH SIGNAL LAMP 8 HANDLE BAR RELEASE LEVER
LEGEND MACHINE
9 EXHAUST HOSE RECOVERY TANK 17 CAP FOR SOLUTION TANK FILLING
10 SUCTION COVER 18 RECOVERY TANK
11 INSTRUMENT BOARD 19 WHEELS
12 BATTERY CHARGE LEVEL LED INDICATOR
(AGM)
20 SQUEEGEE ASSEMBLY
13 SERIAL NUMBER PLATE 21 BRUSH COVER
14 MAINS PLUG FOR ELECTRIC CABLE BATTERY
CHARGER
22 SOLUTION TANK FILTER
15 DRAIN PLUG SOLUTION TANK 23 SOLUTION FLOW ADJUSTMENT
16 SOLUTION TANK
