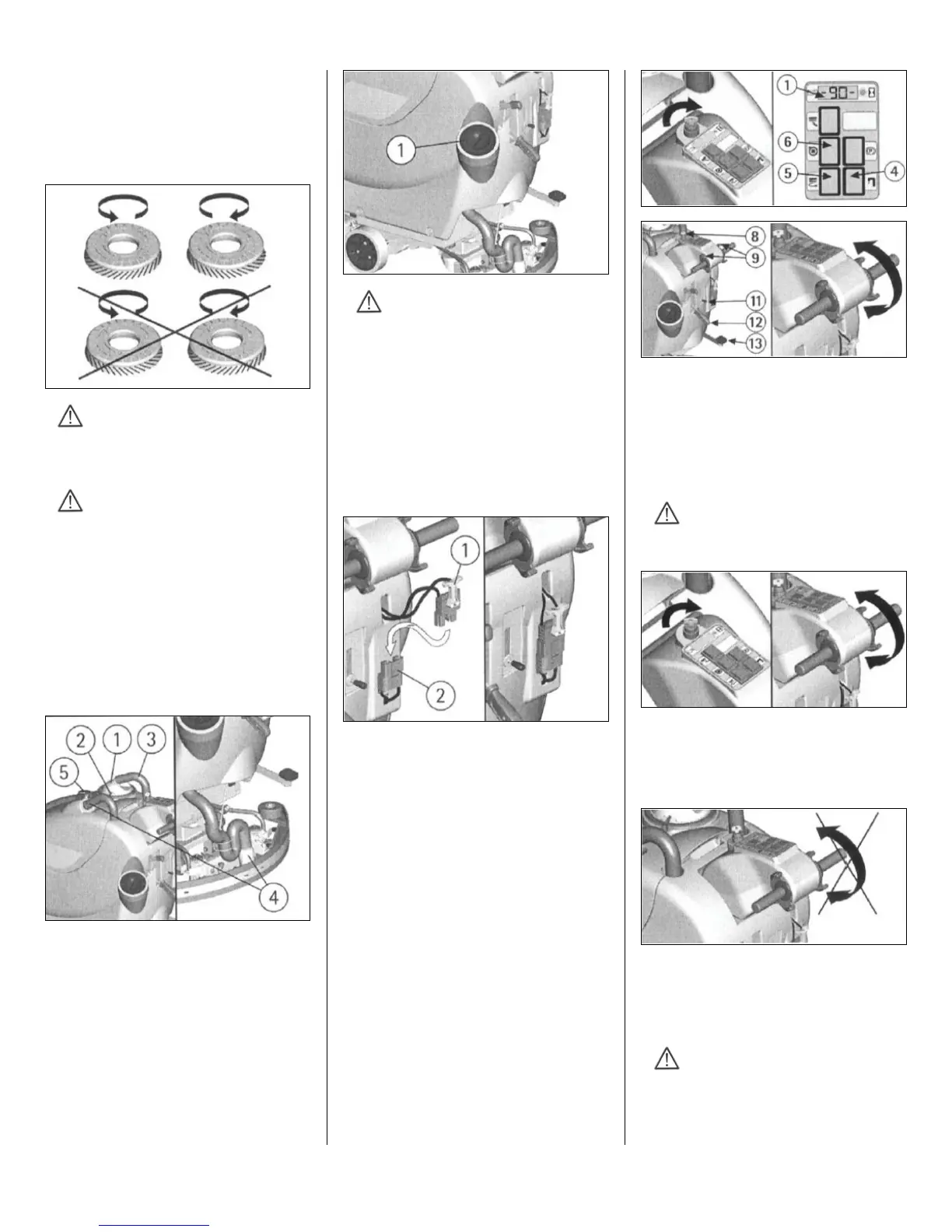

To obtain longer brush life, rotate them
regularly. Whenever brushes are deformed, we
suggest reassembling them in the same position,
avoiding the different inclination of the bristles
causing excessive motor overload or
troublesome vibrations.
ATTENTION:
Carrying out brush assembly operations with
the electric supply on may cause damages to
hands.
ATTENTION:
Use only the brushes supplied with the
machine. The use of other brushes may
damage the machine.
RECOVERY TANK
Check that the cover of the suction filter (1) is
correctly secured. After rotating the levers (2),
check that the suction motor hose is correctly
connected.
Verify that the squeegee hose (4) is correctly
inserted into the seats and that the exhaust hose
plug (5) placed in the front part of the machine
is closed.
DETERGENT SOLUTION TANK
The capacity of the detergent solution tank is
indicated in the technical data.
Open the screw plug (1) placed in the rear left
part of the machine and fill the detergent
solution tank with clean water at a maximum
temperature of 122°F. Add the liquid detergent
in the percentage and conditions specified by
the manufacturer. To avoid excessive foam
presence, which could cause problems to the
vacuum motor, use the minimum percentage of
detergent. Screw down the plug to close the
tank.
ATTENTION:
Always use low foam detergent. To avoid
foam presence, pour into the recovery tank a
minimum quantity of anti-foam product
before starting the operation.
Never use pure acid.
FLOOR CLEANING
CONNECTION OF THE BATTERIES TO
THE MACHINE
Plug in the battery connector (1) to the machine
connector (2), placed in the rear of the machine.
STARTING THE MACHINE
1. Turn the key (8) clockwise.
2. Check the battery type and the charge level
on the display (1).
3. Press the brush motor switch (5).
4. Press the vacuum motor switch (6).
5. Press the brush base lifting pedal (13) to
lower the brush base.
6. Pull the solution valve lever (11) to open
and adjust the solution detergent flow.
On the instrument board, the indicator of the
open solution valve (4) will turn on. The water
starts to flow automatically when the control
drive levers are rotated (9). Releasing these
levers will stop the flow automatically.
7. Using the squeegee lifting lever (12) lower
the squeegee.
8. Push the drive control levers (9) to move the
machine, the brushes start to rotate and the
squeegee starts to dry.
9. Make sure that the detergent solution flow
and drying are working properly. Always
consider that the correct quantity of solution
detergent depends on type of floor, dirtiness and
machine speed.
FORWARD MOVEMENT
The traction of the machine is given through an
electronically controlled motor.
To move the machine, turn the key (8) and rotate
the drive control levers (9) placed on the handle
bar. The speed of the machine can be adjusted by
the degree of the turn that is applied to the drive
control levers. When in reverse, the speed is of the
machine is reduced.
ATTENTION:
Moving the machine backwards, make sure that
the squeegee is lifted.
WORKING BRAKE
To stop the machine, release the drive control
levers (9). The machine is equipped with an
electronic braking system. The brushes and the
detergent solution flow stop automatically.
EMERGENCY BRAKE
In case of an emergency, immediately stop the
machine by pushing the lever of the emergency
and parking brake (10) downwards.

This control blocks the machine immediately.
The emergency brake functions also as a
parking brake. To start again, release the lever
by unblocking the parking button on the lever.
