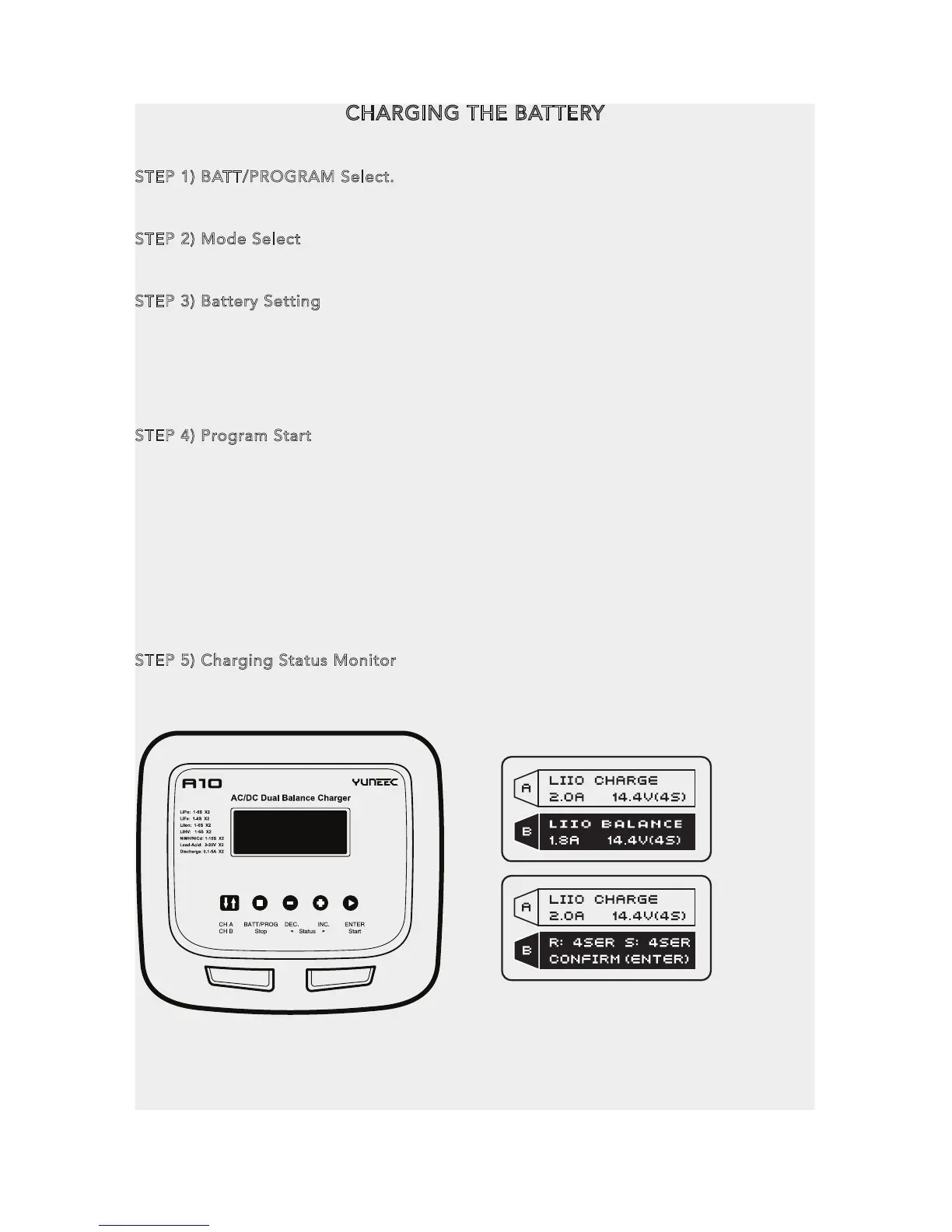

CHARGING THE BATTERY

Connect the Power Connector and Balancing Connector to the charger.

STEP 1) BATT/PROGRAM Select.

Press INC and DEC to go through all the programs and press START/ENTER to enter

Li-Io BATT Program.

STEP 2) Mode Select

Press INC and DEC to go through all the modes and press START/ENTER to enter Li-Io

Balance Charge Mode.

STEP 3) Battery Setting

Press START/ENTER, the current value will start to blink, then press INC or DEC to

increase or decrease the value. After confirming your setting, press START/ENTER. For

the Proaction™ battery, it is recommended to set 1.8A (no more than 2A).

The battery cells number will start blinking, press INC and DEC to increase or decrease

the value, and then press START/ENTER to confirm your setting. For the ProAction™,

4S should be selected.

STEP 4) Program Start

Press and hold START/ENTER for 3 seconds to start the program. The charger is

detecting the battery cell and "BATTERY CHECK" will be on the screen

(the third block) R shows the number of cells detected by the charger and S is the

number of cells set by you at the previous screen. If the numbers are not identical,

press STOP to go back to the previous screen to recheck the number of cells of the

battery pack before proceeding the next step.

(the fourth block) R shows the number of cells detected by the charger and S is the

number of cells set by you at the previous screen. If the numbers are identical, press

START/ENTER to start charging. It will take approximately 2 hours to charge a fully

discharged (not over-discharged) battery. When the charging process finishes, "END:

FINISH" will be on the screen.

STEP 5) Charging Status Monitor

During charge process, real-time status will be shown as the left screen.

During the charging process, press STOP to stop the charging process.

Tornado H920 User Manual
