Tornado T6 User Manual

1
Figure 18
4.3 Real object of switch box & inverter

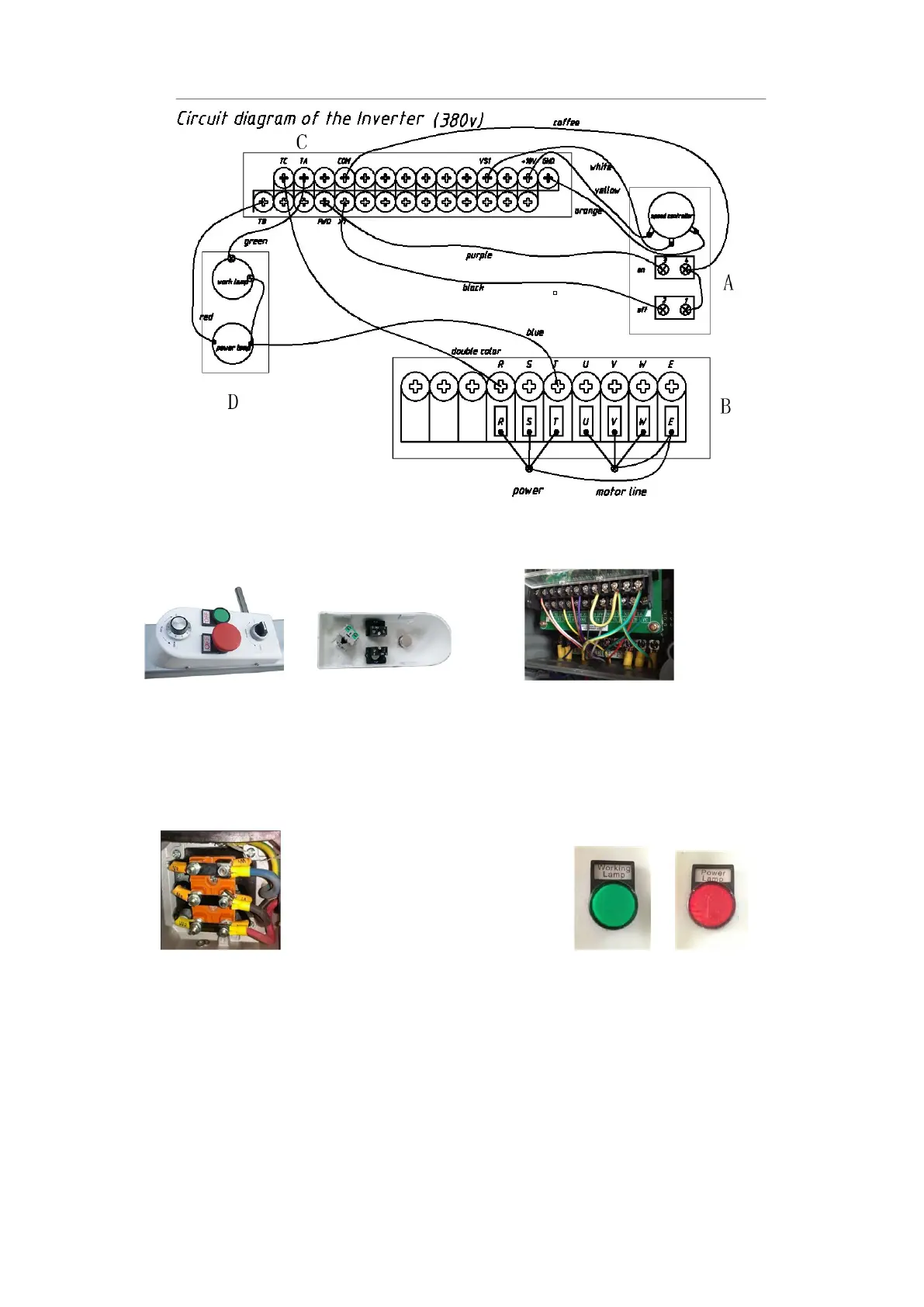

For switch box wiring details, please refer to Part A in Figure 18. For inverter wiring detail, please refer to Part B and C in
Figure 18.
4.4 Real object of motor wiring box & indicating lights
For motor wiring detail, please refer to Part B in Figure 18. The indicating lights wiring details are as shown in Part D
of Figure 18.
4.5 Inverter Reset
When the equipment is shut down because of over-low voltage or overload, please turn off the power supply. Turn on the
power supply again after three minutes, and the equipment will recover to normal work. If not, use the control panel to reset
(reset setting is as shown in Figure 19). The control panel of inverter is as shown in Figure 20.
