3.1.2 Mechanical Operation
[1]: Check whether the voltage whereabouts is normal, and then connect both ends of the power wire into the corresponding
plug as shown in Figure 5. As shown in Figure 6, if the red indicating light is on, everything is okay. When began to
operate, if the green indicating light next is on, the equipment is in normal running state.
[2]: The co-rotation and inversion switch control the grinding direction, if the switch is on the forward, it grinds clockwise; if
it is on the inversion, it grinds reversely. The real object of co-rotation and inversion switch is as shown in Figure 7.
[3]: The chassis rotation direction is as shown in Figure 8 and 9.
[4]: The rotation speed controller can regulate the grinding speed, and clockwise rotation means speed up, counter clockwise
rotation means slow down. The real object of rotation speed controller is as shown in Figure 10.
[5]: When conducting water grinding, infuse proper amount of water into the water tank and regulate the water switch. When
the water switch rotates clockwise, it begins infusing water, and stopping infusing when it rotates counter-clockwise. The
real object of water switch and the water pipe joint are as shown in Figure 11.
[6]: When dry grinding, the equipment can connect with the vacuum cleaner to ensure dust-free operation.
The connector of vacuum cleaner is as shown in Figure 12, and the equipment connecting with the vacuum cleaner
are as shown in Figure 13, 14, 15 and 16.
Figure 13 shows the vacuum cleaner socket on the equipment.
Figure 14 is a picture about sweep-up pipe connecting.
Figure 15 is an overall connecting diagram of the equipment and the vacuum cleaner.
[7]: When everything is ready, turn on the power switch and regulate it to an appropriate rotation speed to grind in a
“double-cross” shape.

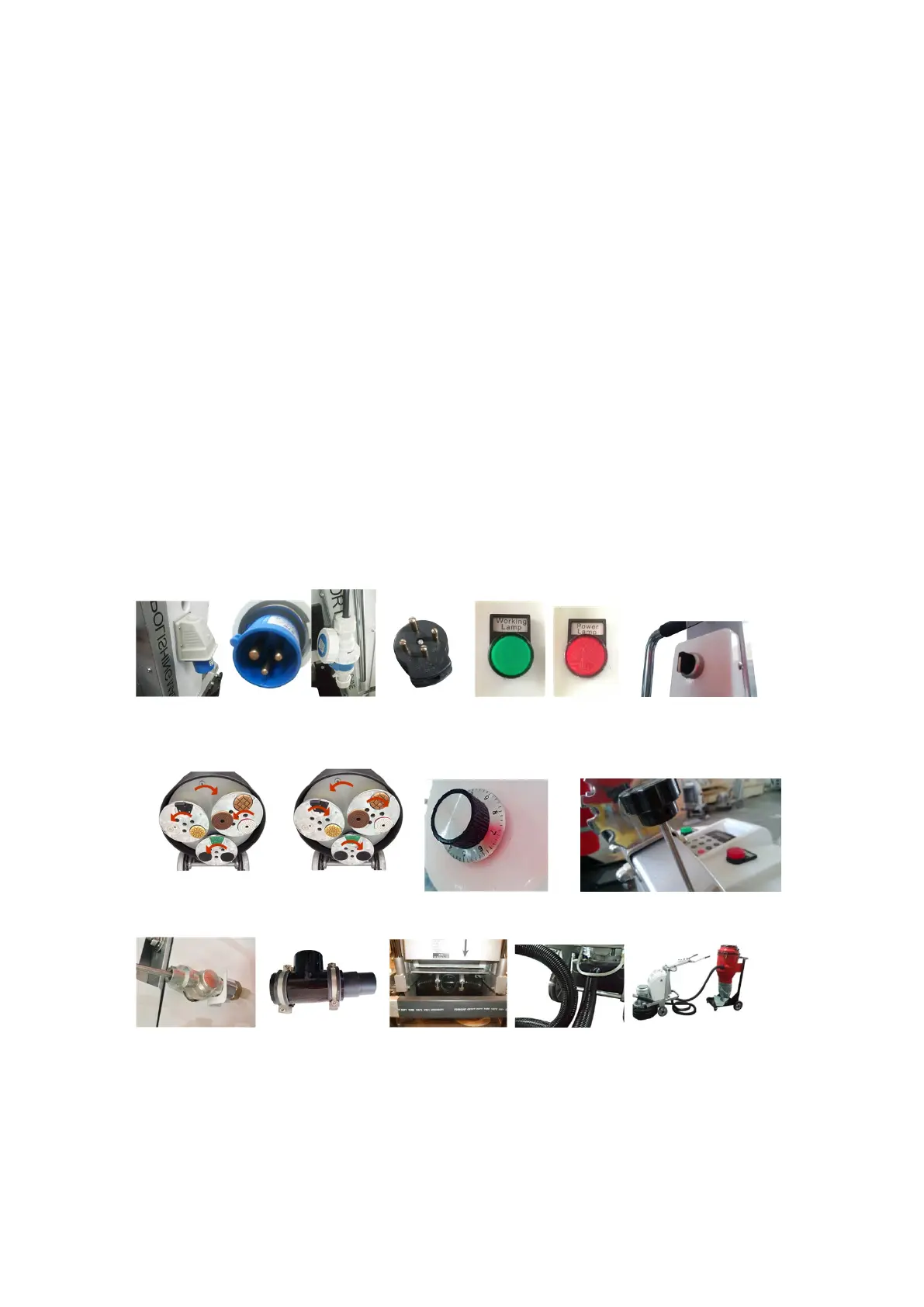

Figure 5 Figure 6 Figure 7
Figure 8 (Forward) Figure 9 (Reverse) Figure 10 Figure 11
Figure 12 Figure 13 Figure 14 Figure 15 Figure 16
3.2 Equipment Storage after Use
[1]: Place the hand into the vertical position, disconnect and place the power wire in dry place.
[2]: Dismount the small grinding head from the machine, and then clean and dry them.
[3]: Use a piece of half-dry clean rag to clean the machine. Pay attention to cleaning the machine surface after being used
in wet environment.
