INSTALLATION − DECO 20a / DEC0 26a / DECO 20e / DECO 26e
300561 en − 05/08 Chap. 3.6.1 /17
Version 0018 & 0020
XS60
XS−−
XS94
XS42
(1)
(2)
RS232

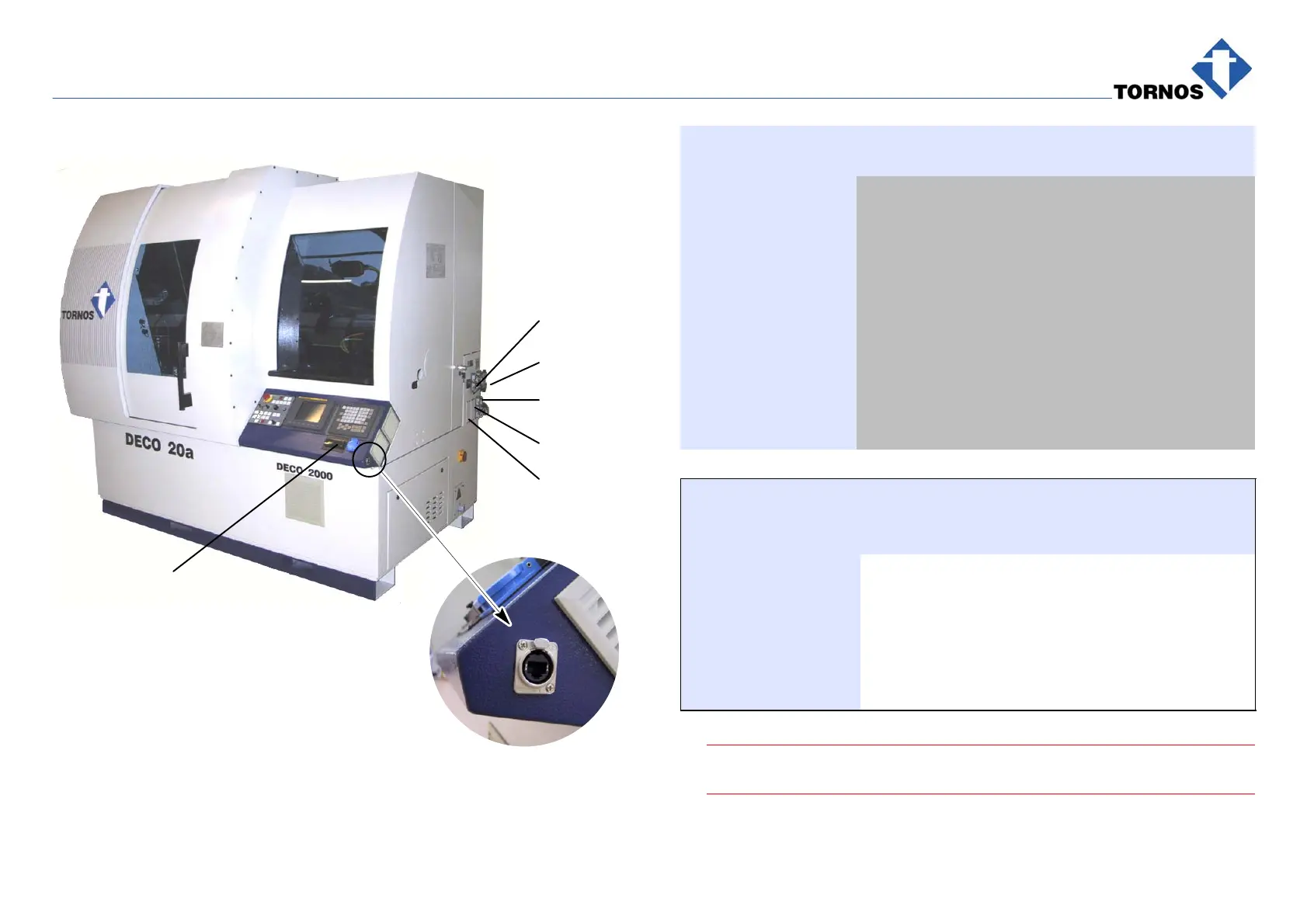

LOCATION OF ELEMENTS
Ref. Description
QS0 Main Switch
XS60 Fire protection system
XS94 Barfeeder socket, fixed
XS94 Barfeeder socket, fixed
XS42 Interface socket for pump, cooling.
(1) Reserve
(2) Socket for eternet
TM1 Autotransformer (if required)
TC1 Mains voltage transformer inside lathe’s enclosu-
re
XS1 Single phase current socket 230V 50Hz
3.6.1 Installation Characteristics
Feature Notes Data
Lathe power: Average effective power:
(acc. to lathe application)
10 kW approx.
Installed power: 14 kVA approx.
Mains tolerances: rated voltage:
frequency:
+/−10%
+/−1 Hz for 50/60 Hz
Main circuit-breaker: at machine input 32 A
Δ See also your instructions: SAFETY REGULATIONS DECO 2000
