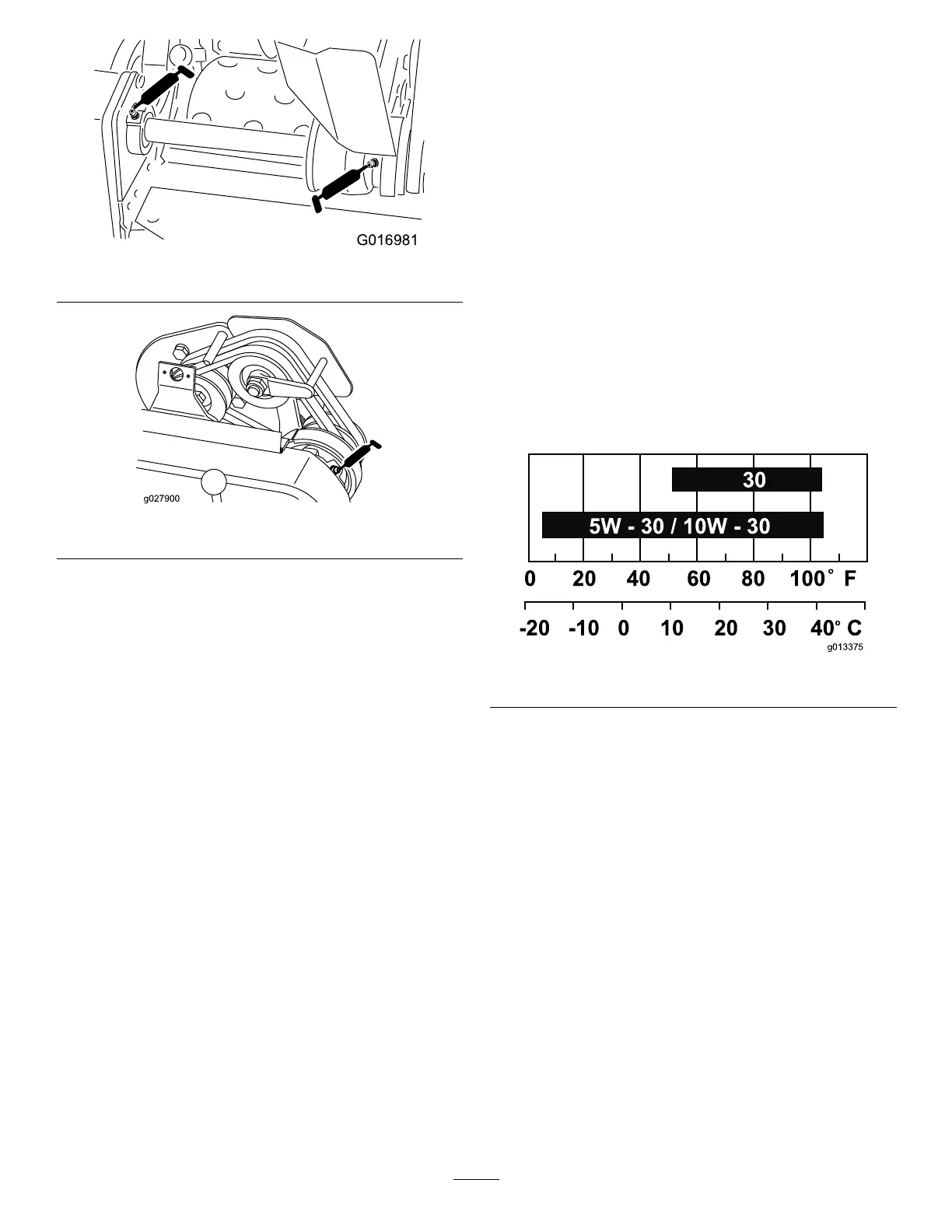

Figure31
1.Differentialcoversections
3.Rightrearbearinghousing
2.Frontclutchhousing
5.Loosentheidlerpulleymountingnutonthe
differentialidlerpulleyandpivottheidlerpulley
counterclockwiseawayfromthebacksideofthebelt
toreleasethebelttension.
6.Removethe2boltsandlocknutssecuringthefront
clutchhousingtothesideplate(Figure31).
7.Rotatethehousing180°sothebottomofthe
housingpointsupward.
8.Removethe2boltsandlocknutssecuringtheright
rearbearinghousingtothesideplate(Figure31).
9.Rotatethehousing180°sothebottomofthe
housingpointsupward.Removeoldbelt.
10.Slidethenewbeltovertherotatedhousingcovers,
thedifferentialcoversections,andontothe
differentialpulleys.
11.Ensurethattheidlerpulleyispositionedagainstthe
backsideofbelt.
12.Rotatebothhousingsbackintotheuprightposition
andsecurethemtothesideplatewiththeboltsand
nutspreviouslyremoved.
13.Adjustthedifferentialbelttension;refertoAdjusting
theDifferentialBelt.
14.Adjustthebelttensiononthetractiondriveandreel
drivebelts;refertoAdjustingtheTractionDrive
Belt,andAdjustingtheReelDriveBelt
15.Installthedifferential,tractiondrive,andreeldrive
covers.
ControlsSystem
Maintenance
AdjustingtheTractionControl
Iftractioncontroldoesnotengageoritslipsduring
operation,anadjustmentisrequired.
1.MovethetractioncontroltotheDisengaged
position.
2.LoosentheretainersecuringtheV-beltcoverand
pivotthecoveropen(Figure29).
3.Toincreasethecabletension,loosenthefront
cablejamnutandtightenthebackcablejamnut
(Figure32)untilaforceof3to5lb(1.5to2.3kg)is
requiredtoengagethetractioncontrol.Measurethe
forceatthecontrolknob.
Measuretheforceatthecontrolknob.
Figure32
1.Tractioncable2.Frontjamnut
4.Tightenfrontcablejamnut.
5.Closethecoverandsecuretheretainer.
6.Checkthetractioncontroloperation.
26
