Raise/LowerMowControl
Movingthecontrol(Figure20)forwardduringcutting
operationlowersthecuttingunitsandstartsthereels.
Pullbackonthecontroltostopthereelsandraise
thecuttingunits.Tostopthereelswithoutraisingthe
cuttingunits,pullbackonthecontrolmomentarily
andreleasingit.Startthereelsbymovingthecontrol
forward.
HighTemperatureOverrideButton
Iftheengineshutsoffbecauseitisoverheated,press
theoverridebutton(Figure20)inandholdituntilyou
canmovethemachinetoasafelocationandallowed
tocooldown.
Note:Whenusingtheoverridebutton,youmusthold
itdowncontinuouslytooperate.Donotuseitfor
extendedperiodsoftime.
BacklapLever

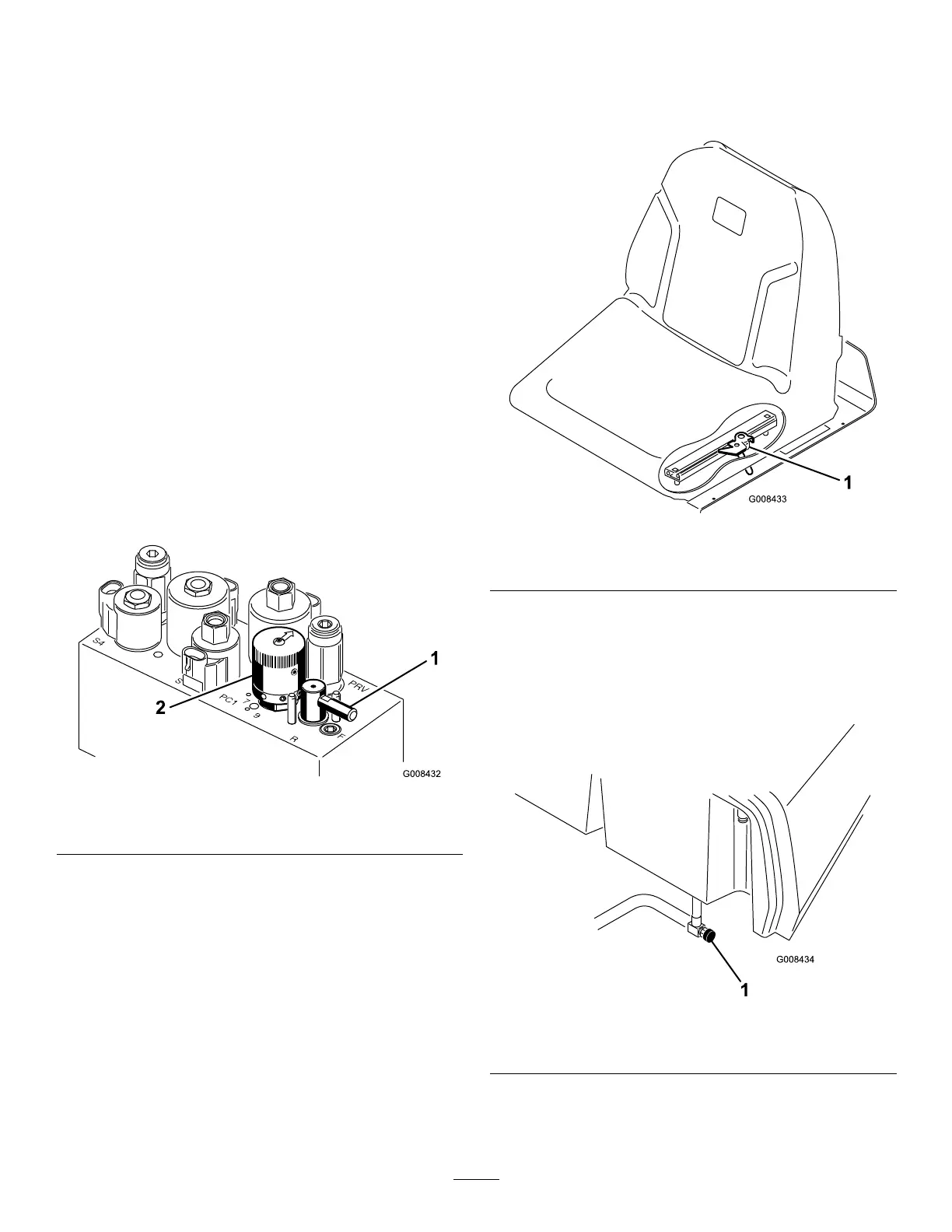

Usethebacklaplever(Figure21)withtheraise/lower
mowcontrolleverandthereelspeedcontrolfor
backlappingthereels.
g008432
Figure21
1.Backuplever2.Reel-speedcontrol
Reel-SpeedControl
Usethereel-speedcontrol(Figure21)toadjustthe
speedofthereels.
Seat-AdjustmentLever
Theseat-adjustmentleverontheleftsideoftheseat
(Figure22)allowsan18cm(7inch)forewardand
rearwardadjustmentoftheseat.
g008433
Figure22
1.Seat-adjustmentlever
Fuel-ShutoffValve
Closethefuel-shutoffvalve(Figure23),underthefuel
tank,whenstoringortransportingthemachineona
truckortrailer.
g008434
Figure23
1.Fuel-shutoffvalve(underthefueltank)
20

Toro 04470 Specifications

General

Model	04470
Power Source	Gasoline
Engine Type	4-Cycle
Start Type	Recoil
Deck Material	Steel
Cutting Height	1.25 - 3.75 inches
Fuel Tank Capacity	0.25 gal (1 L)
