SC8:Lithium-IonBatteryController(Model04590)
g311711

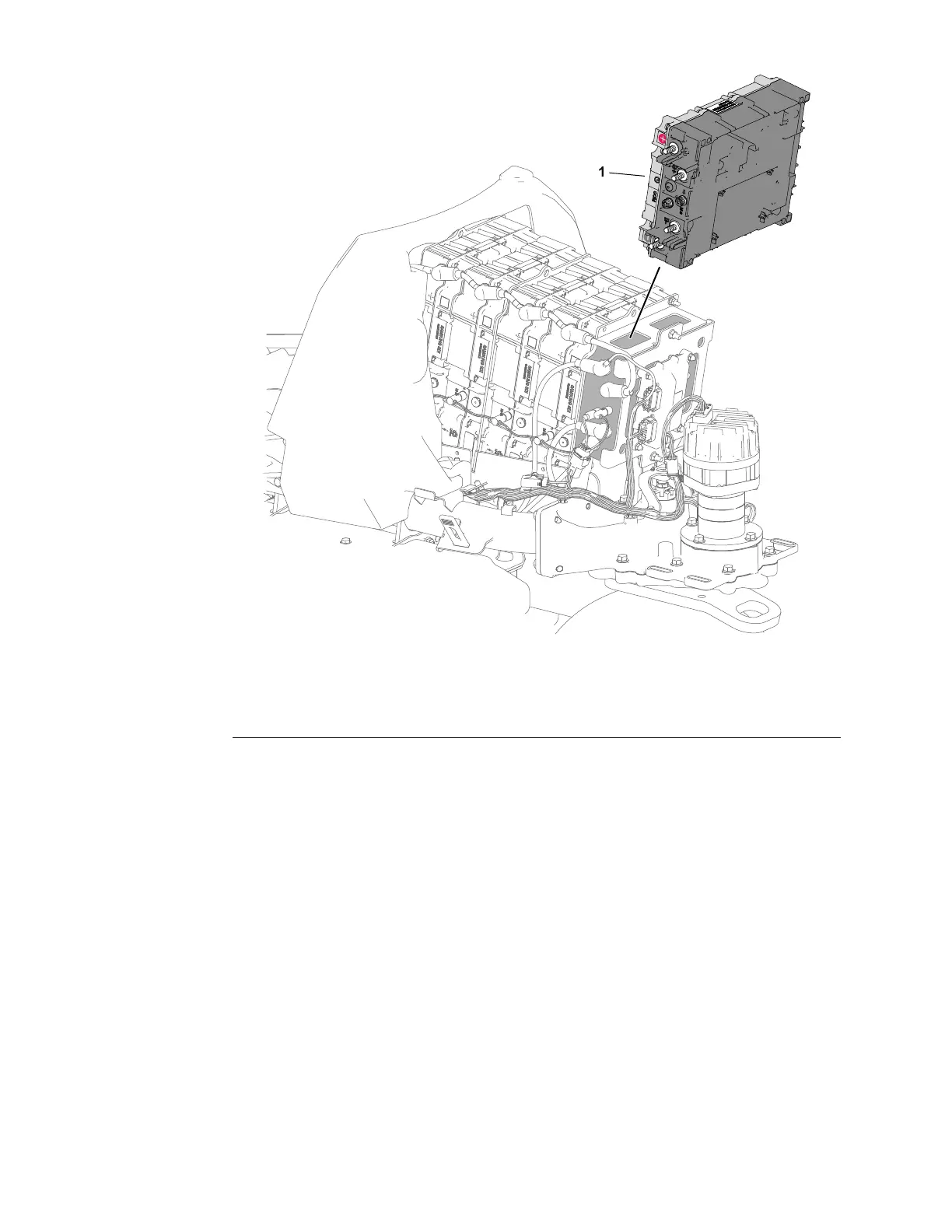

Figure47
(shownwithhoodremoved)
1.SC8:Lithium–ionbatterycontroller
TheeTriFlex3370usesaLithium-ionbatterycontrollerorBatteryManagement
System(BMS)tomanagethelithium-ionbatteries;refertoSC8:Lithium-Ion
BatteryController(Model04590)(page5–15)forSC8:lithium-ionbattery
controlleroperationnotes.TheBMSislocatedunderthehoodattachedtothe
backofthecentermountedbatteries.
Note:IftheSC8:Lithium-IonBatteryControllerisreplacedforanyreason,
themachinesoftwaremustbeupdated;contactanAuthorizedT oroDistributor
forassistance.
TestingtheSC8:Lithium-IonBatteryController(Model04590)
Althoughthereisnomethodtotestthesolidstatecircuitrybuiltintothecontroller
directly,someaspectsofthelithium-ionbatterycontrolleroperationcanbetested
asfollows;refertoFigure48.
ElectricalSystem:TestingtheElectricalComponents
Page5–40
Greensmaster®eTriFlex3360and3370
19239SLRevB
