Maintenance
Note: Determine the left and right side of the machine from the normal operating position.
Service Interval Chart
Greasing Bearings And
Bushings
The vehicle has grease fittings that must be lubricated
regularly with No. 2 General Purpose Lithium Base Grease.
If machine is operated under normal conditions, lubricate
all bearings and bushings after every 100 hours of
operation. More frequent lubrication is required if used for
heavy duty vehicle operations.
The grease fitting locations and quantities are: Tie rod ends
(4) (Fig. 28), Front ball joints (4) (Fig. 28), Rear drive
shafts (18) (Fig. 29), Mid drive shaft – 4 wd only (3)
(Fig. 30) Pedal Pivots (4) (Fig. 31); Steering shaft (1)
(Fig. 32), Front pivot bushings (2) (Fig. 33) and Throttle
pivot (1) (Fig. 34).
Important When greasing drive shaft universal shaft
bearing crosses, pump grease until it comes out of all 4
cups at each cross.
1. Wipe grease fitting clean so foreign matter cannot be
forced into the bearing or bushing.
2. Pump grease into the bearing or bushing.
3. Wipe off excess grease.

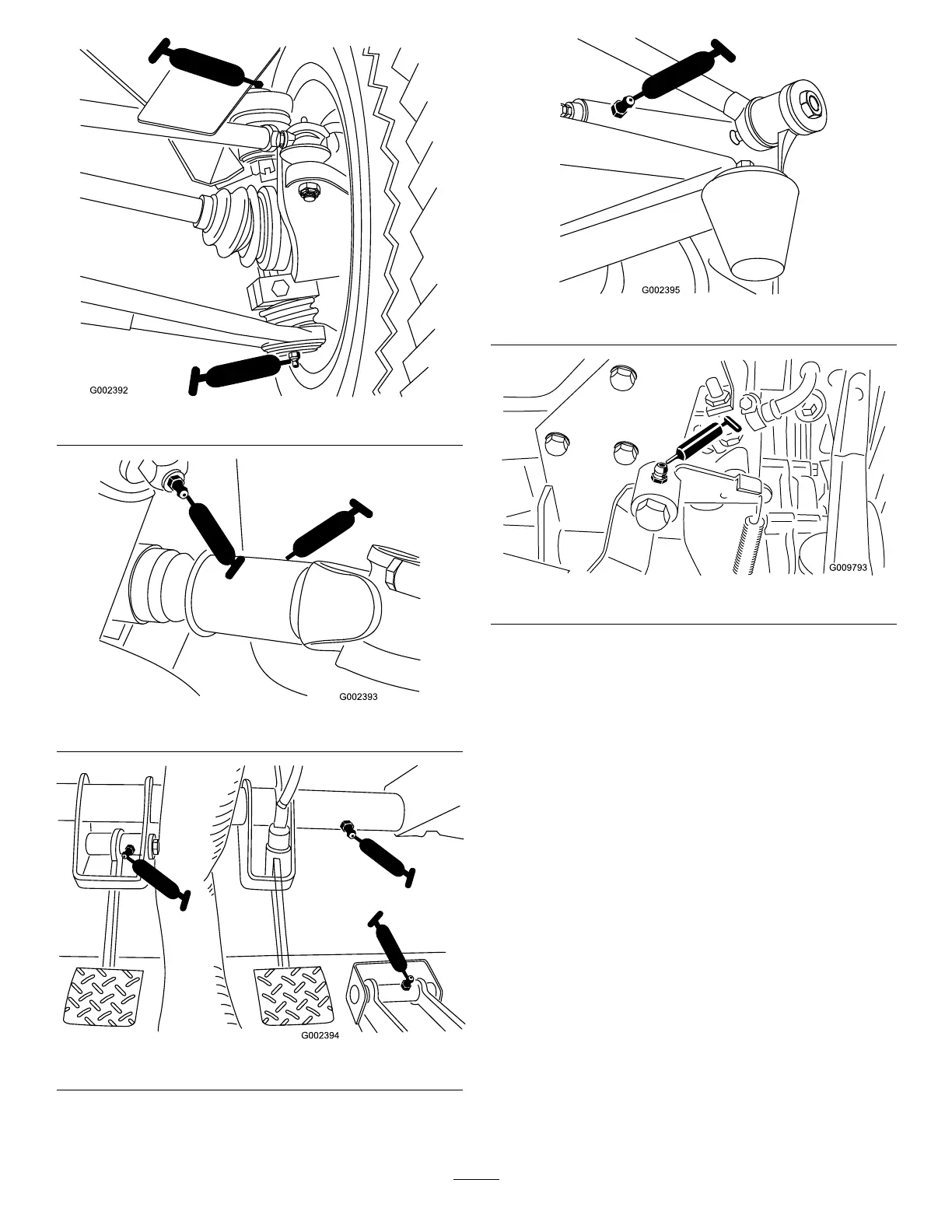

Figure 28
