Toro 07385 Workman HDX-D - Adjusting the Clutch Pedal; Converting the Speedometer

AdjustingtheClutchPedal
ServiceInterval:Every200hours
Note:Youcanadjusttheclutch-pedalcableatthebell
housingorattheclutch-pedalpivot.Thefronthoodcanbe
removedtoeasetheaccesstothepedalpivot.
1.Loosenthejamnutssecuringtheclutchcabletothe
bracketonthebellhousing(Figure69).
Note:Youmayremoveandrotatetheballjointif
additionaladjustmentisrequired.

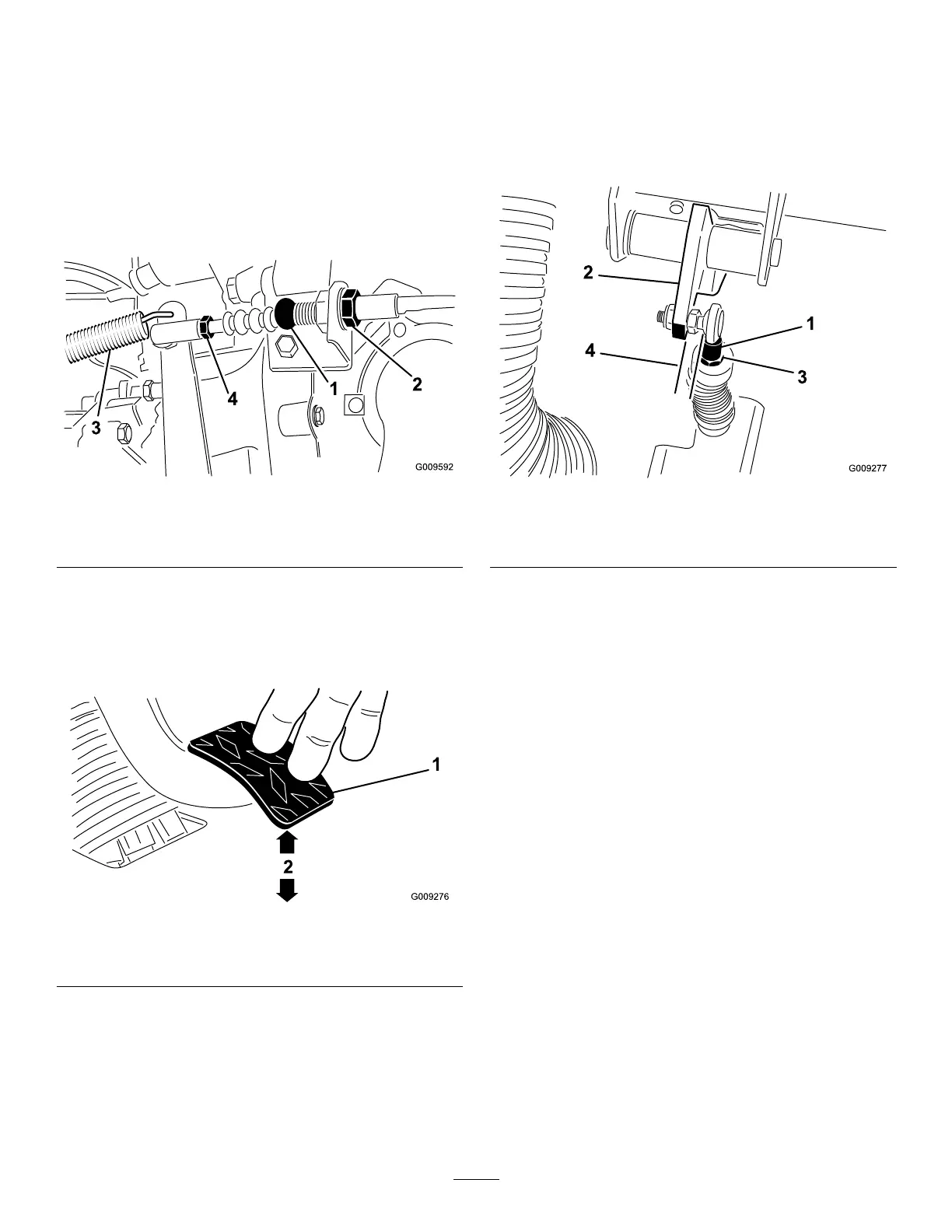

Figure69
1.Clutchcable
3.Returnspring
2.Jamnuts4.Balljoint
2.Disconnectthereturnspringfromtheclutchlever.
3.Adjustthejamnutsorballjointuntiltherearedgeof
theclutchpedalis9.2to9.8cm(3-5/8to3-7/8inches)
fromthetopoftheoorplatediamondpattern,when
an1.8kg(4lb)forceisappliedtothepedal(Figure70).
Figure70
1.Clutchpedal2.9.2to9.8cm(3.63to3.87
inches)
Note:Forceisappliedsotheclutchreleasebearing
lightlycontactsthepressureplatengers.
4.Tightenthejamnutsaftertheadjustmenthasbeen
attained.
5.Checkthe9.2to9.8cm(3-5/8to3-7/8inches)
dimensionafterthejamnutshavebeentightenedto
ensureproperadjustment.
Note:Adjustagainifitisnecessary.
6.Connectthereturnspringtotheclutchlever.
Important:Ensurethattherodendispositioned
squarelyontheball,nottwisted,andremains
paralleltotheclutchpedalafterthejamnutis
tightened(Figure71).
Figure71
1.Clutch-cablerodend
3.Rodendjamnut
2.Clutchpedal
4.Parallel
Note:Theclutchfreeplayshouldneverbelessthan
19mm(3/4inch).
ConvertingtheSpeedometer
Youcanconvertthespeedometerfrommphtokm/hor
km/htomph.
1.Positionthemachineonalevelsurface,shutoffthe
engine,engagetheparkingbrake,andremovethekey
fromtheignitionswitch.
2.Removethehood;refertoRemovingtheHood(page
38).
3.Locatethe2loosewiresnexttothespeedometer.
4.Removetheconnectorplugfromtheharnesswireand
connectthewirestogether.
Note:Thespeedometerswitchestokm/hormph.
5.Installthehood.
