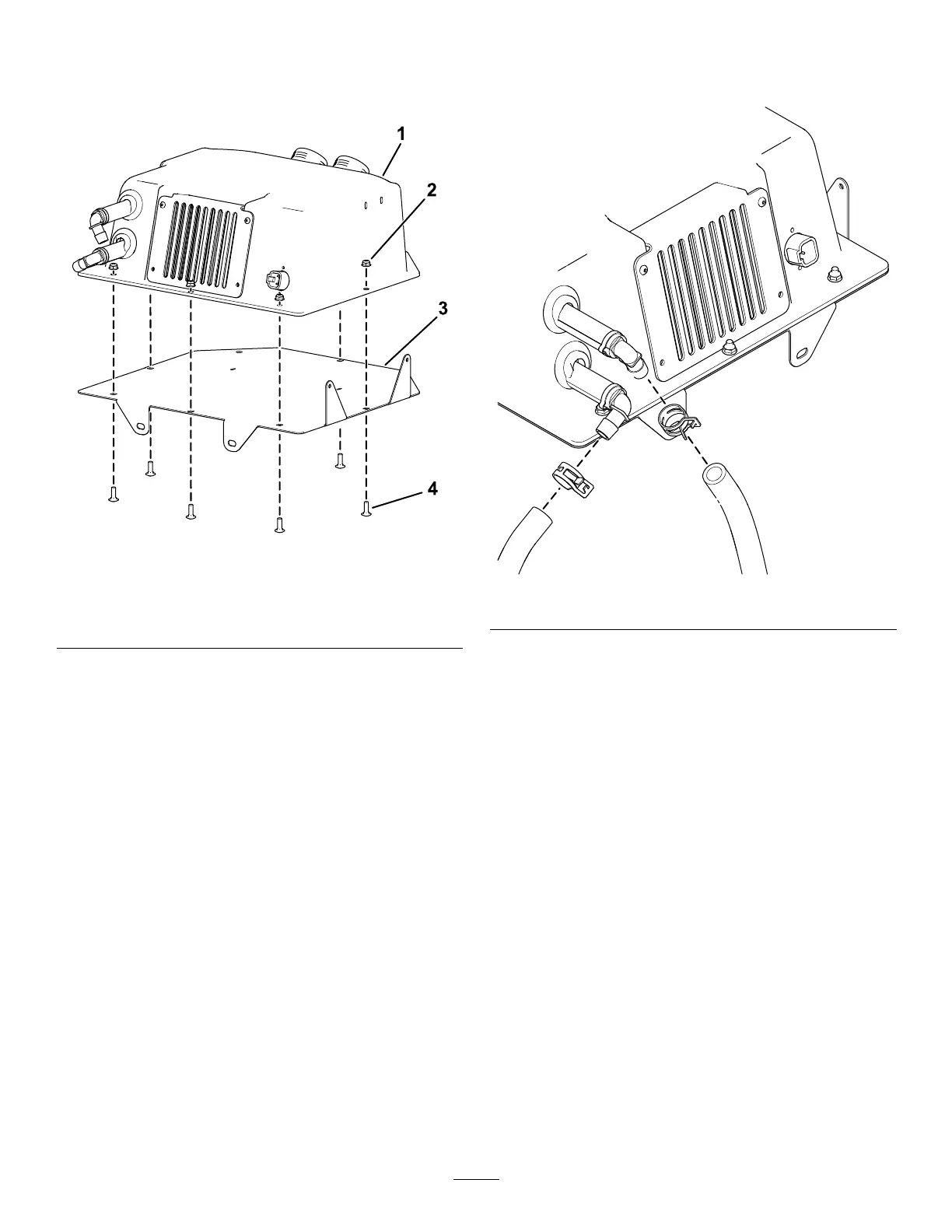

6. Attach the heater box assembly to the heater
mount bracket with 6 carriage bolts (1/4 x 3/4
inch) and 6 locknuts (1/4 inch); refer to Figure
15 . T orque the bolts to 1 1 N∙m (100 in-lb).
g460444
Figure 15
1. Heater box assembly 3. Heater mount bracket
2. Locknut (1/4 inch) 4. Carriage bolt (1/4 x 3/4
inch)
7. Connect the 2 coolant hoses onto the front of
the heater box with 2 band clamps as shown in
Figure 16 .
g460443
Figure 16
9
