1800 POWER CURVE
6 Service Instruction TSN0001a

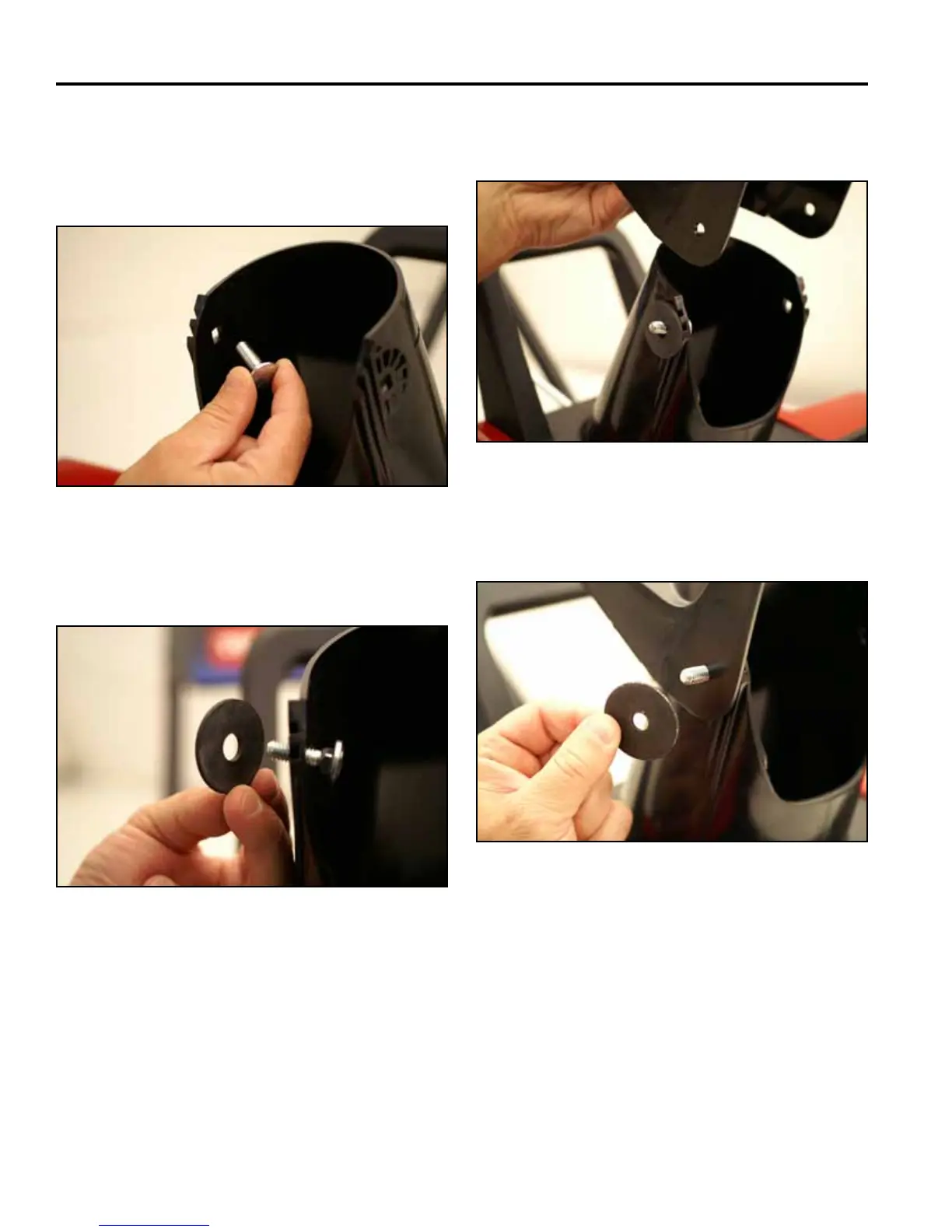

Discharge Chute Installation
1. Partially insert a carriage bolt through the lower
chute (Fig. 019).
3. Positionthedeectorchuteontothelowerchuteand
align the mounting holes (Fig. 021).
2. Insert a rubber washer onto the carriage bolt (Fig.
020).
4. Insertametalatwasherontothecarriagebolt(Fig.
022).
Fig. 019 PICT-1471
Fig. 020 PICT-1474
Fig. 022 PICT-1478
Fig. 021 PICT-1476
