8

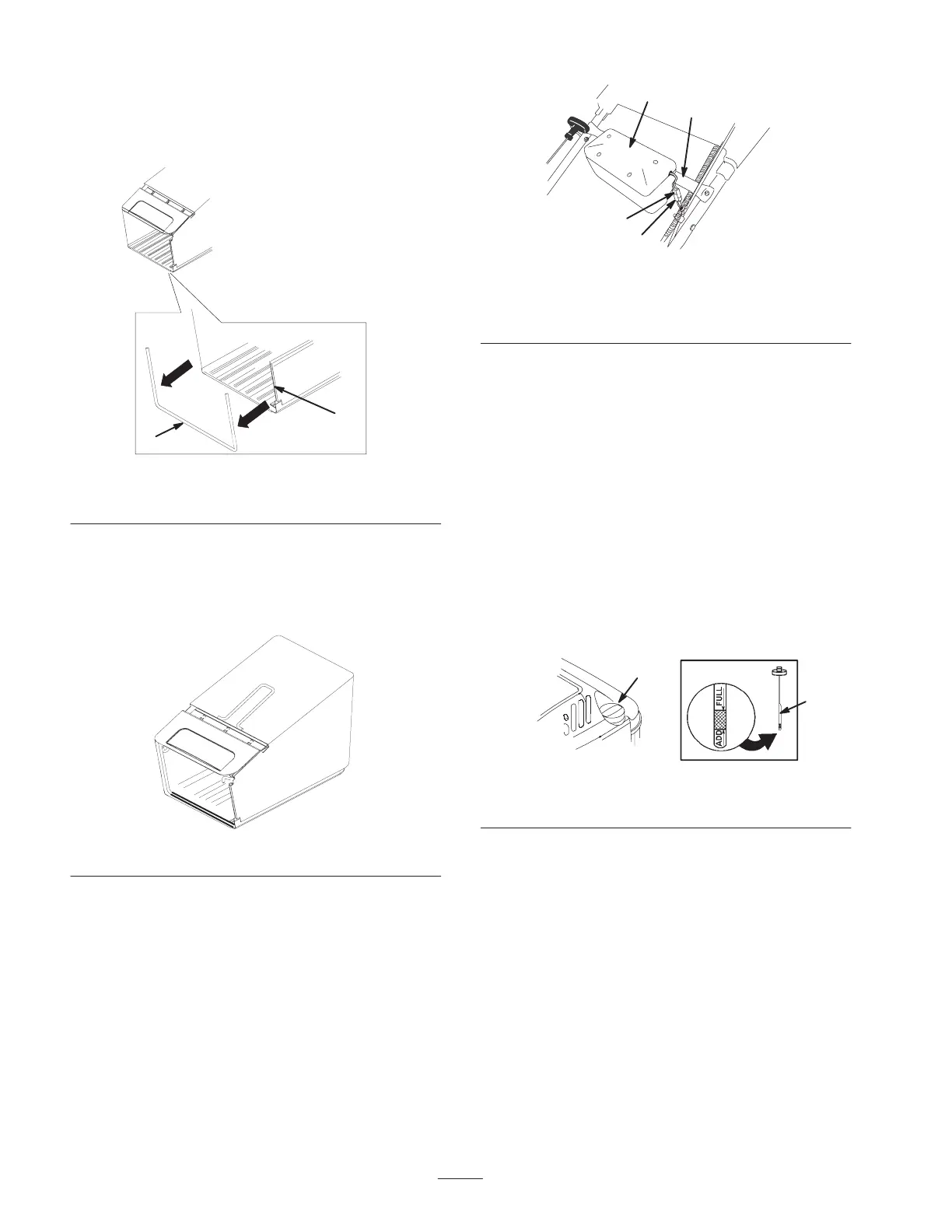

Assembling the Grass Bag
1. Attach the two side channels of the grass bag to the
grass bag frame as shown in Figure 5.
1
2
m-4798a
Figure 5
1. Grass bag frame 2. Side channel (2)
Note: Start on one end of the channel and push it onto
the frame.
2. Ensure that the sides of the bag base are inside the bag
frame as shown in Figure 6.
Figure 6
Installing the Battery
Electric-start Model only
1. Charge the battery. Refer to Charging the Battery on
page 20.
2. Align the pins in the battery case with the holes in the
battery bar, and lower the pins into the holes until the
battery case snaps into place (Fig. 7).
1
2
3
4
m–5182a
Figure 7
1. Battery case
2. Battery bar
3. Wire lead from battery
4. Wire lead from harness
3. Connect the wire lead from the battery to the wire lead
from the electrical wire harness in the corrugated tube
(Fig. 7).
Before Starting
Filling the Crankcase with Oil
The crankcase can hold 22 ounces (0.65 liters) of oil. Use
only high-quality, SAE 30 or SAE 10W30 weight detergent
oil that has the American Petroleum Institute (API) service
classification SF, SG, SH, or SJ.
Before each use, ensure that the oil level is between the
Add and the Full marks on the dipstick (Fig. 8).
1626
1
2
Figure 8
1. Oil fill cap 2. Dipstick
To add oil:
1. Move the lawn mower to a level surface.
2. Clean around the dipstick (Fig. 8).
3. Remove the dipstick by rotating the cap
counterclockwise and pulling it out.
4. Wipe the dipstick clean with a clean cloth.
5. Fully insert the dipstick into the filler neck, then remove
it.
Note: To ensure an accurate oil level reading, you must
fully install the dipstick.
6. Read the oil level on the dipstick (Fig. 8).
