17
1
2
m–5190

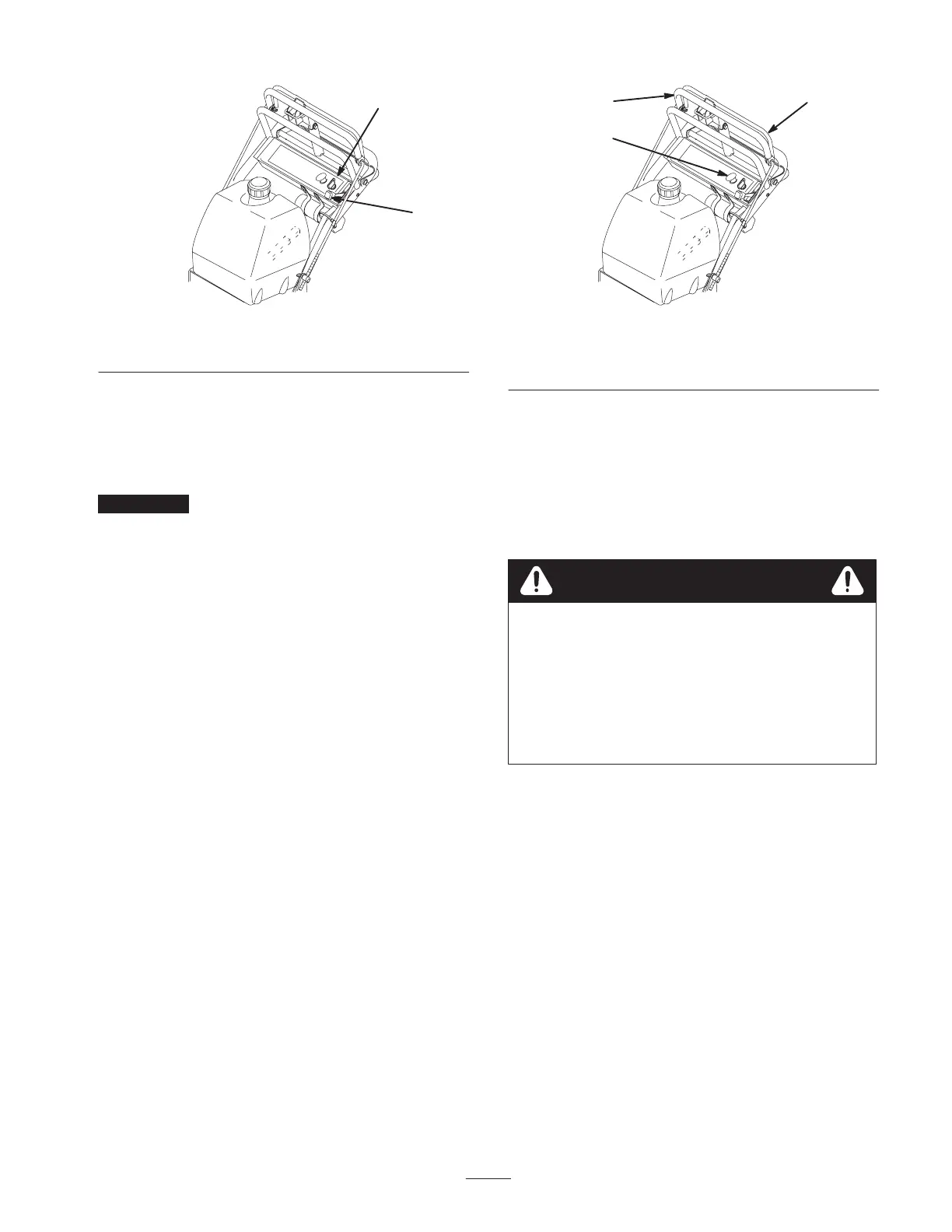

Figure 14
1. Throttle lever 2. Ignition key
4. Set the parking brake.
5. Pull wire off spark plug(s) to prevent possibility of
accidental starting before storing machine.
6. Close fuel shut off valve before storing machine.
Important Make sure fuel shut off valve is closed
before transporting or storing machine, as fuel leakage
may occur.
Operating Mower Blade
Control (PTO)
The blade control switch (PTO) in conjunction with the
blade control bail engages and disengages power to the
electric clutch and mower blades.
Engaging the Mower Blades (PTO)
1. Release the upper control bar to stop the machine
(Fig. 15).
2. To engage blade, squeeze blade control bail against
upper control bar (Fig. 15).
3. Pull blade switch (PTO) up and release. Hold blade
control bail against control bar while operating.
4. Repeat procedure to engage mower blades if blade
control bail is released.
1
3
2
m–5190
Figure 15
1. Upper control bar
2. Blade control bail
3. Blade control switch
(PTO)
Disengaging the Mower Blades (PTO)
1. Releasing blade control bail to disengage blades
(Fig. 15).
The Safety Interlock System
If safety interlock switches are disconnected or
damaged the machine could operate unexpectedly
causing personal injury.
• Do not tamper with the interlock switches.
• Check the operation of the interlock switches
daily and replace any damaged switches before
operating the machine.
Caution
Understanding the Safety Interlock
System
The safety interlock system is designed to prevent the
mower blades from rotating unless:
• The control bail is depressed
• The blade control switch (PTO) is pulled “ON”
The safety interlock system is designed to stop the mower
blades if you released the blade control bail.
Testing the Safety Interlock System
Test the safety interlock system before you use the
machine each time. If the safety system does not operate
as described below, have an Authorized Service Dealer
repair the safety system immediately.
