Toro 30363N - Belt Maintenance; Checking the Alternator Belt; Replacing the Blade Drive Belts

BeltMaintenance
CheckingtheAlternatorBelt
ServiceInterval:Every200hours
Aftertherst10hours
Checktensionofalternatorbelt(
Figure56)afterevery
200operatinghours.
1.Apply10lbofforcetothealternatorbelt,midway
betweenthepulleys.
2.Ifthedeectionisnot3/8in.(10mm),loosenthe
alternatormountingbolts.

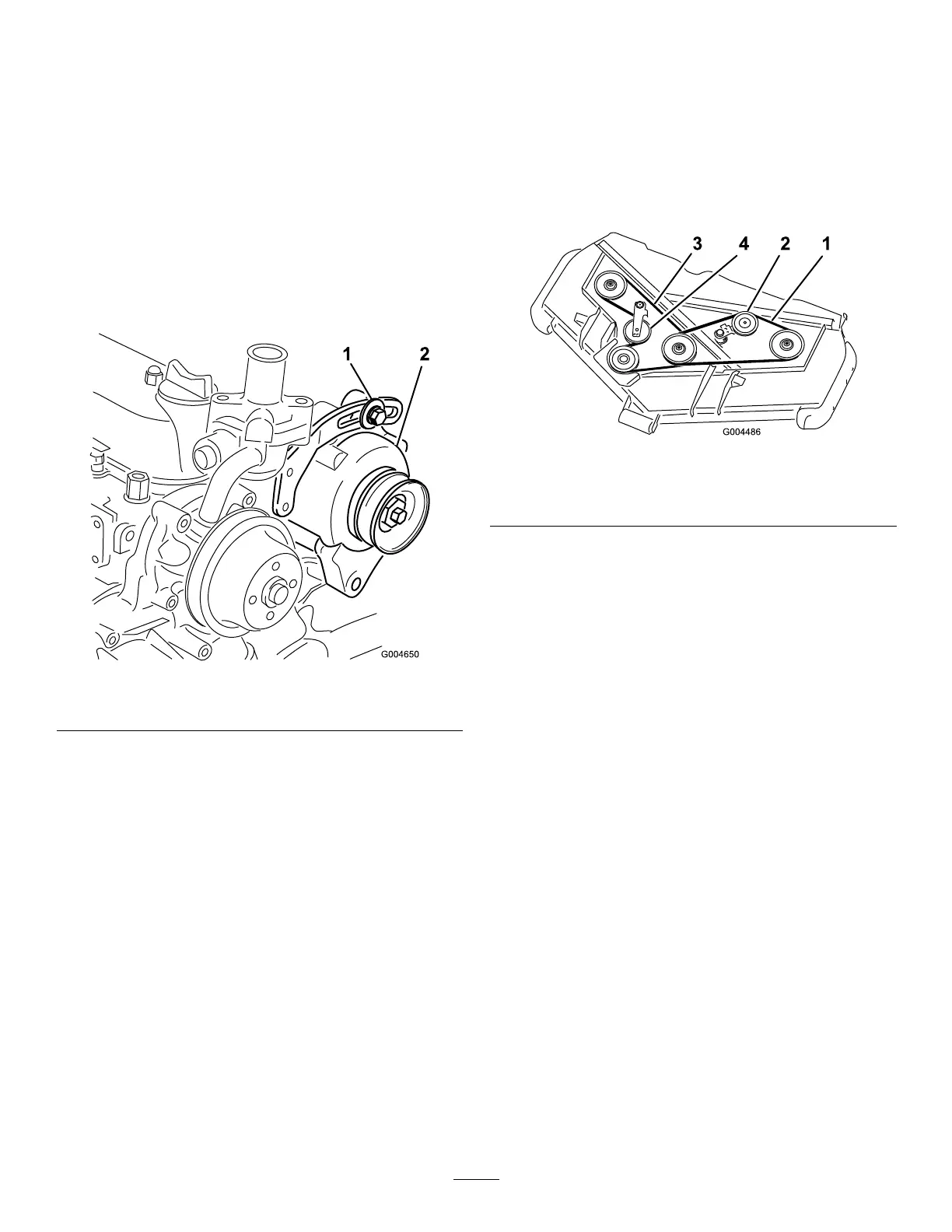

Figure56
1.Mountingbolt2.Alternator
3.Increaseordecreasethealternatorbelttensionand
tightenthebolts.
4.Checkthedeectionofthebeltagaintoensurethat
thetensioniscorrect.
ReplacingtheBladeDrive
Belts
ServiceInterval:Every50hours
Thebladedrivebelts,tensionedbythespringloaded
idlerpulleys,areverydurable.However,aftermany
hoursofuse,thebeltswillshowsignsofwear.Signsof
awornbeltare:squealingwhenbeltisrotating,blades
slippingwhencuttinggrass,frayededges,burnmarks
andcracks.Replacethebeltsifanyoftheseconditions
areevident.
1.Lowerthecuttingunittothe1inchheightofcut
setting,movethethrottlelevertotheSlowposition,
stoptheengine,settheparkingbrake,andremove
theignitionkey.
2.Removethebeltcoversfromthetopofthecutting
unitandsetthecoversaside.
3.Usingabreakerbarorsimilartool,movetheidler
pulleyforthetopbelt(
Figure57)awayfromthetop
drivebelttoreleasethebelttensionandallowthe
belttobeslippedoffthepulleys.
Figure57
1.Topbelt3.Bottombelt
2.Topidlerpulley4.Bottomidlerpulley
4.Usingabreakerbarorsimilartool,movetheidler
pulleyforthebottombelt(Figure57)awayfrom
thebottomdrivebelttoreleasethebelttensionand
allowthebelttobeslippedoffthepulleys.
5.Routeanewbeltaroundthegearboxpulley,bottom
spindlepulleys,andidlerpulleyassemblyasshown
in
Figure57.
6.Routeanewbeltaroundthetopspindlepulleysand
idlerpulleyassemblyasshownin
Figure57.
7.Installthebeltcovers.
49
