Toro 30366 - Adjusting the Rollers; Adjusting the Skids

Figure10
7.Securetheadjustmentwiththeclevispinandhair
pin.
Note:Positiontheheadoftheclevispintoward
thefrontofthedeck,ifpossible.
Note:Whenusing1inch(25mm),1-1/2inch(38
mm),oroccasionally2inch(51mm)height–of–cut,
movetheskidsandrollertothehighestholes.

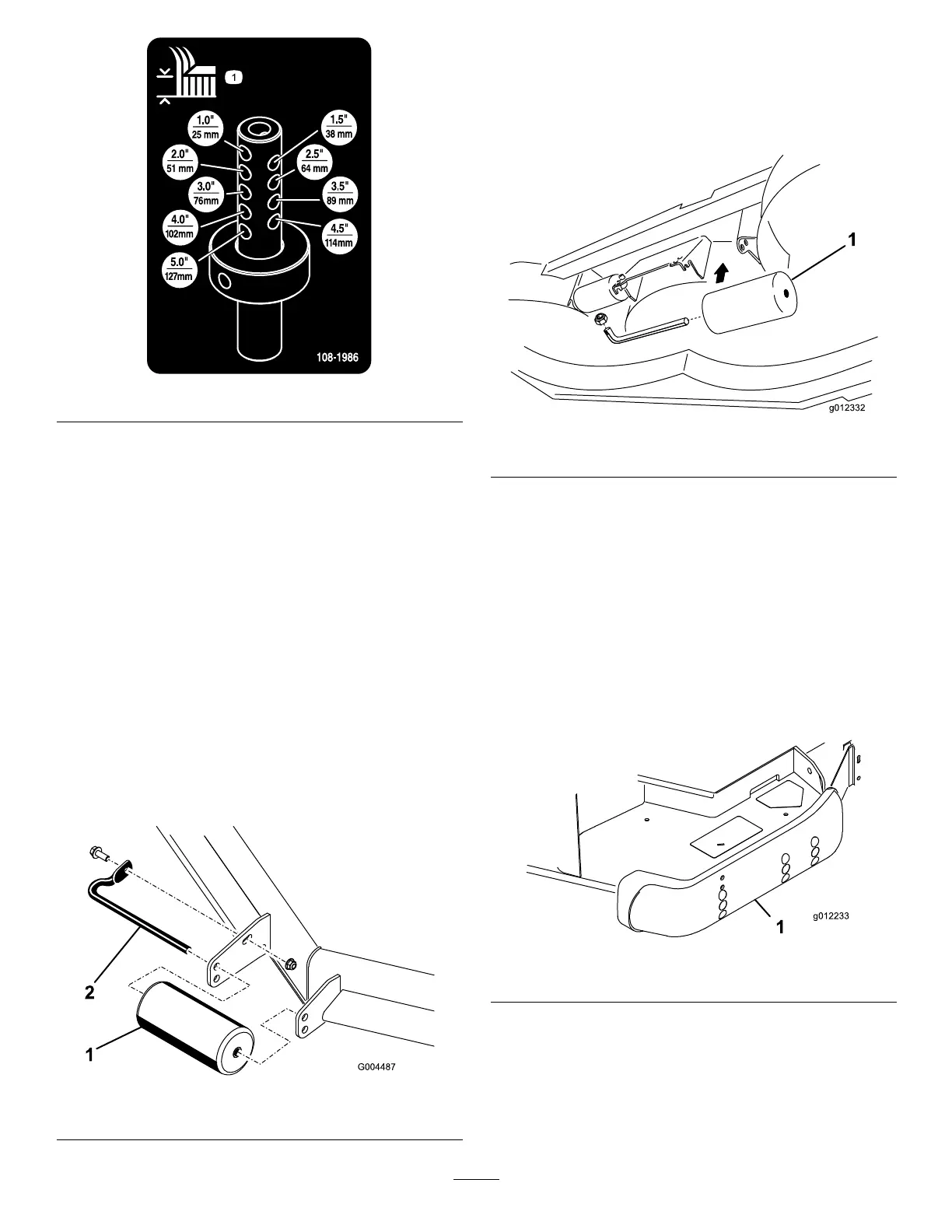

AdjustingtheRollers
Note:Ifthecuttingunitistobeusedinthe1or1-1/2
in.(25or38mm)height-of-cutsetting,thecuttingunit
rollersmustberepositionedinthetopbracketholes.
Toadjustthefrontrollers(
Figure11).
1.Removethescrewandnutsecuringtherollershaft
tothedeckbracket.
Figure11
1.Roller
2.Rollershaft
2.Slidetheshaftoutofthelowerbracketholes,align
therollerwiththetopholes,andinstalltheshaft.
3.Installthescrewandnuttosecuretheassemblies.
Toadjusttherear(internal)rollers(Figure12)
Figure12
1.Internalrollers
AdjustingtheSkids
Theskidsshouldbemountedinthelowerposition
whenoperatinginheightofcutsgreaterthan2-1/2
inches(64mm)andinthehigherpositionwhen
operatinginheightofcutslowerthan2-1/2inches(64
mm).
Adjusttheskidsbyremovingtheangeboltandnuts,
positioningthemasdesired,andinstallingthefasteners
(
Figure13).
Figure13
1.Skid
14
