Toro 30366 - Adjusting the Anti-Scalp Rollers; Adjusting the Flow Baffle; Positioning the Flow Baffle

AdjustingtheAnti-Scalp
Rollers
Wheneveryouchangetheheight-of-cut,itis
recommendedtoadjusttheheightoftheanti-scalp
rollers.
1.Afteradjustingtheheight-of-cut,adjusttherollers
byremovingtheangenut,bushing,spacer,and
bolt(
Figure14).

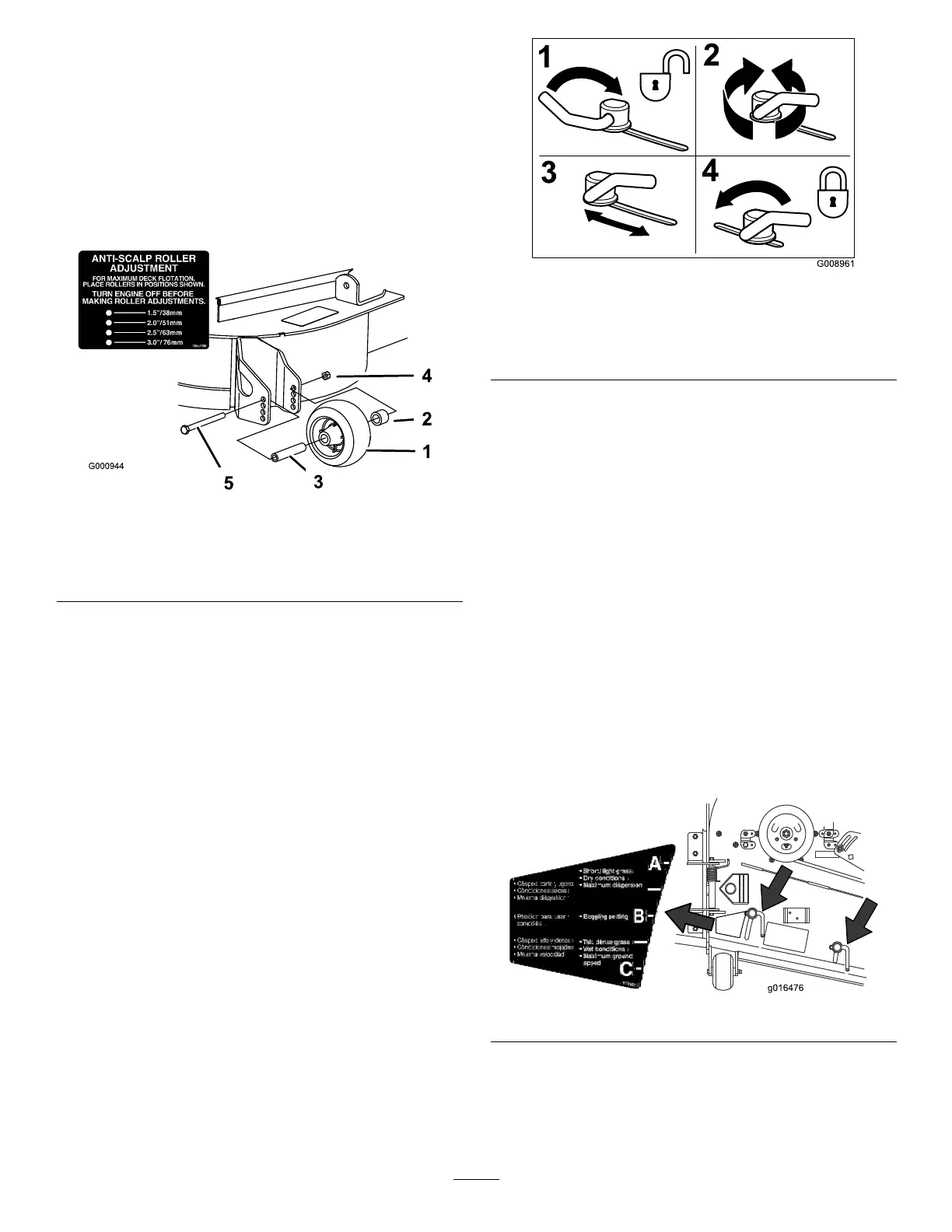

Figure14
1.Anti-scalproller4.FlangeNut
2.Spacer
5.Bolt
3.Bushing
2.Selectaholesotheanti-scalprollerispositionedto
thenearestcorrespondingheight-of-cutdesired.
3.Installtheangenut,bushing,spacer,andbolt.
Torqueto40-45ft-lb(54-61N-m)(Figure14).
AdjustingtheFlowBafe
Themowerdischargeowcanbeadjustedfordifferent
typesofmowingconditions.Positionthecamlocks
andbafetogivethebestqualityofcut.
1.Toadjustthecamlocks,swingtheleverupto
loosenthecamlock(Figure15).
2.Adjustthebafeandcamlocksintheslotstothe
desireddischargeow .
3.Swingtheleverbackovertotightenthebafeand
camlocks(Figure15).
4.Ifthecamlocksdonotlockthebafeintoplace
oritistootight,loosentheleverandthenrotate
thecamlock.Adjustthecamlockuntilthedesired
lockingpressureisachieved.
G008961
1
2
3
4
Figure15
1.Unlocklever
3.Positionthebafe
2.Rotatethecamlockto
increaseordecrease
lockingpressure
4.Locklever
PositioningtheFlowBafe
Thefollowingguresareonlyrecommendationsfor
use.Adjustmentswillvarybygrasstype,moisture
content,andheightofgrass.
Note:Iftheenginepowerdrawsdownandthemower
groundspeedisthesame,openupthebafe.
PositionA
Thisisthefullrearposition.Thesuggesteduseforthis
positionisafollows.
•Useforshort,lightgrassmowingconditions.
•Useindryconditions.
•Forsmallergrassclippings.
•Propelsgrassclippingsfartherawayfromthe
mower.
Figure16
PositionB
Usethispositionwhenbagging.Alwaysalignitwith
thebloweropening.
15
