Lubrication
ServiceInterval:Every50hours
Themachinehasgreasettingsthatmustbelubricated
regularlywithNo.2GeneralPurposeLithiumBase
Grease.Ifthemachineisoperatedundernormal
conditions,lubricateallbearingsandbushingsafter
every50hoursofoperationorimmediatelyafterevery
washing.
1.Lubricatethefollowingareas:
•Castorforkshaftbushings(2)(
Figure20)

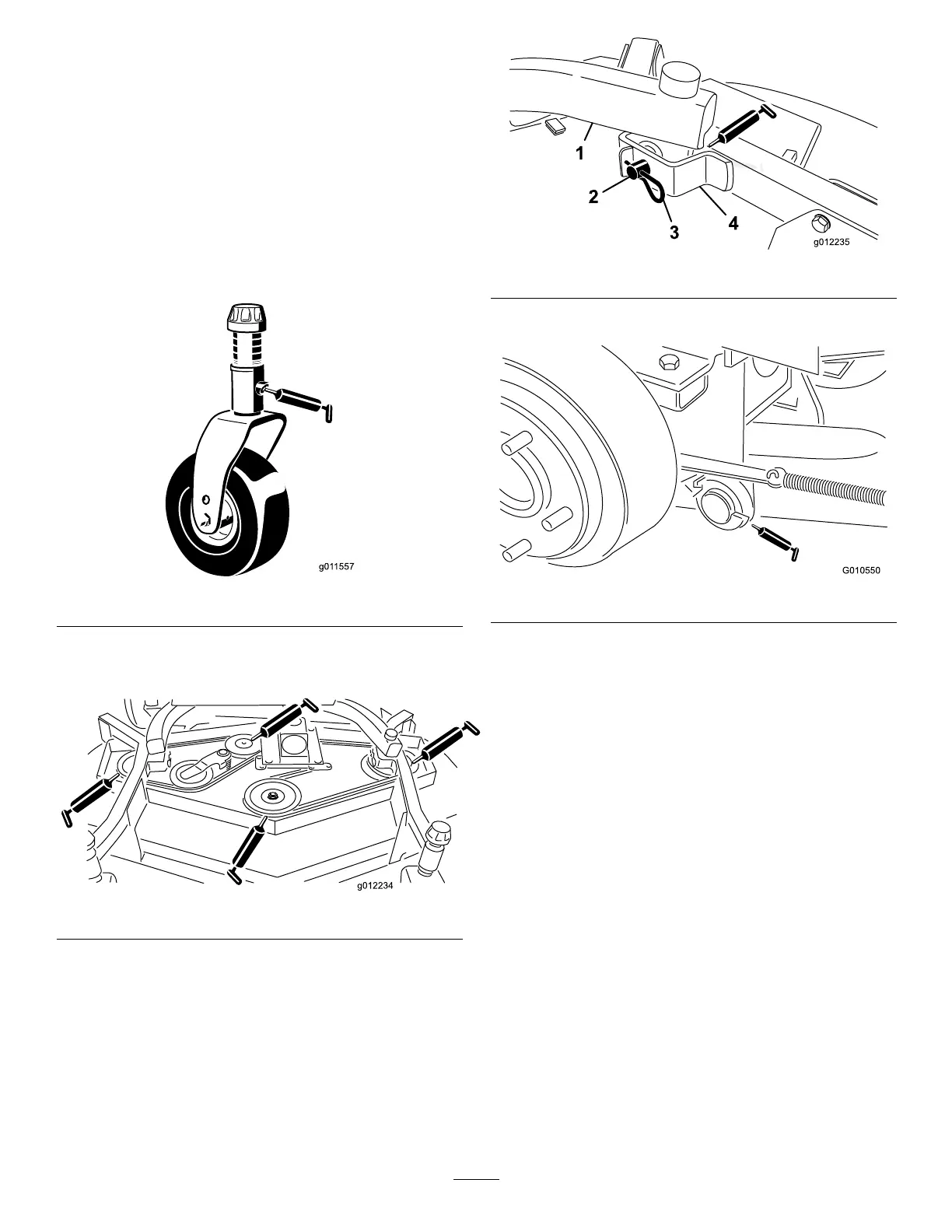

Figure20
•Spindleshaftbearings(3)(locatedunderthe
pulley)(Figure21)
Figure21
•Idlerarmshaftbearings(Figure21)
•Liftarmpivots,front(2)(Figure22)
Figure22
•Liftarmpivots,rear(2)(Figure23)
Figure23
2.Positionthemachineandcuttingunitonalevel
surfaceandlowerthecuttingunit.Removethe
dipstick/llplugfromthetopofthegearbox
(Figure24)andmakesurethatthelubricantis
betweenthemarksonthedipstick.Ifthelubricant
levelislow,addSAE80-90wt.gearlubeuntilthe
levelisbetweenthemarks.Thegearboxcapacity
is12oz.(283ml).
