4.Installtheboltandnut.PlacetherighthandJhookend
ofthespringaroundthegrassdeector(Figure71).
Important:Thegrassdeectormustbeableto
lowerdownintoposition.Liftthedeectorupto
testthatitlowersintothefulldownposition.
CabMaintenance
CleaningtheCabAirFilters
ServiceInterval:Every250hours(Replacethemiftheyare
tornorexcessivelydirty.)

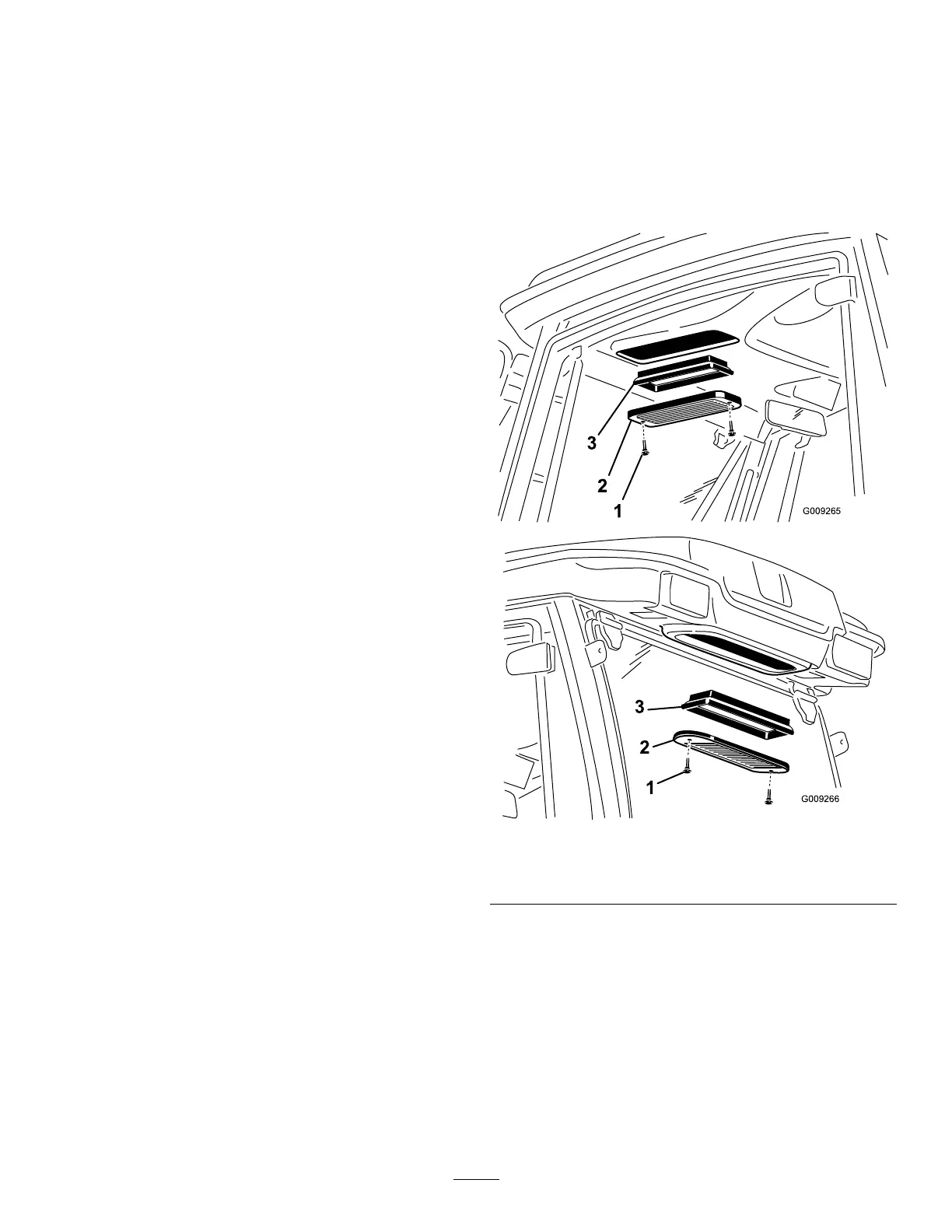

1.Removethethumbscrewsandgratesfromoverboth
thein-cabandrearcabairlters(Figure72).
G009265
1
2
3
G009266
1
2
3
Figure72
1.Thumbscrew
3.Airlter
2.Grate
2.Cleantheltersbyblowingclean,oilfree,compressed
airthroughthem.
Important:Ifeitherlterhasahole,tear,orother
damage,replaceit.
3.Installtheltersandgrate,securingthemwiththe
thumbscrews.
