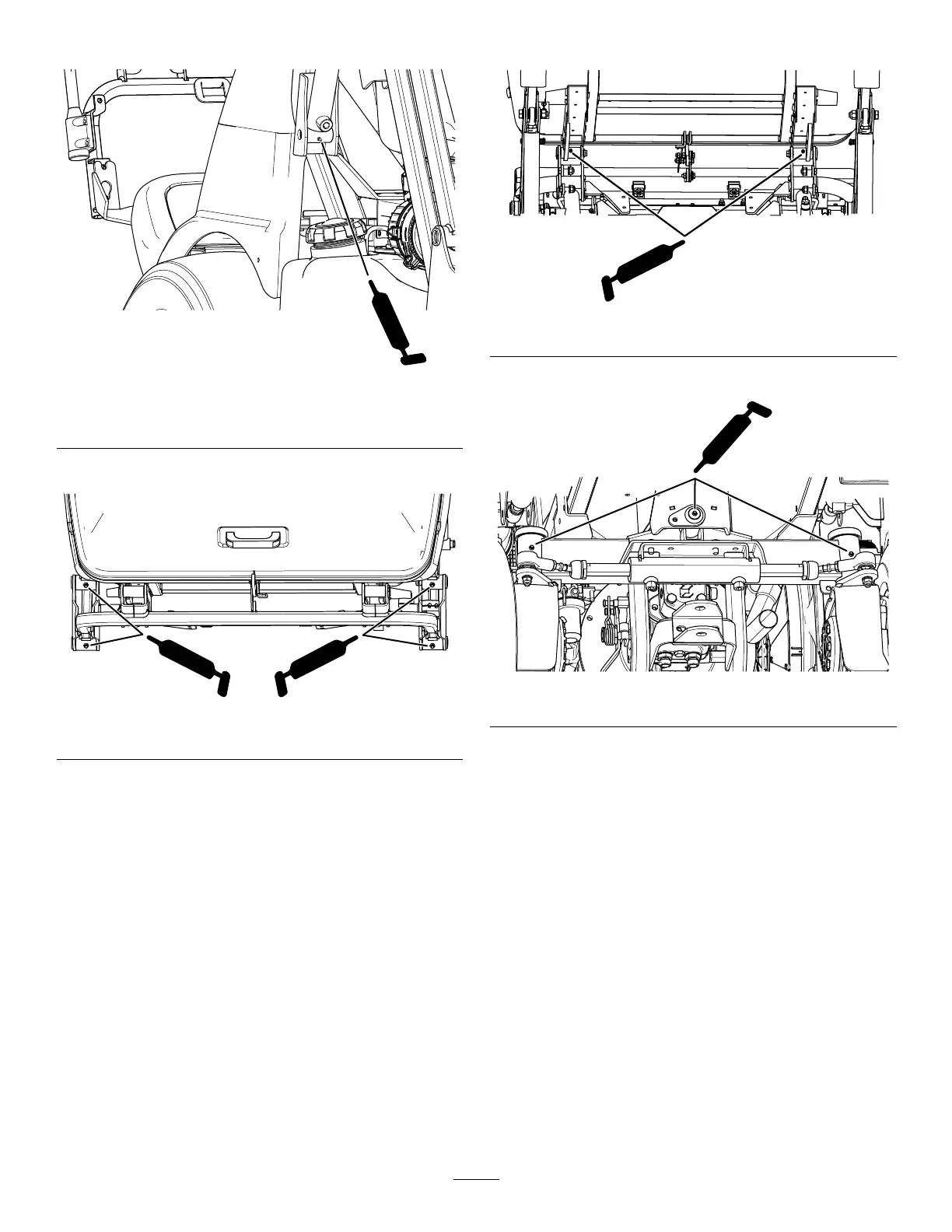

•Hopperarms—lower,front(Figure48)
g215132
Figure48
Leftsideshown;repeatonotherside
•Hopperarms—lower,rear(Figure49)
g215064
Figure49
•Hopperpivotsunderthehopper(Figure50)
g318013
Figure50
•Steeringpivotpoints(Figure51)
g215063
Figure51
