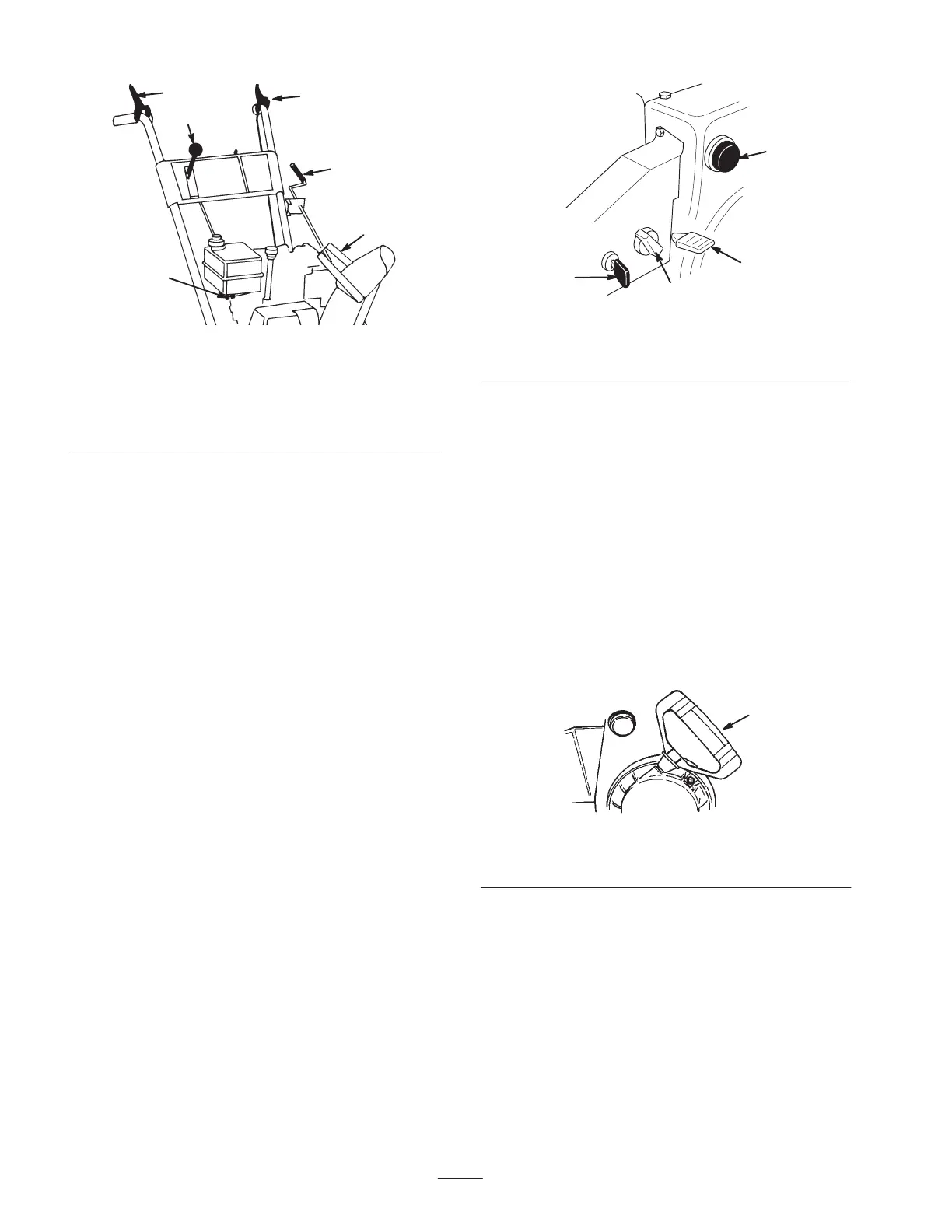

Figure 15
1. Auger/impeller drive
control lever
2. Traction control lever
3. Speed selector
4. Discharge chute control
5. Chute deflector handle
6. Fuel shutoff valve
• Traction Control Lever (Fig. 15)—To engage the
traction (wheel drive), press the lever against the left
handgrip. To stop the traction, release the lever.
• Speed Selector (Fig. 15)—This control has 7 positions:
5 forward and 2 reverse gears. To change speeds, move
the speed selector to the desired position. The lever
locks in a notch at each speed selection. The speed
selector may shift with difficulty in heavy load
conditions.
Note: Before shifting gears into or out of reverse, you
must release the traction control lever. You may shift
between any of the forward speeds without releasing the
traction control lever.
• Discharge Chute Control (Fig. 15)—Rotate the
discharge chute control clockwise to move the
discharge chute to the left; counterclockwise to move
the chute to the right.
• Chute Deflector Handle (Fig. 15)—Move the deflector
handle forward to move the snow stream down; move it
rearward to move the snow stream up.
• Fuel Shutoff Valve (Fig. 15)—Close the valve by
rotating it clockwise. Open the valve by rotating it
counterclockwise. Close the valve when you do not use
the snowthrower.
• Ignition Switch (Fig. 16)—Insert the key before
starting the engine. To stop the engine, remove the key.
4
3
2
m–4034
1
Figure 16
1. Ignition switch
2. Choke
3. Throttle
4. Primer
• Choke (Fig. 16)—Rotate the choke clockwise to the On
position to start a cold engine. As engine warms up,
gradually rotate the choke counterclockwise to the Off
position.
• Throttle (Fig. 16)—Move the throttle upward to
increase the engine speed; move it downward to
decrease the engine speed. Move the throttle to the Stop
position to stop the engine.
• Primer (Fig. 16)—Press the primer to pump a small
amount of gasoline into the engine for improved
cold-weather starting.
• Recoil Starter (Fig. 17)—The recoil starter is on the
back side of the engine. Pull the recoil starter to start the
engine.
