RotorInstallation(continued)

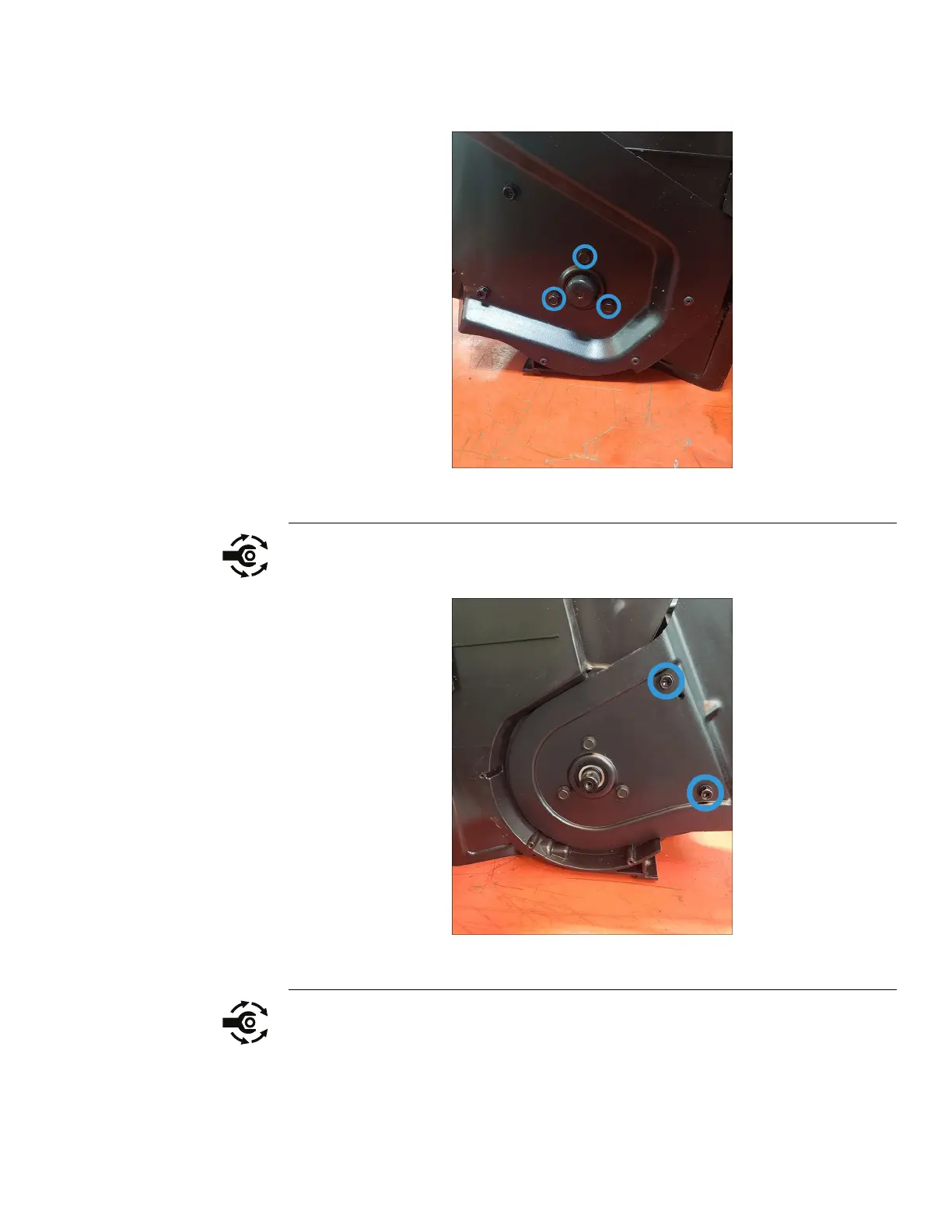

4.Installthe3screwssecuringtheRHframeplatetothehousingandRH
extension.T orquethescrewsto5–6.8N•m(45–60in-lb).
g320293
Figure27
5.Installthe2screwsecuringtheLHframeplatetothehousing.Torquethe
screwsto2.8–4N•m(25–35in-lb).
g320272
Figure28
6.Installthe3screwssecuringtheLHframeplatetothehousingandtheLH
extension.T orquethescrewsto5–6.8N•m(45–60in-lb).
60VMAXe21PowerClear®SnowThrowerwith
Flex—ForcePowerSystem®ServiceManual
Page5–11
DriveSystem:ServiceandRepairs
3438-775RevA
