ChuteGearRemoval(continued)
g320297

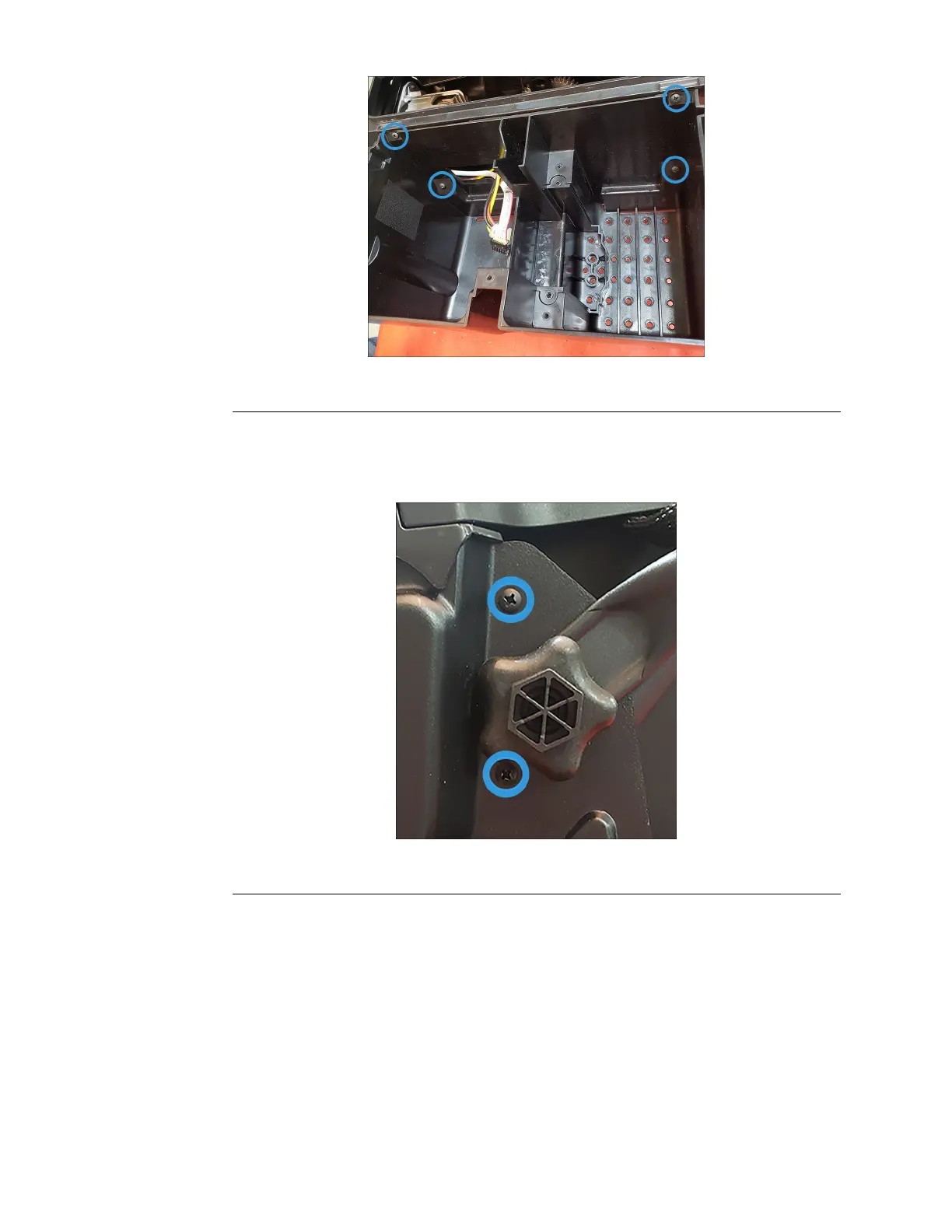

Figure34
10.Removethe3screwssecuringtheshroudtotherearchute.Removethe
shroudfromtherearchute.
11.Removethe2screwssecuringtheLHframeassemblyplatetothebulkhead.
g320271
Figure35
12.Removethe2screwssecuringtheRHframeassemblyplatetothebulkhead.
Chute:ServiceandRepairs
Page6–6
60VMAXe21PowerClear®SnowThrowerwith
Flex—ForcePowerSystem®ServiceManual
3438-775RevA
