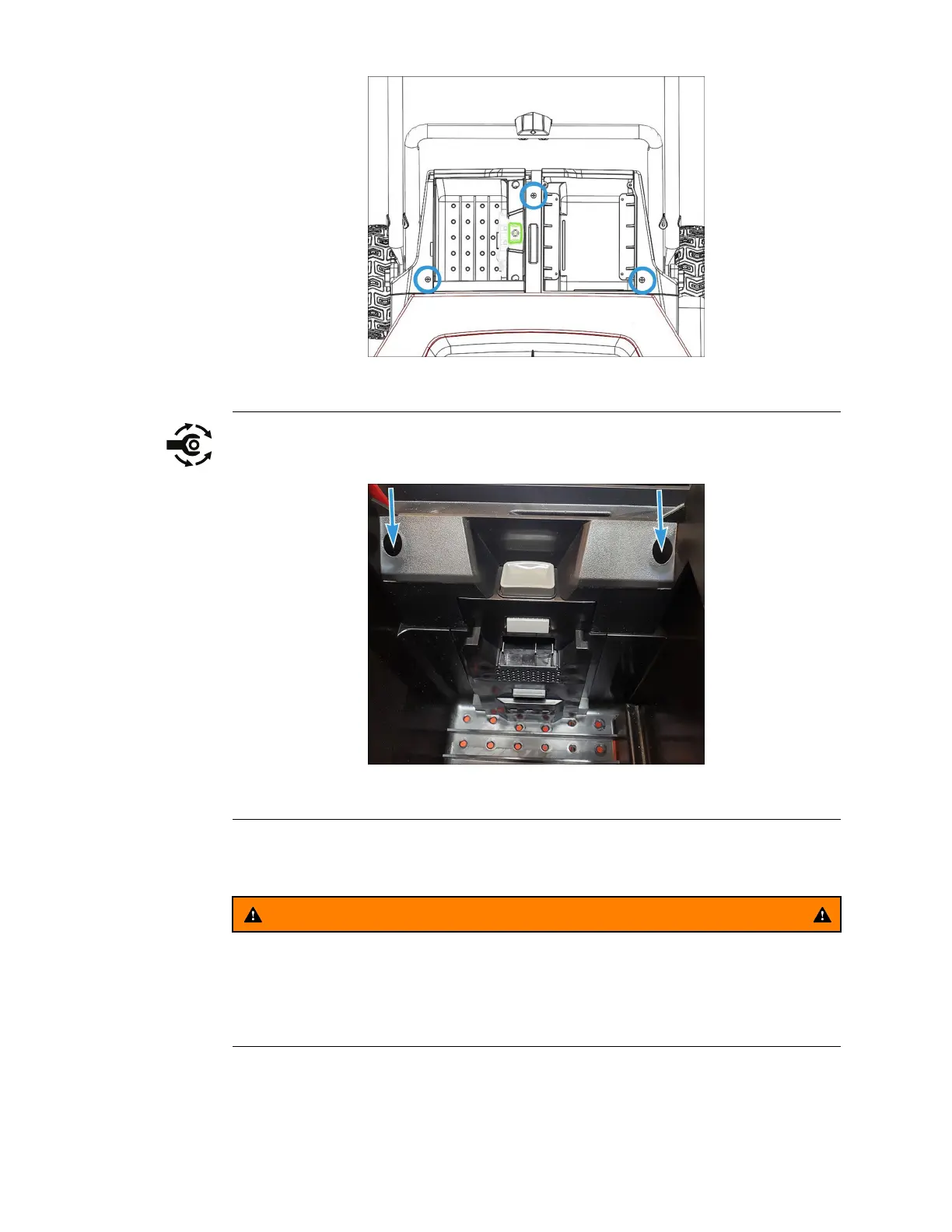

MotorInstallation(continued)
g320289
Figure89
14.Installthe2screwssecuringthebatterycontainerskirttothebattery
container.
g320276
Figure90
15.Installthemotordriverintothemachine.MotorDriverInstallation(page8–4)
16.Installthechutecontrolrod.
WARNING
Whenremovingorinstallingthebattery,donotallowthebattery
terminalstotouchanymetalpartsofthemachine.Donotallow
metaltoolstoshortbetweenthebatteryterminalsandmetalparts
ofthemachine.
17.Installthebatteryintothemachine.
Motor:ServiceandRepairs
Page8–16
60VMAXe21PowerClear®SnowThrowerwith
Flex—ForcePowerSystem®ServiceManual
3438-775RevA
