4.Whilethepulleyturns,forcethebeltoffthe
V-groove.
5.Slidethebeltofftheenginepulley.
6.Pullthebeltdownandoutoftheway.
7.Pushthebeltforwardandoutthefrontofthe
machine.
InstallingtheBelt
1.Placebeltinthetransmissionpulleygroove.
2.Gentlypulltheenginerecoilropetorotatethe
enginepulleywhileforcingthebeltintothe
V-groove.
3.Installthedrivebeltcover.

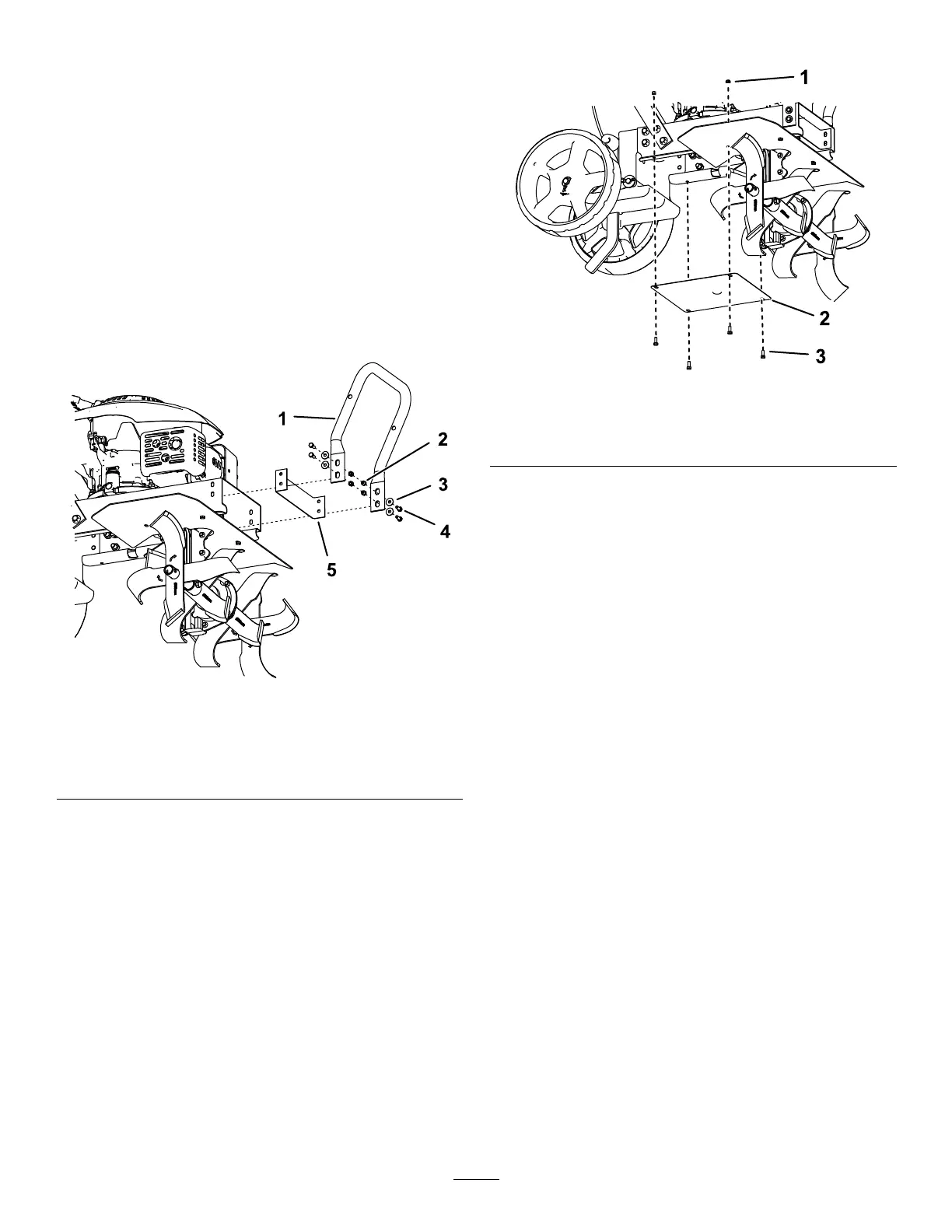

g356422
Figure30
1.Bumper
4.Bolt(4)
2.Nut(4)
5.Drivebeltcover
3.Washer(4)
4.Installthedirtshieldplate.
g356418
Figure31
1.Nut(4)3.Bolt(4)
2.Dirtshield
5.Checkthebelttension;adjustitasnecessary.
