Assembly
13
Install Front Wheels
Note: Grease axle shafts before installing
wheels
1. Install wheel onto axle.
2. Mount flat washer onto axle, insert cotter pin
and open pin ends with pliers (Fig. 1).
3. Install hub caps.
3
1
2

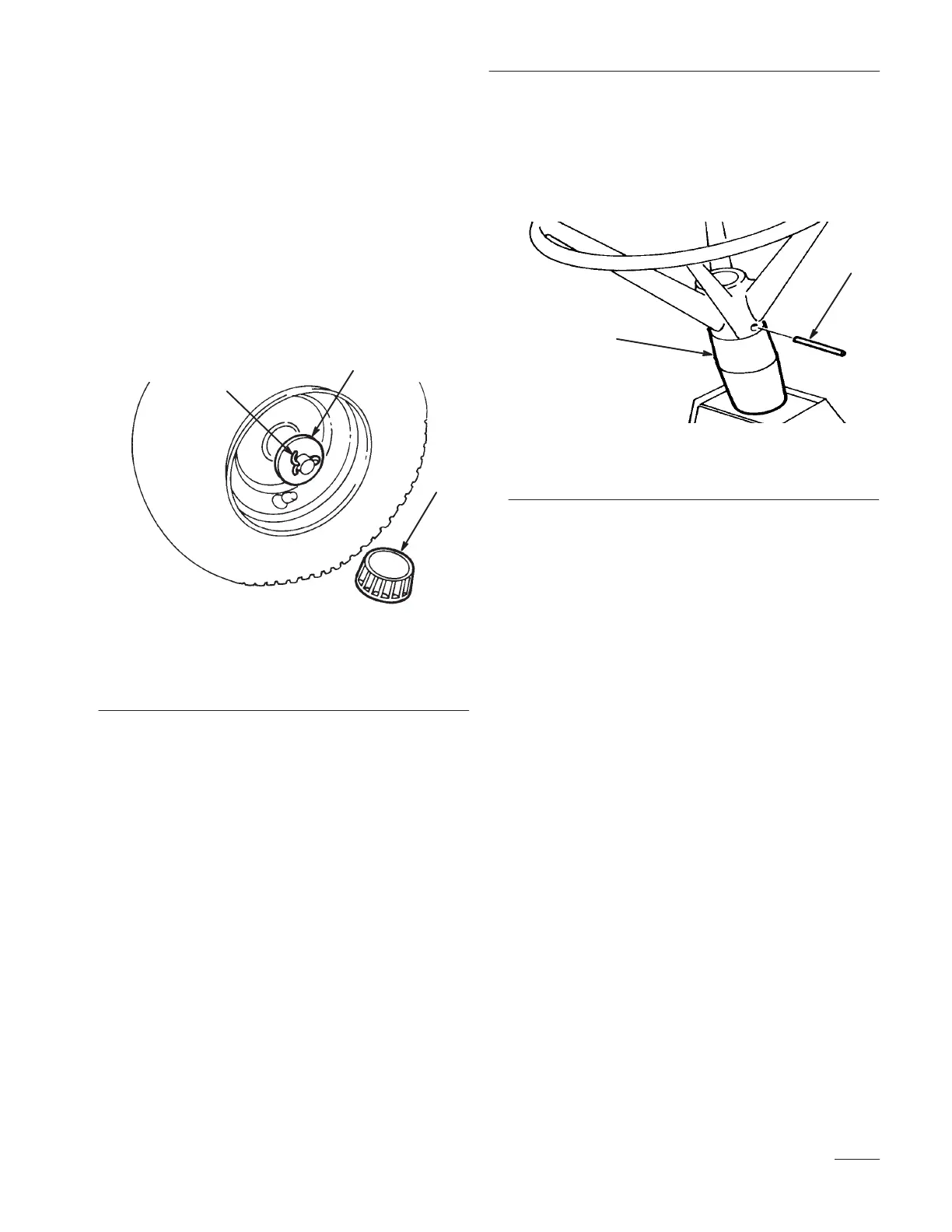

Figure 1
1. Flat washer
2. Cotter pin
3. Hub cap
4. Repeat steps 1-3 on opposite side.
5. Check front and rear tires for proper inflation.
Refer to Maintenance section under Tire
Pressure, page 33 for proper inflation pressure.
6. Lubricate both front wheels with No. 2 general
purpose grease. Pump grease gun until grease
comes through bearings. Wipe up any excess
grease.
Install Steering Wheel
1. Position wheels in straight ahead direction and
slide steering shaft cover over steering shaft.
2. Slip steering wheel over shaft and line the
steering wheel mount hole with the shaft
mounting hole (Fig. 2). Toro logo should be
readable from operator’s position.
2
1
Figure 2
1. Steering shaft cover 2. Roll pin
3. Insert a drift punch partially through the holes to
maintain alignment and insert the roll pin in
from the opposite side.
4. Drive the roll pin in until it is flush with the
outside of the wheel (Fig. 2).
Install Seat
1. Thread 2 seat spacers (rubber) into bottom of
seat (Fig. 3) in rear holes.
2. Position seat onto seat base, inserting seat switch
cable thru slot and spacer studs through the rear
mounting holes (Fig. 3). Secure loosely with two
5/16” locknuts.
3. Slide wire clamp over seat switch wire (Fig. 3).
4. Install 2 metal spacers in line with the front
holes. Insert a 5/16” x 1 1/2” (38 mm) screw
through the wire clamp and a 5/16” flat washer.
Insert this screw through the seat bracket and
spacer into the left front seat hole (Fig. 3). Install
another 5/16” x 1 1/2” (38 mm) screw with a flat
washer into the right front seat hole.
