Maintenance
26
Engine
Oil
Service Interval/Specification
Change oil:
• After the first 5 operating hours.
• After every 100 operating hours.
Oil Type: Detergent oil (API service SG or SH)
Crankcase Capacity: w/filter, 2.1 qts. (2.0 l)
Viscosity: See the table below.

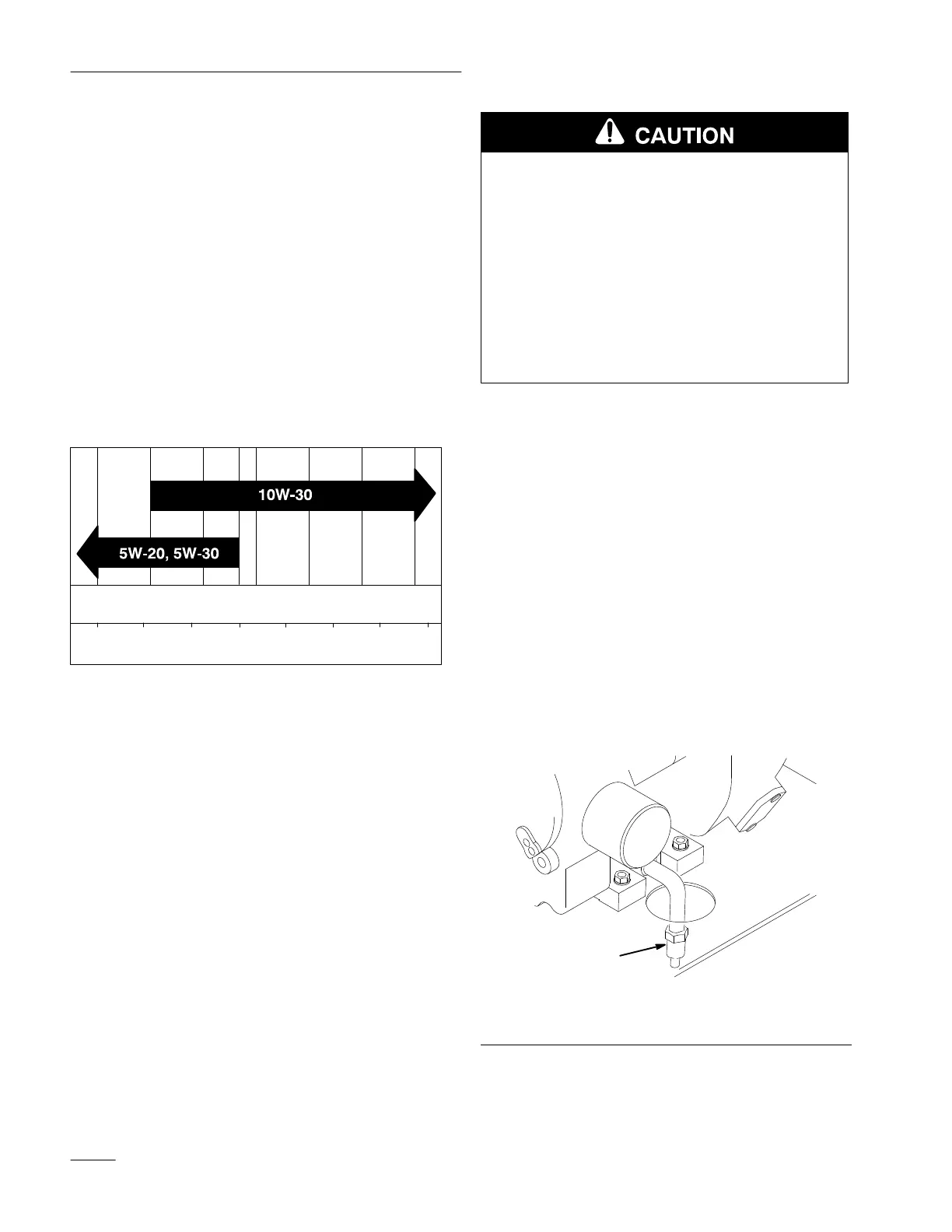

F
–20 0 20
40 60
80 100
°
C
–30
°
–20 –10
01020
30 40
USE THESE SAE VISCOSITY OILS
32
Changing/Draining the Engine Oil
1. Start the engine and let it run for five minutes.
This warms the oil so it drains better.
2. Park the machine so that the drain side is slightly
lower than the opposite side to assure the oil
drains completely. Then disengage the power
take off (PTO), set the parking brake, lower the
attachment lift, and turn the ignition key to
“STOP” to stop the engine. Remove the key.
3. Open the hood.
POTENTIAL HAZARD
• Components under the hood will be hot if
the tractor has been running.
WHAT CAN HAPPEN
• Touching hot components can cause burns.
HOW TO AV
OID THE HAZARD
• Allow the tractor to cool before performing
maintenance or touching components
under the hood.
4. Place a pan below the oil drain. Open the drain
by turning it counterclockwise 1/8 turn and
pulling out on it (Fig. 25).
5. When the oil has drained completely, close the
drain by pushing it in and turning it clockwise,
1/8 turn.
Note: Dispose of the used oil at a certified
recycling center.
6. Slowly pour approximately 80% of the specified
amount of oil into the oil filler tube (Fig. 27).
Now check the oil level; refer to Checking the
Engine Oil Level, page 11. Slowly add
additional oil to bring the oil level to the FULL
mark on the dipstick.
m–3262
1
Figure 25
1. Oil
drain
IMPORTANT: Overfilling the crankcase with
oil may cause engine damage.
