Adjusting the Height of Cut
For Machines with an Electric
Deck Lift

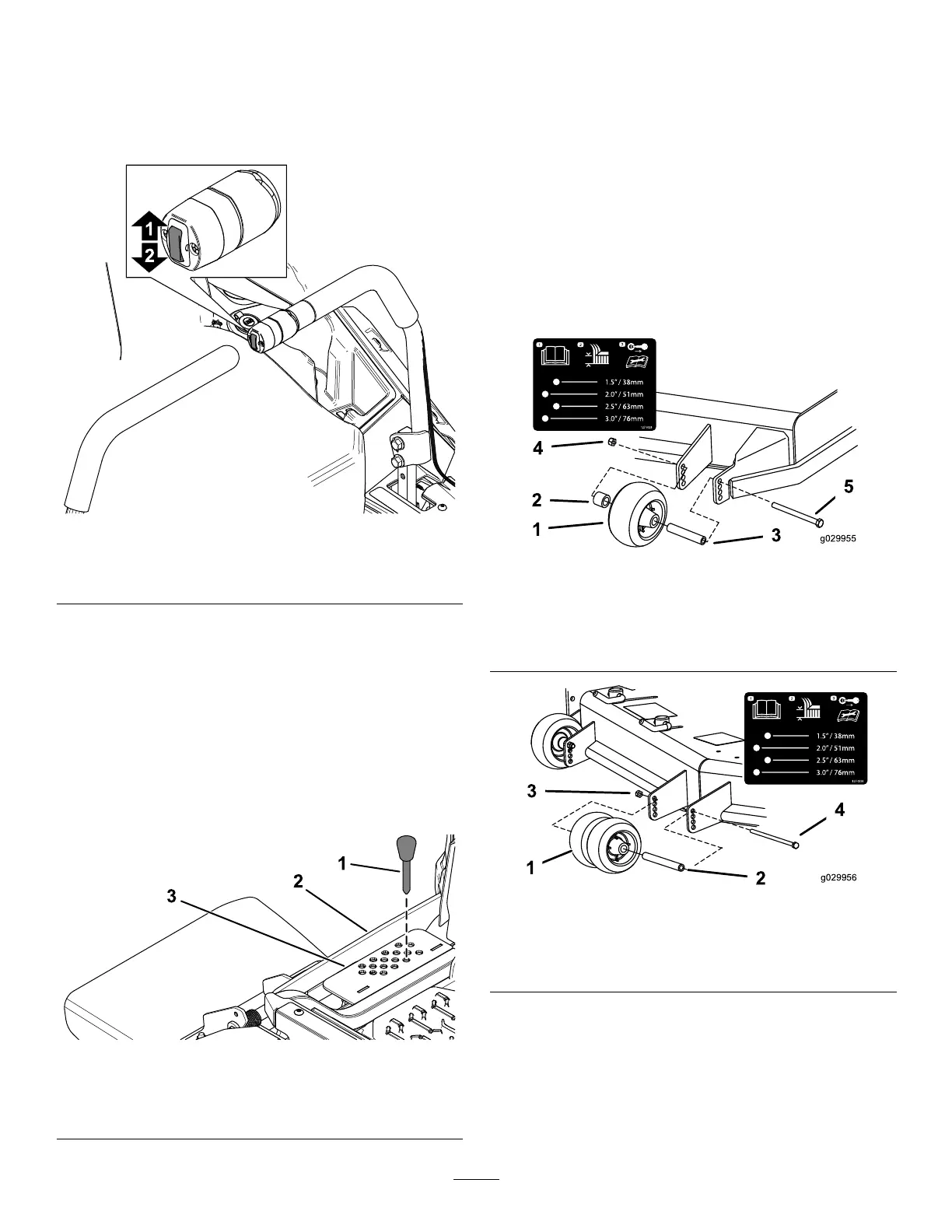

1. Push up on the deck-lift switch ( Figure 32 ).
g332765
Figure 32
1. Push up to raise the deck. 2. Push down to lower the
deck.
2. Select a hole in the height-of-cut bracket
corresponding to the height of cut desired, and
insert the pin ( Figure 33 ).
3. Push down on the deck-lift switch until the
height-of-cut linkage slightly contacts the
height-of-cut pin ( Figure 33 ).
Note: T oo much contact between the
height-of-cut linkage and height-of-cut pin can
negatively af fect the mower deck height of cut
and leveling.
g361935
Figure 33
1. Height-of-cut pin 3. Height-of-cut bracket
2. Height-of-cut linkage
Adjusting the Anti-Scalp
Rollers
Whenever you change the height-of-cut, adjust the
height of the anti-scalp rollers.
1. Park the machine on a level surface, disengage
the blade-control switch, and engage the parking
brake.
2. Shut of f the engine, remove the key , and wait
for all moving parts to stop before leaving the
operating position.
3. Adjust the anti-scalp rollers as shown in Figure
34 , Figure 35 , and Figure 36 .
g029955
Figure 34
1. Anti-scalp roller 4. Flange nut
2. Spacer
5. Bolt
3. Bushing
g029956
Figure 35
1. Anti-scalp roller 3. Flange nut
2. Bushing 4. Bolt
30
