ThefollowingarealistofitemsavailableintheStatus
ofInputsscreen:
•Systemvoltage
•Enginecommunication(highlightsifmoduleis
communicatingwithengineECU)
•PTOswitch(highlightsifpn)
•Fuelsendervoltage(showsvoltage)
•Neutralswitch(highlightsifon)
•Brakeswitch(highlightsifon)
•Seatswitch(highlightsifon)
•Oilpressureswitch(highlightsifon)
•Enginetemperature(showstemperature)

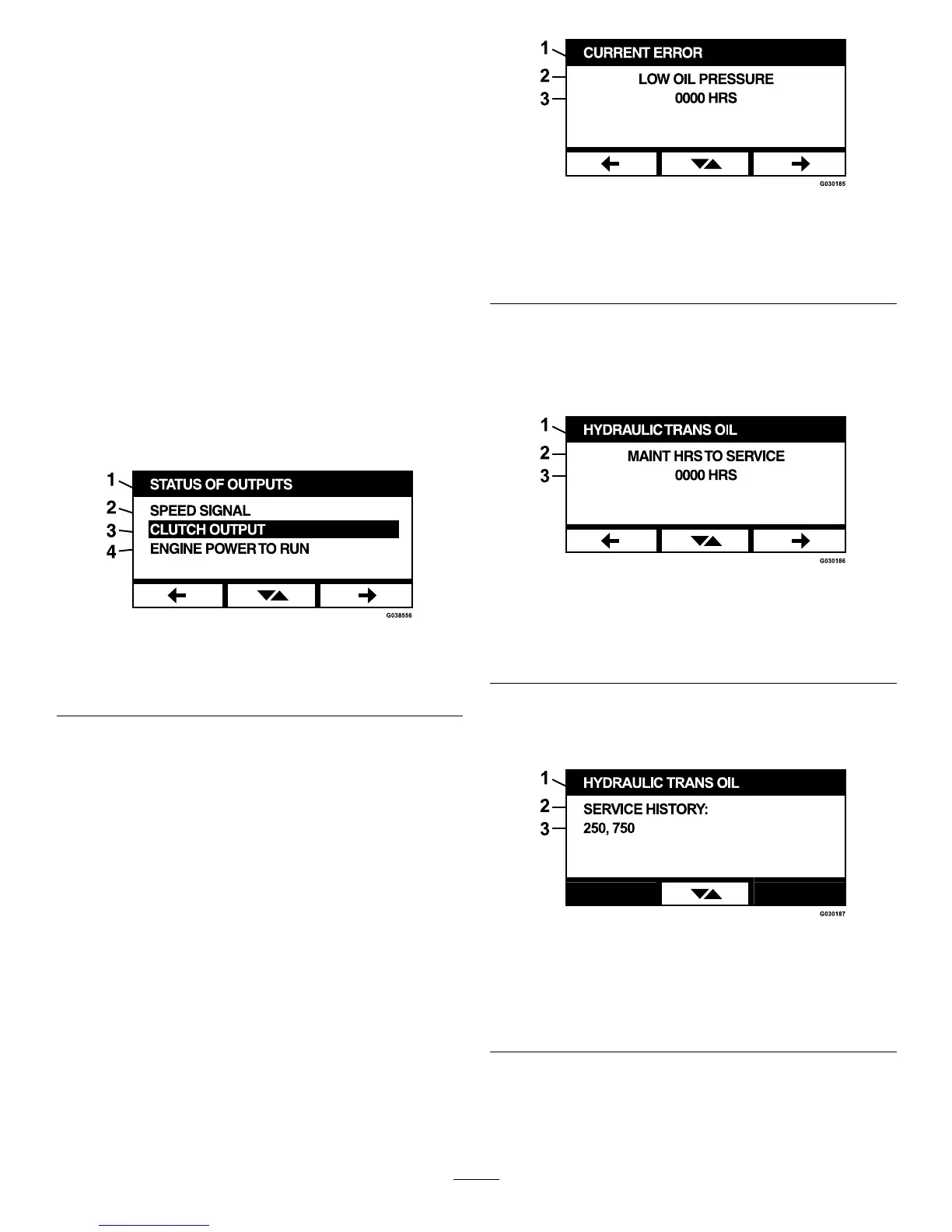

StatusofOutputs
Thisscreenlistsalloftheoutputsfromthesystem
andhighlightswhichoneiscurrentlyactive.Outputs
withnumericalvaluesdisplaythecurrentvalue.
g038556
Figure23
1.StatusofOutputs3.ClutchOutput
2.SpeedSignal
4.EnginePowertoRun
ThefollowingarealistofitemsavailableintheStatus
ofOutputsscreen:
•Enginespeedsignalshowsvoltagesignalsent
fromthesystemtotheengineECU(Engine
ControlUnit).
•PTOoutput(highlightsifon)
•Engineshutdownoutput(highlightsifon)
•Modulecommunication(highlightsifLDUand
MCUarecommunicating)
•Alarm(highlightsifon)
•Starter(highlightsifon)
CurrentErrorMessages
Thisscreendisplaysthecurrenterrorastextwiththe
enginehoursatwhichtheerroroccurred.Thetoggle
buttonallowsyoutoscrollbetweenscreensifmultiple
errorsareactive.Ifonly1erroroccurs,thetoggle
buttondoesnotchangescreens.
g030185
Figure24
1.CurrentError
2.Errordisplay(e.g.,LowOilPressure)
3.Enginehourswhentheerroroccurred
HydraulicTransOil
Thisservicereminderscreendisplaysthehoursuntil
thehydraulictransmissionoilmaintenanceisdue.
g030186
Figure25
1.HydraulicTransOil
2.Reminderdisplay
3.Enginehoursremaininguntiltheserviceisdue
Pressthetogglebuttontoalsodisplaytheengine
hoursatwhicheveryservicereminderresetwas
performed.
g030187
Figure26
1.HydraulicTransOil
2.ServiceHistorydisplay
3.Servicereminderresetwasperformed(e.g.,250and750
enginehours)
10
