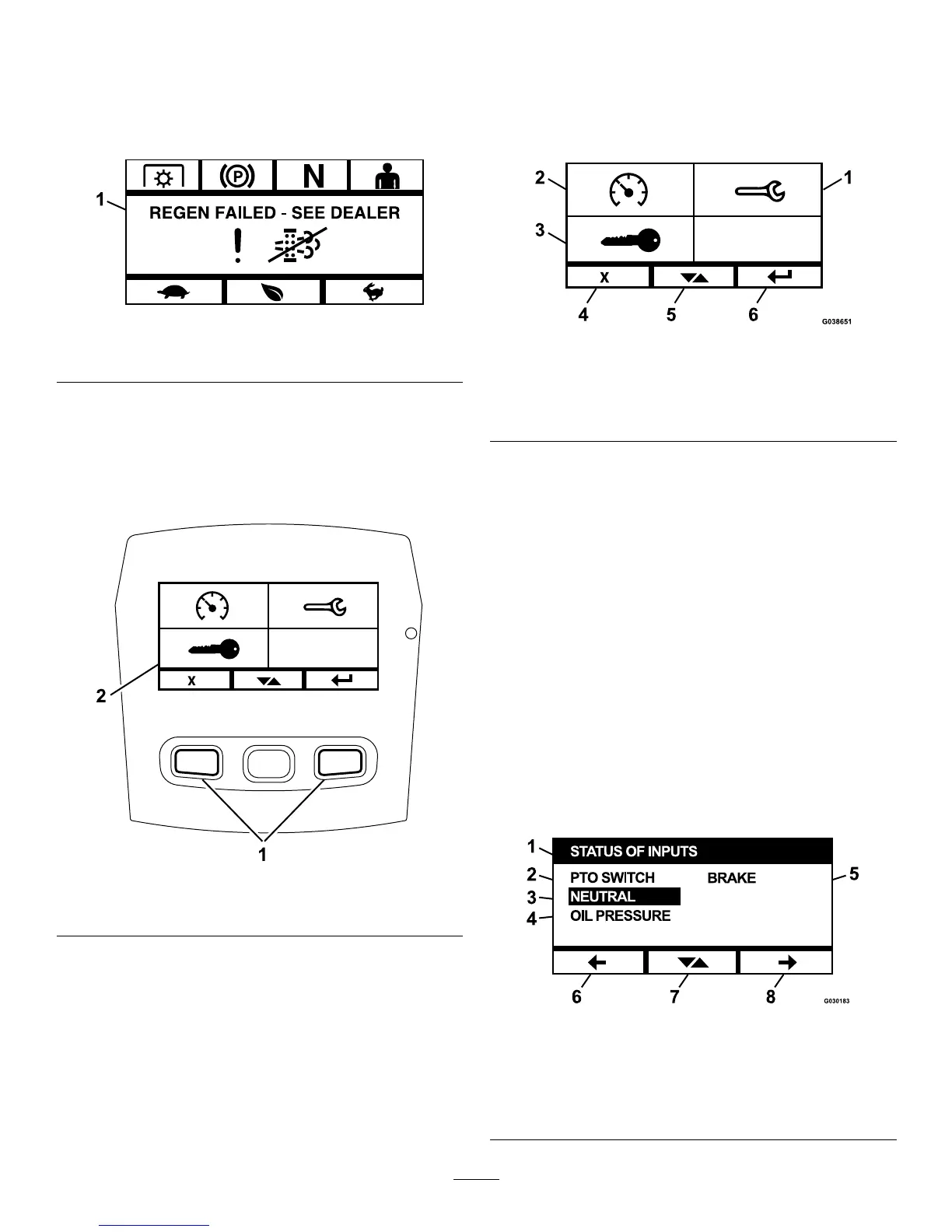

–Failed—iftheengineECUdetermines
thatarecoveryregenerationcannot
becompleted,themoduledisplays
theRegenFailed—SeeDealerscreen
(Figure19).T akethemachinetoan
AuthorizedServiceDealer.
g216680
Figure19
1.RegenFailed—SeeDealer
MenuSelectionScreen
TheMenuSelectionScreendisplayswhenyouplace
themotion-controlleversintheNEUTRAL-LOCKposition
andpressandholdthe2outsideLDUbuttons.
g228165
Figure20
1.Outsidebuttons
2.Menuselectionscreen
TheMenuSelectionScreenallowsyoutocycle
throughthedifferentmenuoptionsbypressingthe
togglebutton.Whenthedesiredmenuoptionis
highlighted,presstheenterbuttontoselectit.
Note:Allmenuoptionsarelockedifthe
motion-controlleversarenotintheNEUTRAL-LOCK
position.
Pressandholdthe2outsidebuttonstoreturntothe
defaultscreen.
Themenuselectionscreenallowsyoutocycle
throughthefollowingscreens.
•MaintenanceandServiceMenu(page9)
•GaugesandMetersMenu(page12)
•AdvancedSettingsMenu(page14)
g038651
Figure21
1.MaintenanceandService4.Cancel/Exit
2.GaugesandMeters
5.Togglebetweenscreens
3.AdvancedSettings6.Enter/Return
MaintenanceandServiceMenu
Youcanscrollbetweenthefollowingscreensinthe
MaintenanceandServicemenu:
•StatusofInputs(page9)
•StatusofOutputs(page10)
•CurrentErrorMessages(page10)
•HydraulicTransOil(page10)
•EngineOil(page11)
•MachineInformation(page11)
•ModuleInformation(page11)
StatusofInputs
Thisscreenlistsalloftheinputstothesystemand
highlightswhichiscurrentlyactive.Inputswith
numericalvaluesdisplaythecurrentvalue.
g030183
Figure22
1.StatusofInputs
5.Brake
2.PTOSwitch
6.Previous
3.Neutral7.Togglebetweenscreens
4.OilPressure
8.Next
9
