timecancelstheprocessandprompts
youtoengagetheparkingbrakeand
movethemotion-controlleverstothe
NEUTRAL-LOCKposition(Figure14).
g216674

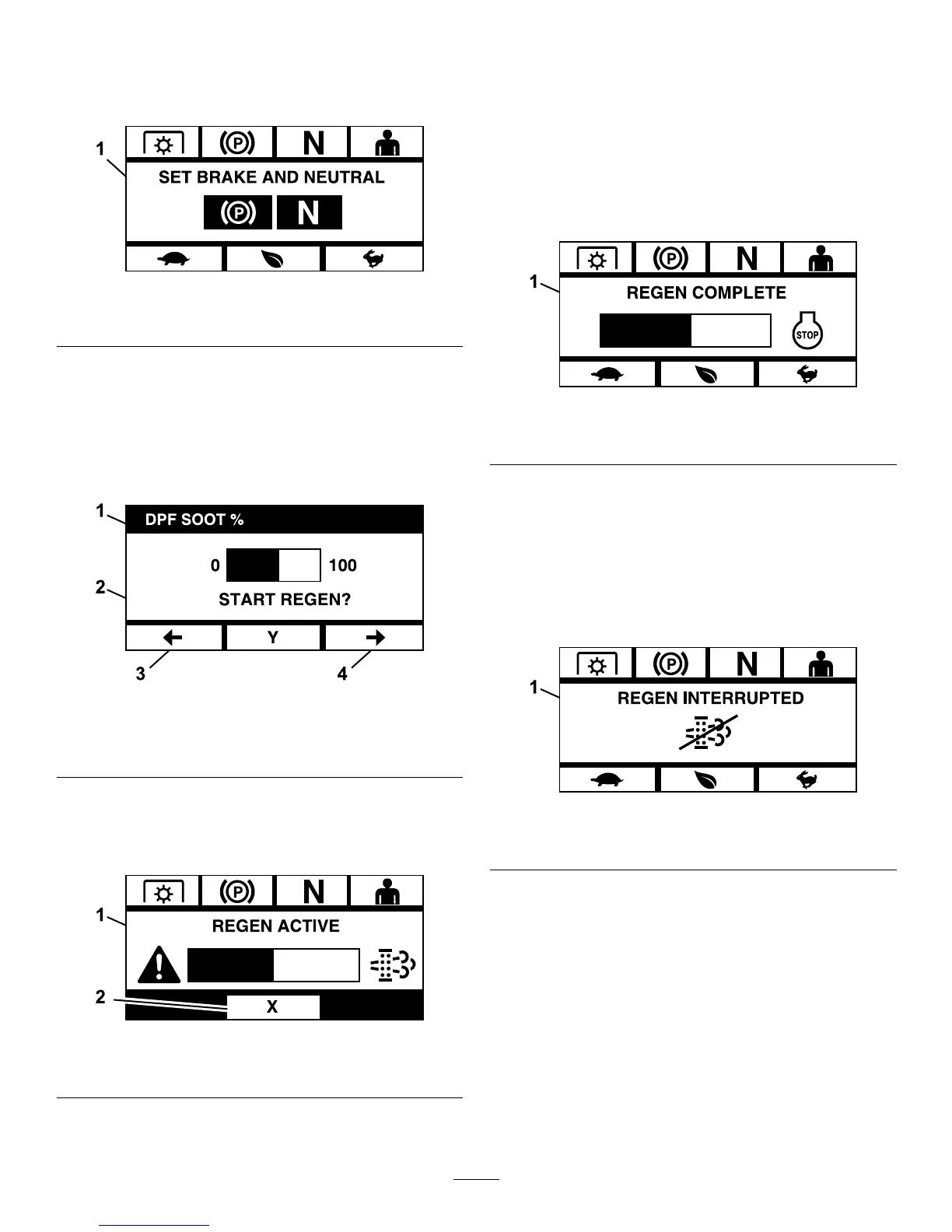

Figure14
1.Setbrakeandneutral
C.Ensurethatthebladesaredisengaged.
D.Ensurethatthemachinehasatleast1/4
tankoffuel.
E.SelectY(yes)fromtheStartRegen
screentoconrmtheregeneration
process(Figure15).
g217322
Figure15
1.DPFSoot%
3.Previous
2.StartRegen?
4.Next
Theregenerationprocessbeginsandthe
moduledisplaystheRegenActivescreen
(Figure16).Pressingthecancelbutton
cancelstheprocess.
g216678
Figure16
1.RegenActive
2.Cancel
Oneof3outcomesresult:
–Complete—iftheprocesscompletes
successfully,themoduledisplaysthe
RegenCompletescreen(Figure17).
Itincludesa5-minutecountdownbar
graph.
Note:Ifyoutakenoactionandthe
5-minutecountdowntimeronthescreen
expires,theengineshutsoff.
g216679
Figure17
1.RegenComplete
–Interrupted—ifyouinterruptthe
process,themoduledisplaystheRegen
Interruptedscreen(Figure18).
Ifyouinitiatedtheprocess,themodule
exitstheprocess.Iftheprocesswas
initiatedbytheengineECU,theECU
placestheengineinlimpmodeand
requestsarecoveryregeneration.
g216681
Figure18
1.RegenInterrupted
8
