MaintenanceandServiceMenubyselecting
Yesattheprompt.
g217322

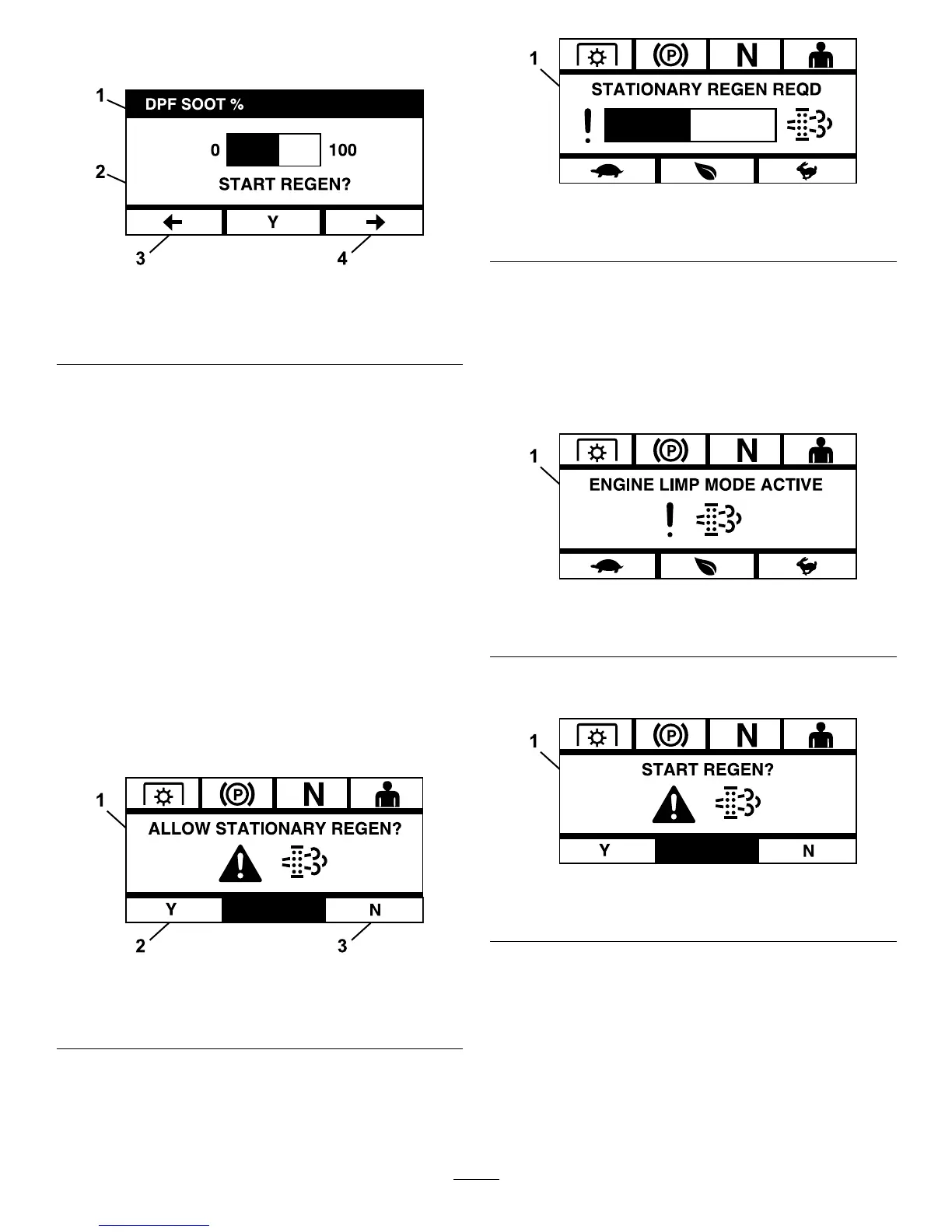

Figure9
1.DPFsootpercentage3.Previous
2.StartRegen
4.Next
Important:Duringastationaryregeneration,
ensurethatthemachineisparkedona
hard,levelsurfaceinawell-ventilatedarea.
Thisprocessrunsthemachineatahigher
exhausttemperatureforapproximately30
minutestoburnoffcollectedparticulatein
theDPF.
Note:Youcannotusethemachineduringa
stationaryregeneration.
WhentheengineECUdeterminesthata
stationaryregenerationisrequired,themodule
displaystheAllowStationaryRegen?prompt
screen.SelectY(yes)tostartthestationary
regenerationprocessorN(no)todelaythe
process.
Ensurethatthemachinehasatleast1/4
tankoffuel.Disengagetheblades,movethe
motion-controlleverstotheNEUTRAL-LOCK
position,andengagetheparkingbrake.
g216640
Figure10
1.AllowStationaryRegen
3.No
2.Yes
•IfyouselectN(no),themoduledisplaysa
120-minutecountdownbargraphscreen.
g216641
Figure11
1.StationaryRegenRequired
Ifyoudonotperformastationary
regenerationbeforethetimerexpires,the
engineentersalimpmodeandtheengine
ECUwillrequirearecoveryregenerationto
beperformed.Whenthemoduleindicates
thattheenginehasenteredlimpmode,the
enginespeedand/orpowerisreducedandit
preventsclutchengagement.
g216677
Figure12
1.EngineLimpModeActive
•IfyouselectY(yes),themodulepromptsyou
tostarttheregenerationprocess(Figure13).
g216675
Figure13
1.StartRegen
A.Shutofftheengineandwaitforall
movingpartstostop.Ensurethatthe
machineisonalevelsurface.
B.Movethecontrolleverstotheneutral
lockpositionandengagetheparking
brake.
Note:Disengagingtheparkingbrake
ormovingthemotion-controllevers
fromtheNEUTRAL-LOCKpositionatany
