Toro 74388 - Starting the Engine

G014474
1
2
3
4
5
6

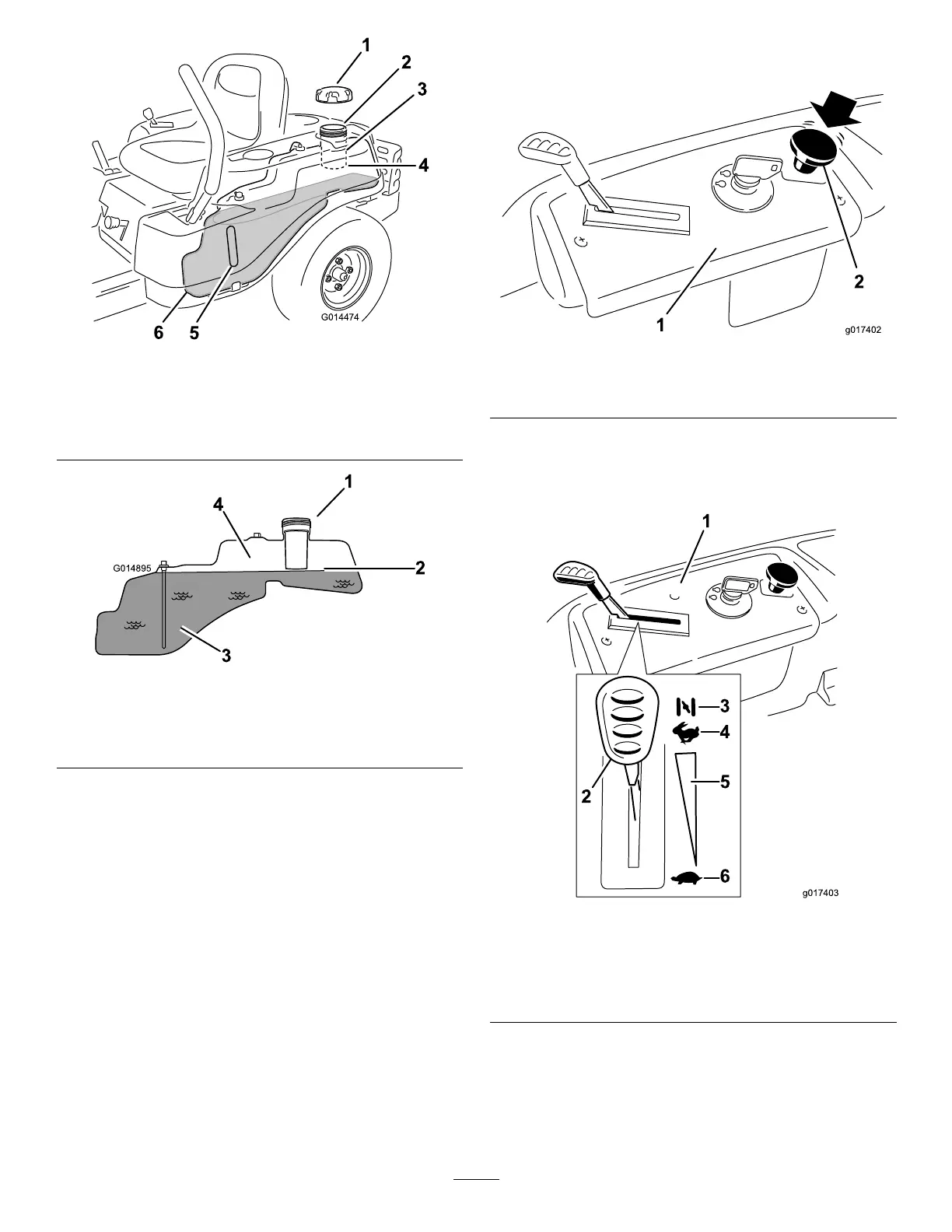

Figure9
1.Fueltankcap
4.Baseofllerneck,DO
NOTFILLPASTHERE
2.Fillopening5.Fuelwindow
3.Fillerneck
G014895
1
2
3
4
Figure10
1.Fillopening3.Fuel
2.Baseofllerneck,DO
NOTFILLPASTHERE
4.Emptyspaceforfuel
expansion.
Important:DoNotoverllfueltank.Fillthe
fueltanktothebottomofthellerneck.The
emptyspaceinthetankallowsthefueltoexpand.
Overllingmayresultinfuelleakageordamage
totheengine.
3.Installthefueltankcapsecurelyandtightenuntilit
“clicks”.Wipeupanygasolinethatmayhavespilled.
CheckingtheEngineOilLevel
Beforeyoustarttheengineandusethemachine,checktheoil
levelintheenginecrankcase;refertoCheckingtheOilLevel
intheEngineMaintenancesection.
StartingtheEngine
1.Sitdownontheseatandmovethemotioncontrols
outwardtotheparkposition.
2.Disengagethebladesbymovingthebladecontrol
switchtoOff(Figure11).
Figure11
1.Controlpanel2.Bladecontrolswitch—Off
position
3.MovethethrottlelevertoChokebeforestartingacold
engine(Figure12).
Note:Awarmorhotenginemaynotrequirechoking.
Figure12
1.Controlpanel
4.Fast
2.Throttle/choke
lever—chokeposition
5.Continuousvariable
setting
3.Choke6.Slow
4.TurntheignitionkeytoStarttoenergizethestarter.
Whentheenginestarts,releasethekey(Figure13).
Important:Donotengagethestarterformore
than10secondsatatime.Iftheenginefailsto
start,allowa60secondcool-downperiodbetween
14
