3.Cleanthegreasettings(Figure25andFigure26)with
arag.Makesuretoscrapeanypaintoffofthefront
ofthetting(s).
1
G014522

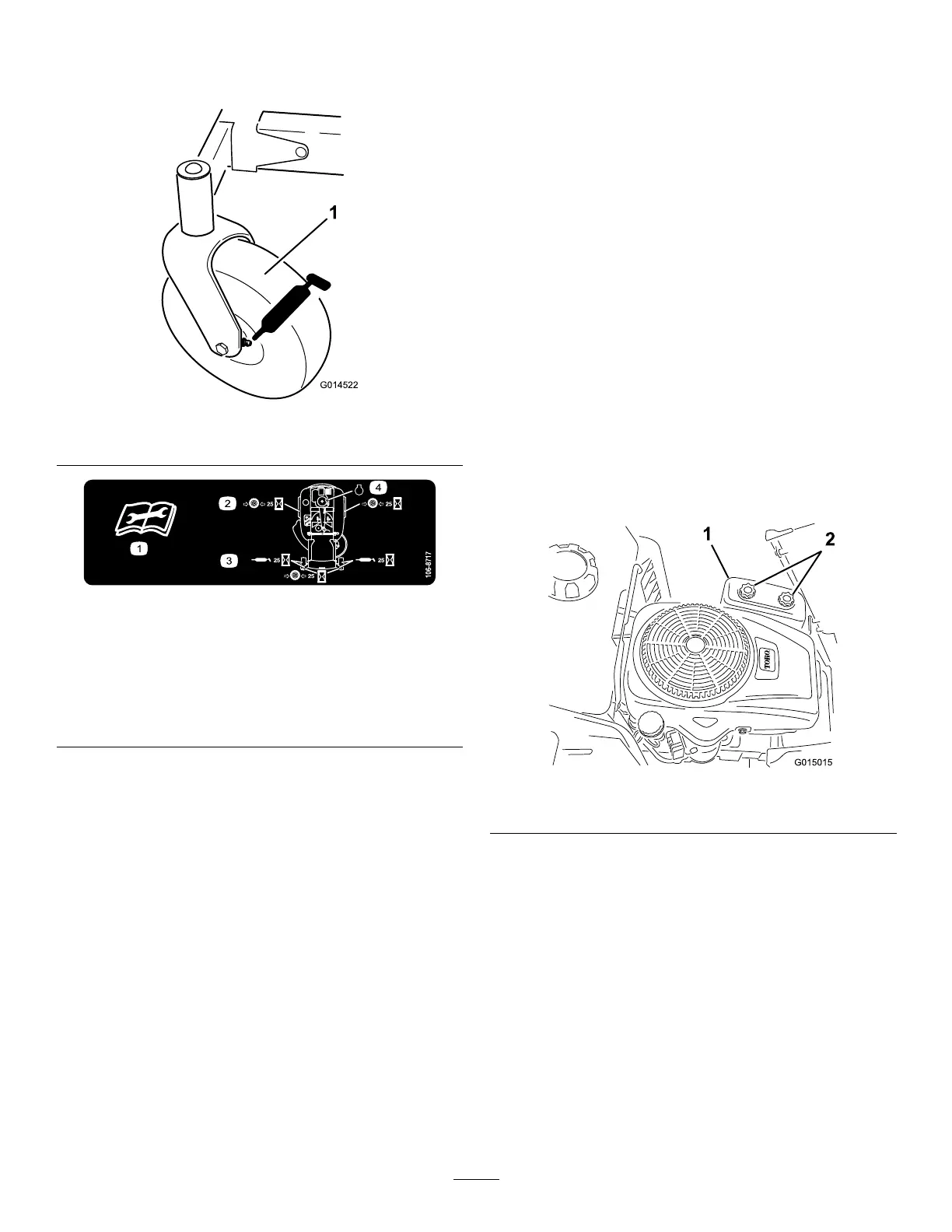

Figure25
1.Frontcastertire
Figure26
Locatedontheseatpanunderside
1.Readtheinstructions
beforeservicingor
performingmaintenance.
3.Greaseevery25operating
hours.
2.Checktirepressureevery
25operatinghours.
4.Engine
4.Connectagreaseguntoeachtting(Figure25and
Figure26).Pumpgreaseintothettingsuntilgrease
beginstooozeoutofthebearings.
5.Wipeupanyexcessgrease.
EngineMaintenance
ServicingtheAirCleaner
ServiceInterval:Beforeeachuseordaily—Cleanandcheck
theaircleanerfoamelement.
Every50hours—Replacetheaircleanerpaper
element.
Note:Servicetheaircleanermorefrequentlyiftheoperating
conditionsareextremelydustyorsandy.
RemovingtheFoamandPaper
Elements
1.Disengagethebladecontrol(PTO).
2.Stoptheengine,waitforallmovingpartstostop,and
removethekeybeforeleavingtheoperatingposition.
3.Cleanaroundtheaircleanertopreventdirtfrom
gettingintotheengineandcausingdamage.
4.Removetheaircleanercoverbyunscrewingthe2
knobs(
Figure27).
Figure27
1.Aircleanercover2.Knobs
5.Carefullyremovethefoamandpaperlterelements
fromtheaircleanerhousing(
Figure28).
